Connect to Power
Procedure

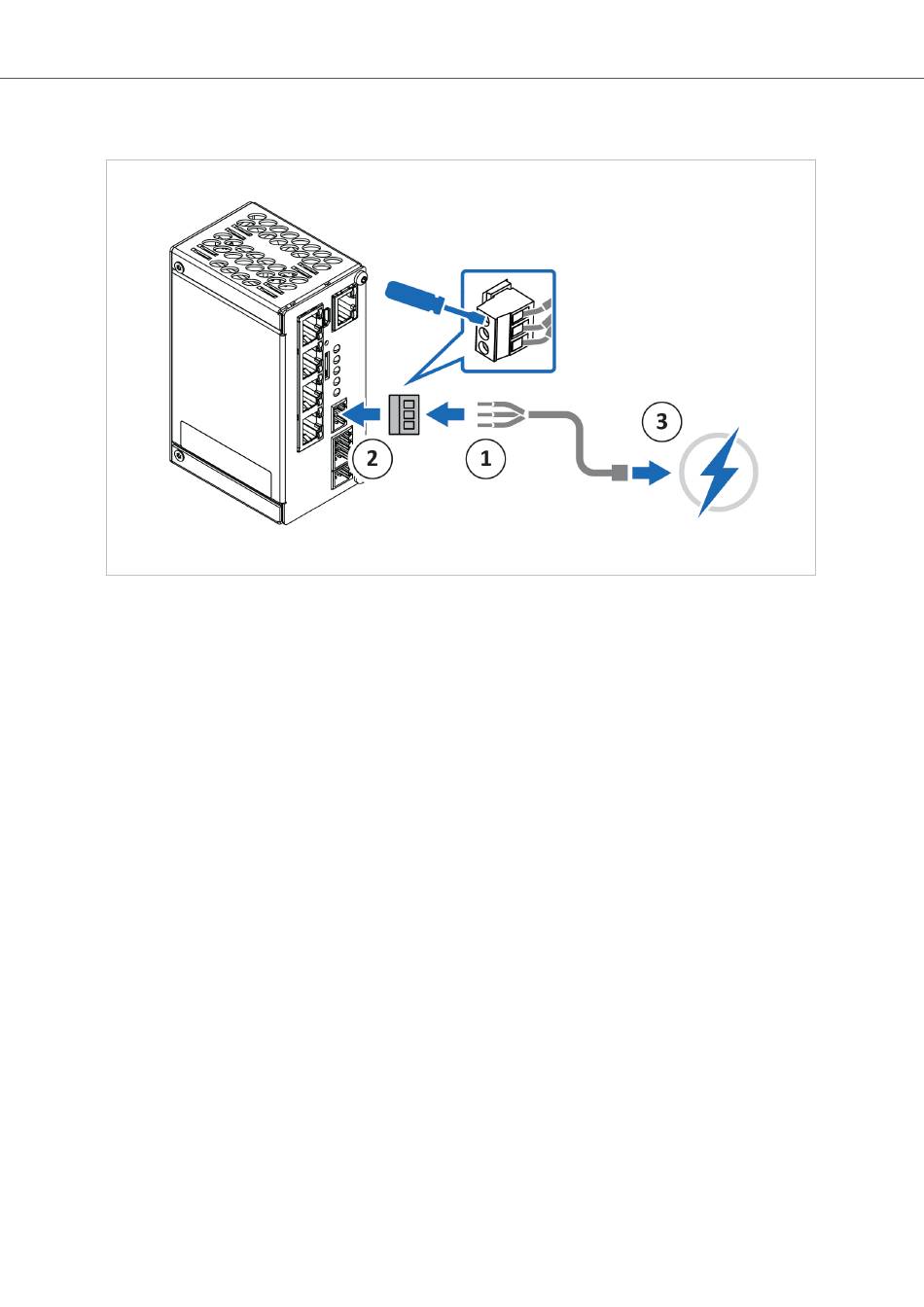

Figure 4. Connect to power
1.
Insert the cable wires to the terminal block and tighten the wire clamp screws.
2.
Connect the terminal block to the Tunnel Gateway.
3.
Connect the Tunnel Gateway to a power supply.
4.
Turn on the power supply.
SCM-1202-233 Version 1.0
®
