Installation

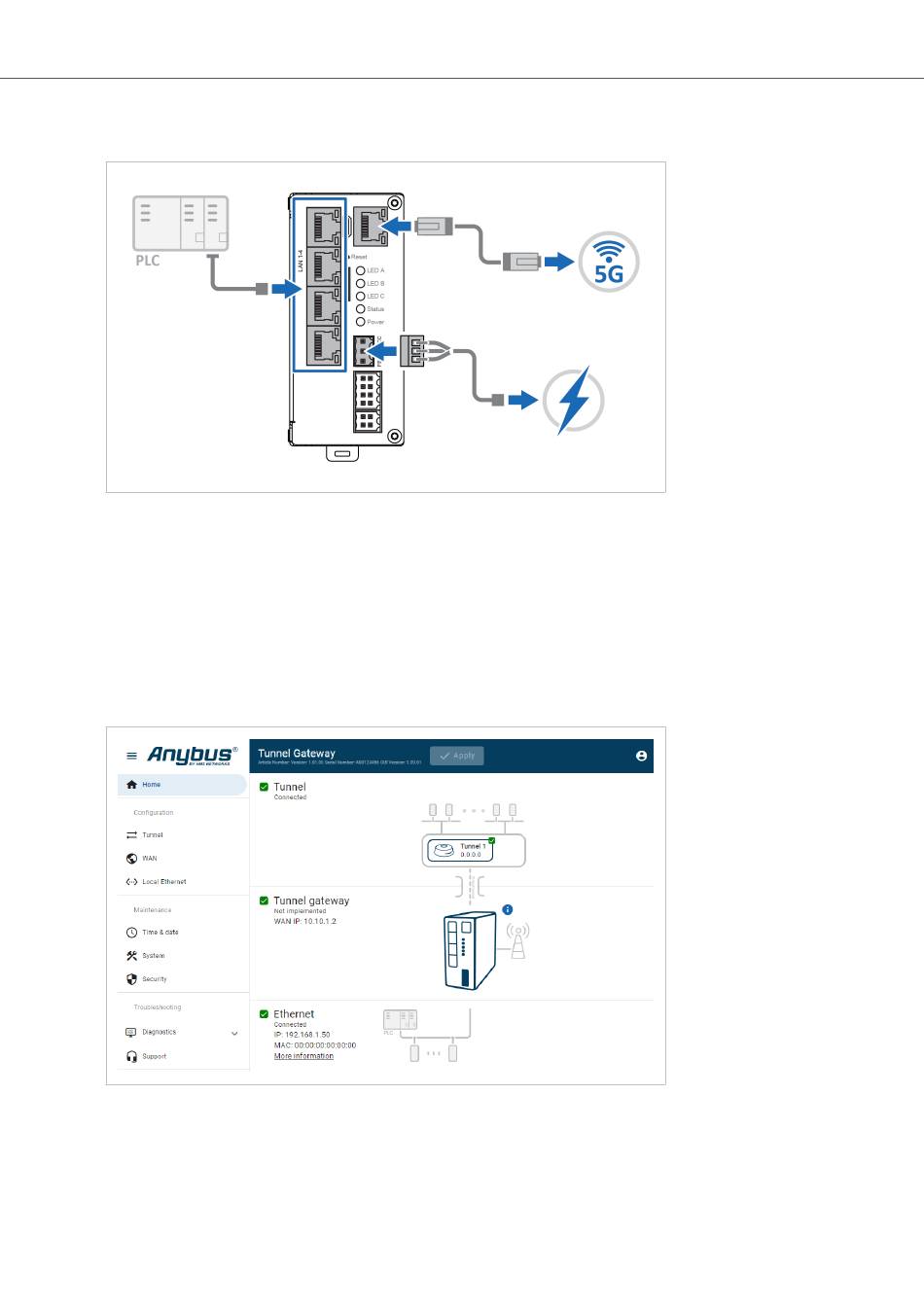

Figure 13. Connect the Tunnel Gateway
Procedure
1.
Connect the Tunnel Gateway to power, see
2.
Connect the Tunnel Gateway to your 5G core network, see
3.
Connect your Ethernet device(s)—in this example, a PLC—to the Tunnel Gateway, see
Devices (page
7).
Verify Connection
Figure 14. Example, tunnel status connected
On the Home page, you can view the connection status.
To verify the tunnel connectivity, see
Page 18 of 45
Connect to Power (page
Connect to 5G Core (5GC) Network (page
Verify Operation (page
23).
Setup Virtual Tunnel
8).
Connect Ethernet
SCM-1202-233 Version 1.0
6).
