Installation
4. Installation
4.1. DIN Rail Mounting
Before You Begin
IMPORTANT
The equipment must be electrically grounded through the DIN rail for EMC compliance. Make sure
that the equipment is correctly mounted on the rail and that the rail is properly grounded.
Have a flat-blade screwdriver, size 5.5 mm, available.
Procedure

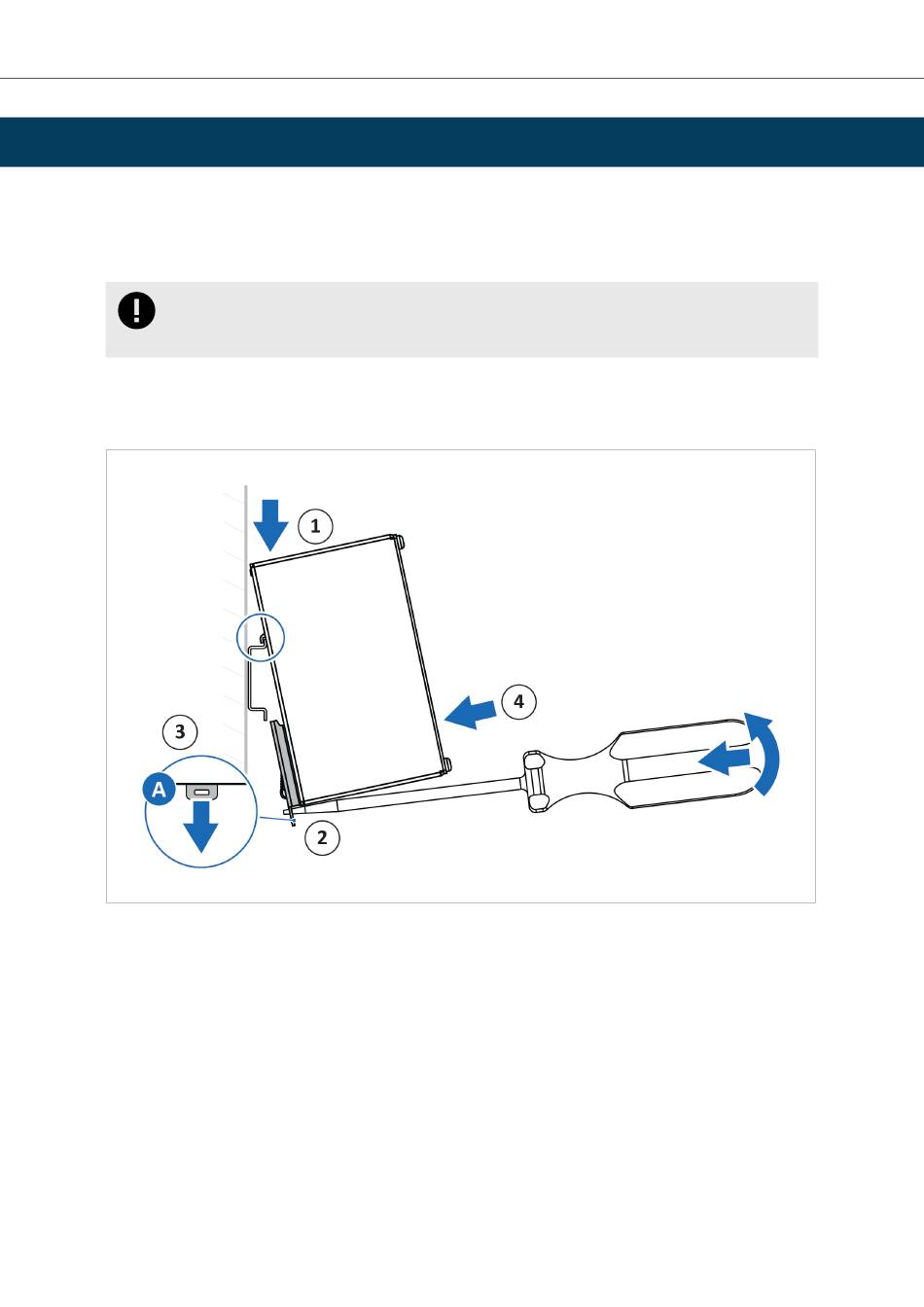

Figure 1. Attach the Tunnel Gateway on the DIN rail
To attach the Tunnel Gateway on the DIN rail:
1.
Insert the upper end of the DIN rail clip into the DIN rail.
2.
Insert the screwdriver into the DIN rail clip tab A.
3.
Pull and hold the DIN rail clip tab A downwards.
4.
Push the bottom of the DIN rail clip into the DIN rail.
SCM-1202-233 Version 1.0
®
Anybus
Tunnel Gateway
Page 5 of 45
