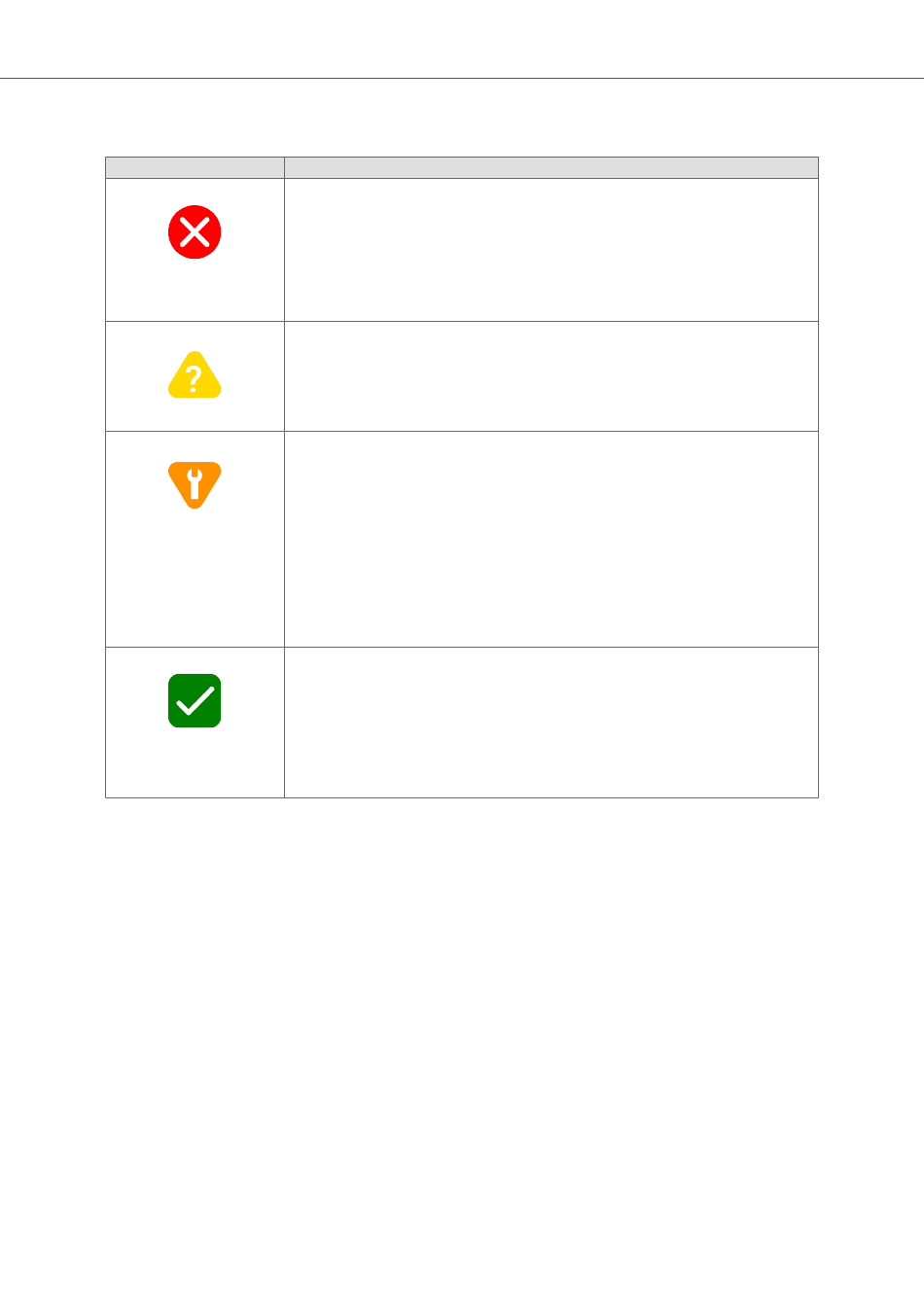

Status Symbols
Symbol
Page 24 of 45
Description
Internal error has occurred, and operation cannot be guaranteed.
Examples for Run Time System:
• Could not initialize WLAN device management control: Could not add device management data point
wlan-station/rssi: Endpoint receive operation timed out (-32603).
• Could not initialize SystemInfo Managment Control: SystemInfo: Error (-32603) adding data point system :
os, Endpoint receive operation timed out.
• Could not initialise Device Manager Control: Update DevMgmCtrl: Error (-32603) adding data point
update : counter, Endpoint receive operation timed out.
Out of Specification.
• Power fail handling not supported.
• Could not load and start program.
Alerts for Cable replacement, Client:
• The unit is in idle state, waiting for an event.
• The unit is inactive.
• The unit is disconnected.
• The unit is restarting.
• Incorrect password is detected.
Alerts for Access point and Cable replacement, Access point:
• The unit is disabled.
Normal operation.
Cable replacement, Client:
• The unit is connected.
• The unit is scanning.
Access point and Cable replacement, Access point:
• The unit is enabled.
• The unit is connected to Ethernet network.
