Installation Sheet for INMBSMEBxxx0100
xxx stands for the gateway capacity and varies depending on the specific gateway
purchased.
Version: 1.0.0
Owner's record
Find the serial number on the silver label on the right side of the gateway. For sales
or technical assistance, we recommend writing it in the space below:
SN:
Safety Information
Follow these instructions carefully. Improper work may seriously harm
your health and damage the gateway and/or any other equipment
connected to it.
Only technical personnel, following these instructions and the country legislation for
installing electric equipment, can install and manipulate this gateway.
Install this gateway indoors, in a restricted access location, avoiding exposure to
direct solar radiation, water, high relative humidity, or dust.
All wires for communication and power supply (if needed) must only
be connected to networks without routing to the outside plant. All
communication ports are considered for indoor use and must only be
connected to SELV circuits.
Mount the gateway, preferably, on a DIN rail inside a grounded metal cabinet
following the instructions below.
In the case of wall mounting, firmly fix the gateway on a non-vibrating surface
following the instructions below.
Disconnect power wires before manipulating and connecting them to the gateway.
Use SELV-rated NEC class 2 or limited power source (LPS) power supply.
Supply the correct voltage to power the gateway. See the Technical Specifications
table at the end of this document.
Respect the expected polarity of power (if needed) and communication cables when
connecting them to the gateway.
This gateway is designed for installation inside an enclosure. When working inside
an enclosure (ex. to make adjustments, set switches, etc.) observe the common
antistatic precautions before manipulating the gateway.
Take precautions when installing it outside an enclosure, in environments with static
levels above 4 kV, to avoid electrostatic discharges.
For safety instruction in other languages, see
https://intesis.com/docs/manuals/v6-safety
Configuration
Use the Configuration tool to configure the gateway.
1.
See instructions on how to download and install the latest version at:
https://www.intesis.com/products/intesis-maps.
2.
Use the Ethernet port to connect the gateway to a PC running the Configuration
tool. For more info, refer to the
User
manual.
© HMS Industrial Networks SLU | www.hms-networks.com
Installation Sheet | Publication date: 2023-06-07

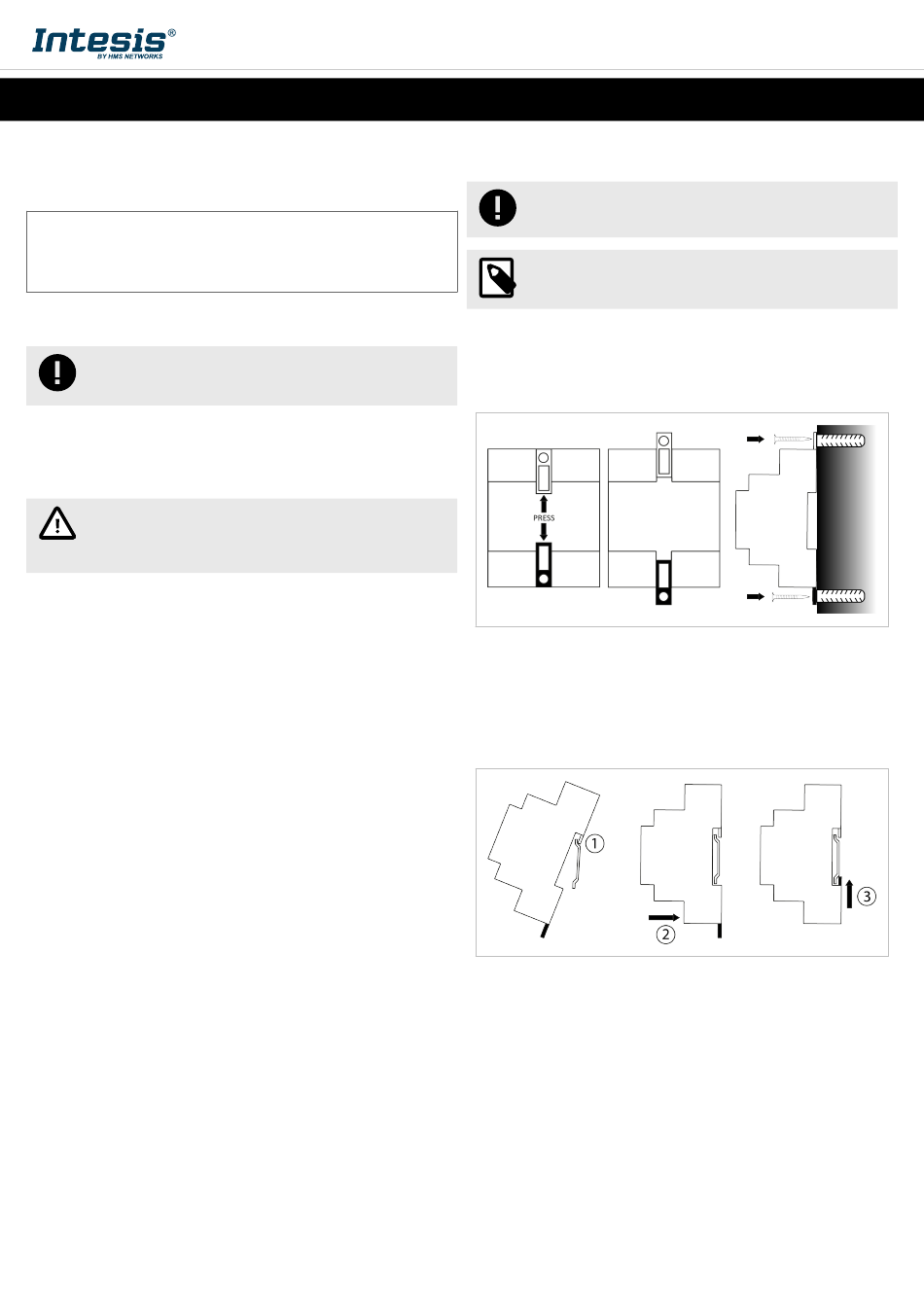

Mounting
Do not mount the gateway in air-handling units or conducts.
DIN rail mounting inside a grounded metallic cabinet is
recommended.
Wall mounting
1.
Press the rear panel clips until you hear a click.
2.
Use the clip holes to screw the gateway to the wall.
3.
Make sure the gateway is firmly fixed.
DIN rail mounting
Keep the top side clip in its original position.
1.
Insert the gateway in the upper edge of the DIN rail.
2.
Fit the low side of the gateway in the DIN rail.
3.
Push the bottom clip back to its original position, locking the gateway to the rail.
4.
Make sure the gateway is firmly fixed.
