Mounting the sensor

WARNING
L
Risk of injury when mounting sensors and strapping bands!
‣
Suitable gloves and goggles must be worn due to the increased risk of cuts.
Sensor configuration and settings
DN 15 to 65 (½ to 2½")
Strapping band
2 traverses
[mm (in)]
1)
Sensor distance Sensor distance
– Wire length →  38
1) Depends on the conditions at the measuring point (e.g. measuring pipe, medium). The dimension can be
determined via FieldCare or Applicator. See also Result sensor distance / measuring aid parameter in
Measuring point submenu
2) Up to DN 600 (24")
Determining the mounting positions of the sensor
Sensor holder with U-shaped screws )
Can be used for
• Measuring devices with measuring range DN 15 to 65 (½ to 2½")
• Mounting on pipes DN 15 to 32 (½ to 1¼")
Procedure:
1. Disconnect the sensor from the sensor holder.
2. Position the sensor holder on the measuring pipe.
3. Insert the U-shaped screws through the sensor holder and lightly grease the threads.
4. Screw the nuts onto the U-shaped screws.
5. Position the sensor holder exactly and tighten the nuts evenly.

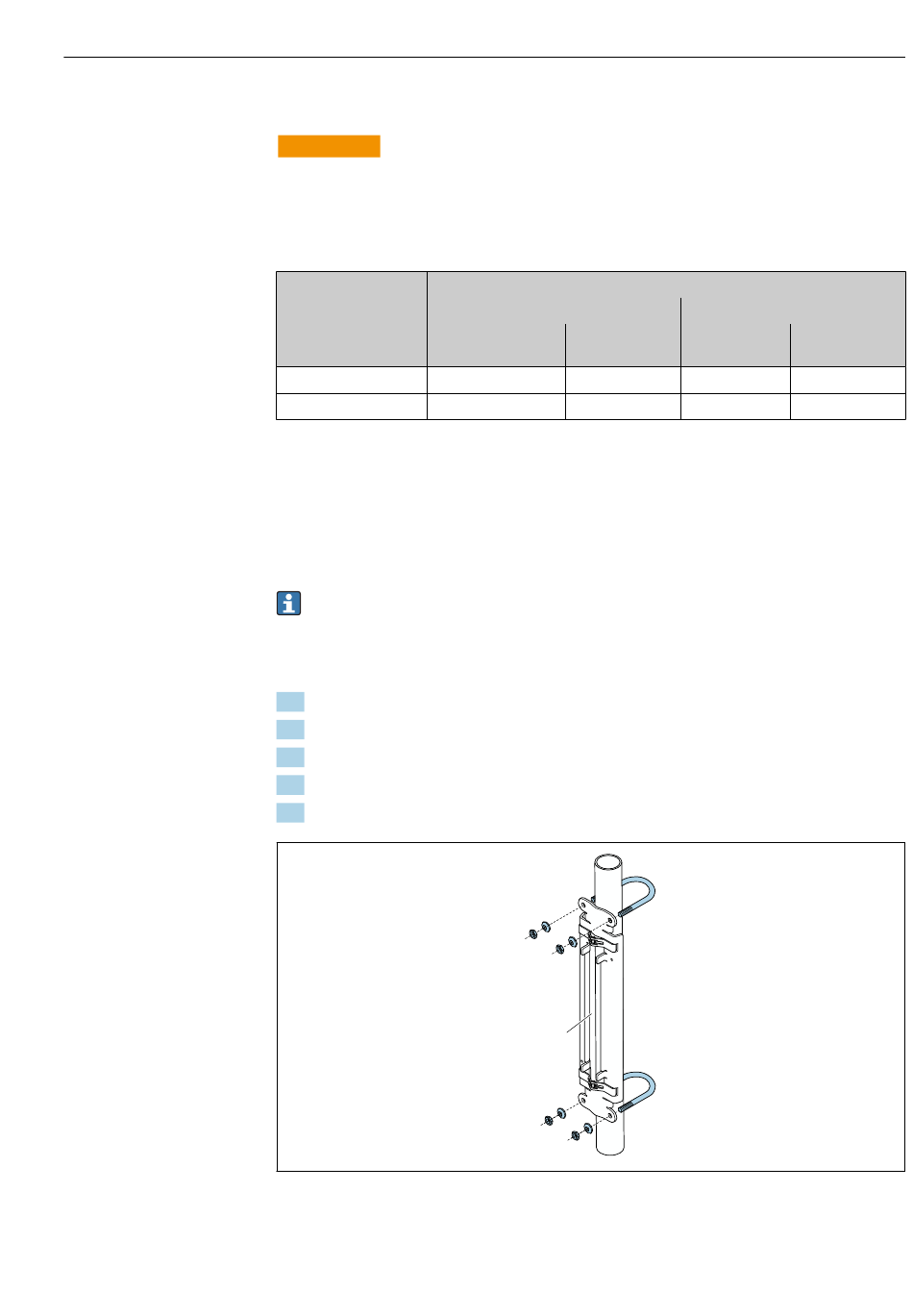

 16 Holder with U-shaped screws
1 Sensor holder
DN 50 to 4000 (2 to 160")
Strapping band
1 traverse 2 traverses
[mm (in)] [mm (in)]
1)
Sensor distance
Measuring rail
1
Mounting procedure
Welded bolt
1 traverse 2 traverses
[mm (in)] [mm (in)]
1) 1)
Sensor distance Sensor distance
1) 2)
Wire length Measuring rail
1)
1) 2)
A0043369
