Mounting procedure
38
Procedure with a tape measure:
1. Use a tape measure to determine the pipe diameter d.
2. Mount the opposite mounting bolt at d/2 from the front mounting bolt. The distance
must be d/2 = d' / 2 on both sides.
3. Check distance B.


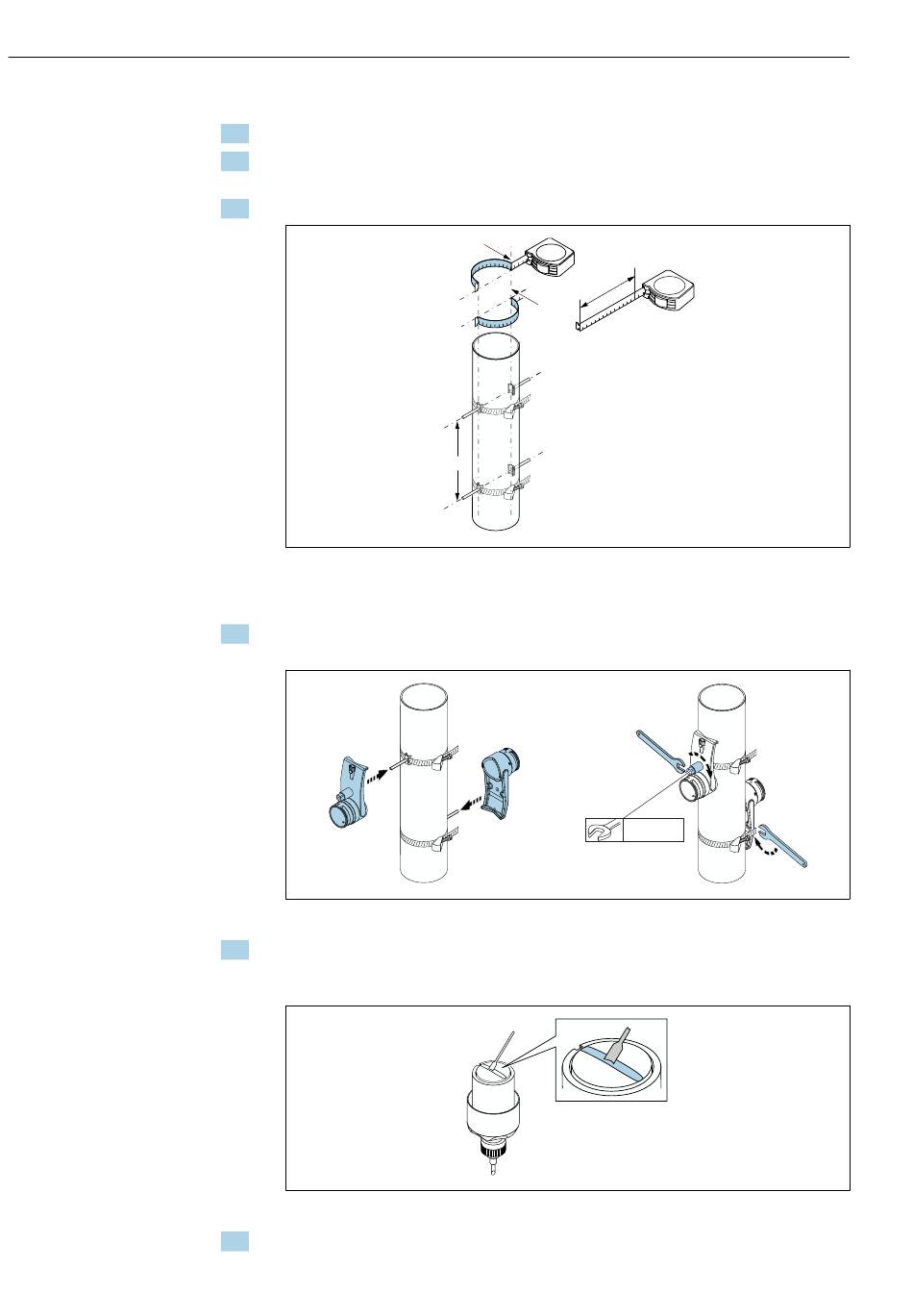

 28 Positioning the strapping bands and mounting bolts with a tape measure (steps 2 to 4)
Fastening the sensors:
1. Fit the sensor holders over the individual mounting bolts and tighten securely with
the locking nut.

 29 Mounting the sensor holders
2. Stick the coupling pad under the sensor →  172. Alternatively, coat the contact
surfaces of the sensor evenly with coupling gel (approx. 1 mm (0.04 in)). In doing so,
start from the groove through the center to the opposite edge.

 30 Coating the contact surfaces of the sensor with coupling gel (if there is no coupling pad)
3. Insert the sensor into the sensor holder.
