Endress+Hauser Proline Prosonic Flow W 400 Operating Instructions Manual page 21

Proline Prosonic Flow W 400 HART
Endress+Hauser
2 × DN
A
B
1
2
0...15 × DN
3
0...15 × DN

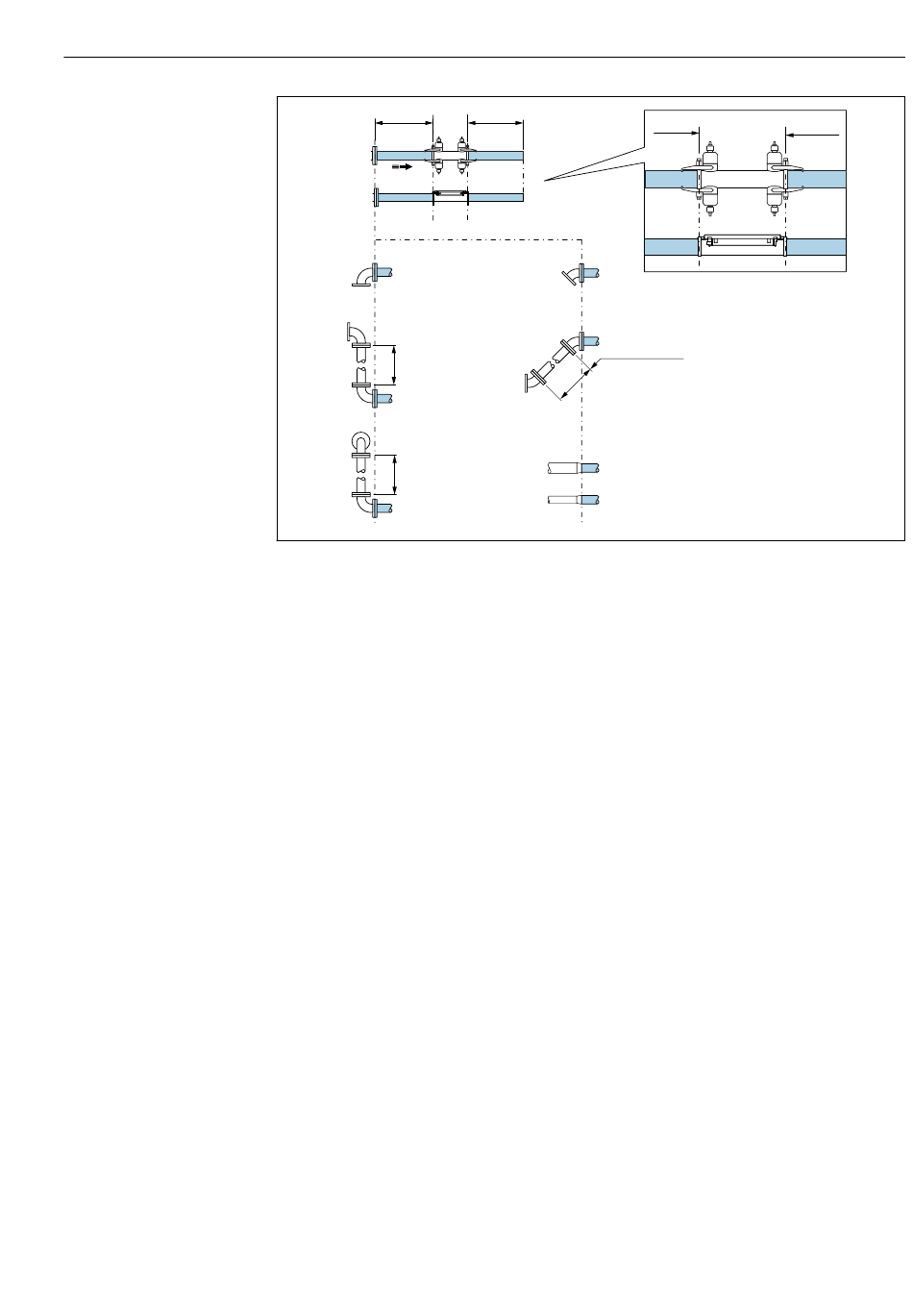

A Inlet and outlet runs DN 50 to 4000 (2 to 160")
B Inlet and outlet runs DN 15 to 65 (½ to 2½")
C Position of inlet and outlet runs on sensor
1 Single elbow
2 Double elbow (2 × 90° in the same plane, with 0 to 15 x DN between the elbows)
3 Double elbow 3D (2 × 90° in different planes, with 0 to 15 x DN between the elbows)
4 45° bend
5 "2 x 45° bend" option (2 × 45° in the same plane, with 0 to 15 x DN between the elbows)
6a Concentric diameter change (contraction)
6b Concentric diameter change (expansion)
Inlet and outlet runs without FlowDC
Minimum inlet and outlet runs without FlowDC with 1 or 2 sensor sets with different flow
obstructions
2 × DN
C
4
5
0...15 × DN
6
a
b
Mounting procedure
2 × DN
2 × DN
A0053788
21
