Proline Prosonic Flow W 400 HART
Endress+Hauser
1

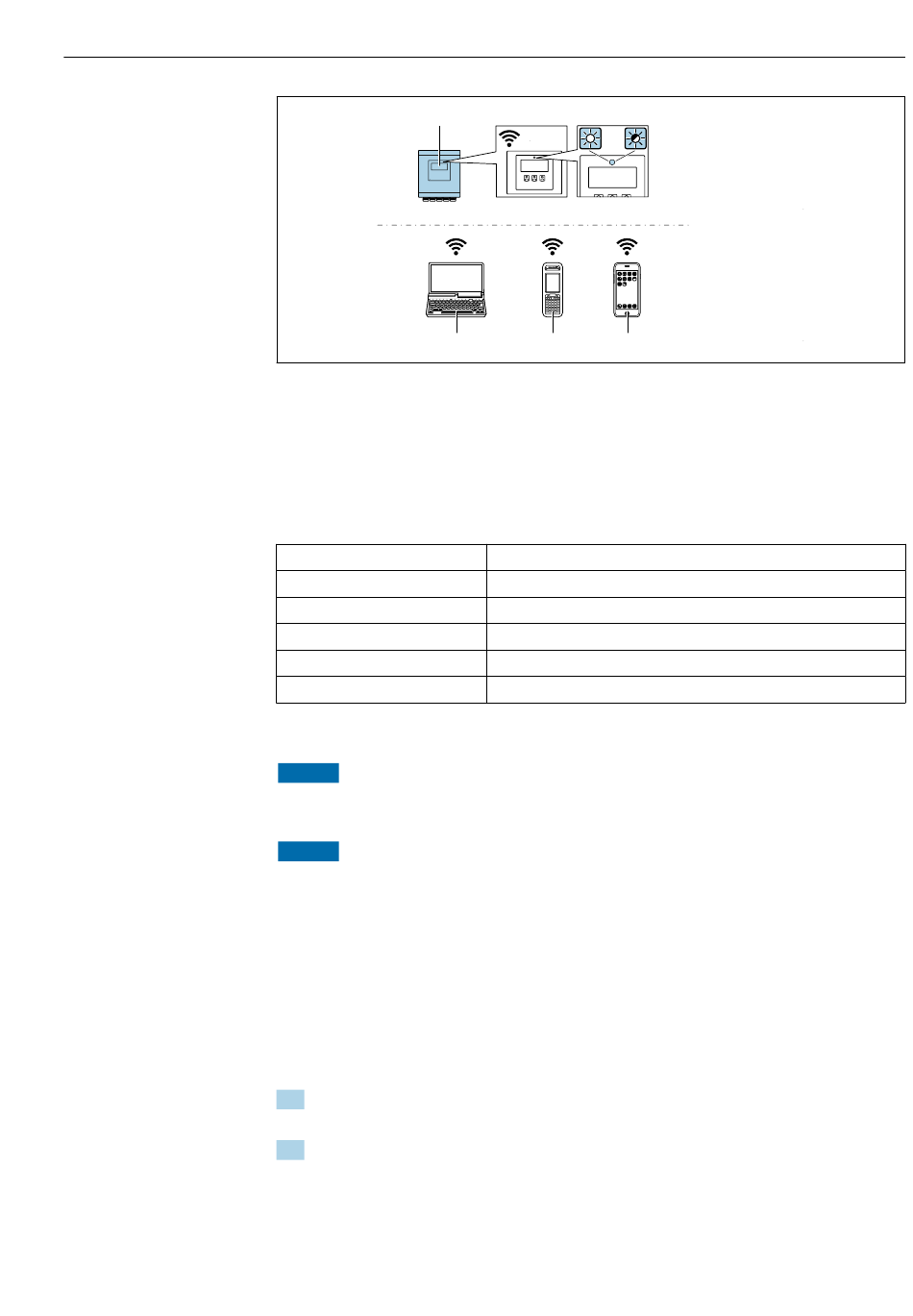

1 Transmitter with integrated WLAN antenna
2 LED lit constantly: WLAN reception is enabled on measuring device
3 LED flashing: WLAN connection established between operating unit and measuring device
4 Computer with WLAN interface and web browser (e.g. Microsoft Internet Explorer, Microsoft Edge) for
accessing the integrated device web server or with operating tool (e.g. FieldCare, DeviceCare)
5 Mobile handheld terminal with WLAN interface and web browser (e.g. Microsoft Internet Explorer, Microsoft
Edge) for accessing the integrated device web server or operating tool (e.g. FieldCare, DeviceCare)
6 Smart phone or tablet (e.g. Field Xpert SMT70)
Function
Encryption
Configurable WLAN channels
Degree of protection
Available antenna
Range
Configuring the Internet protocol of the mobile terminal
NOTICE
If the WLAN connection is lost during the configuration, settings made may be lost.
‣
Make sure that the WLAN connection is not disconnected while configuring the device.
NOTICE
Note the following to avoid a network conflict:
‣
Avoid accessing the measuring device simultaneously from the same mobile terminal
via the service interface (CDI-RJ45) and the WLAN interface.
‣
Only activate one service interface (CDI-RJ45 or WLAN interface).
‣
If simultaneous communication is necessary: configure different IP address ranges, e.g.
192.168.0.1 (WLAN interface) and 192.168.1.212 (CDI-RJ45 service interface).
Preparing the mobile terminal
‣
Enable WLAN on the mobile terminal.
Establishing a WLAN connection from the mobile terminal to the measuring device
1. In the WLAN settings of the mobile terminal:
Select the measuring device using the SSID (e.g. EH_Prosonic Flow_400_A802000).
2. If necessary, select the WPA2 encryption method.
2
4 5 6
WLAN: IEEE 802.11 b/g (2.4 GHz)
WPA2-PSK AES-128 (in accordance with IEEE 802.11i)
1 to 11
IP67
Internal antenna
Typically 10 m (32 ft)
