Operating frequency selection
The sensors of the measuring device are available with adapted operating frequencies. For
the resonance behavior of the measuring pipes, these frequencies are optimized for
different properties of measuring pipes (material, pipe wall thickness) and media
(kinematic viscosity). If these properties are known, an optimum selection can be made
according to the following tables
Measuring pipe material Nominal diameter of measuring
pipe
< DN 65 (2½")
Steel, cast iron
≥ DN 65 (2½")
< DN 50 (2")
Plastic
≥ DN 50 (2")
< DN 50 (2")
Glass-fiber reinforced
≥ DN 50 (2")
plastic

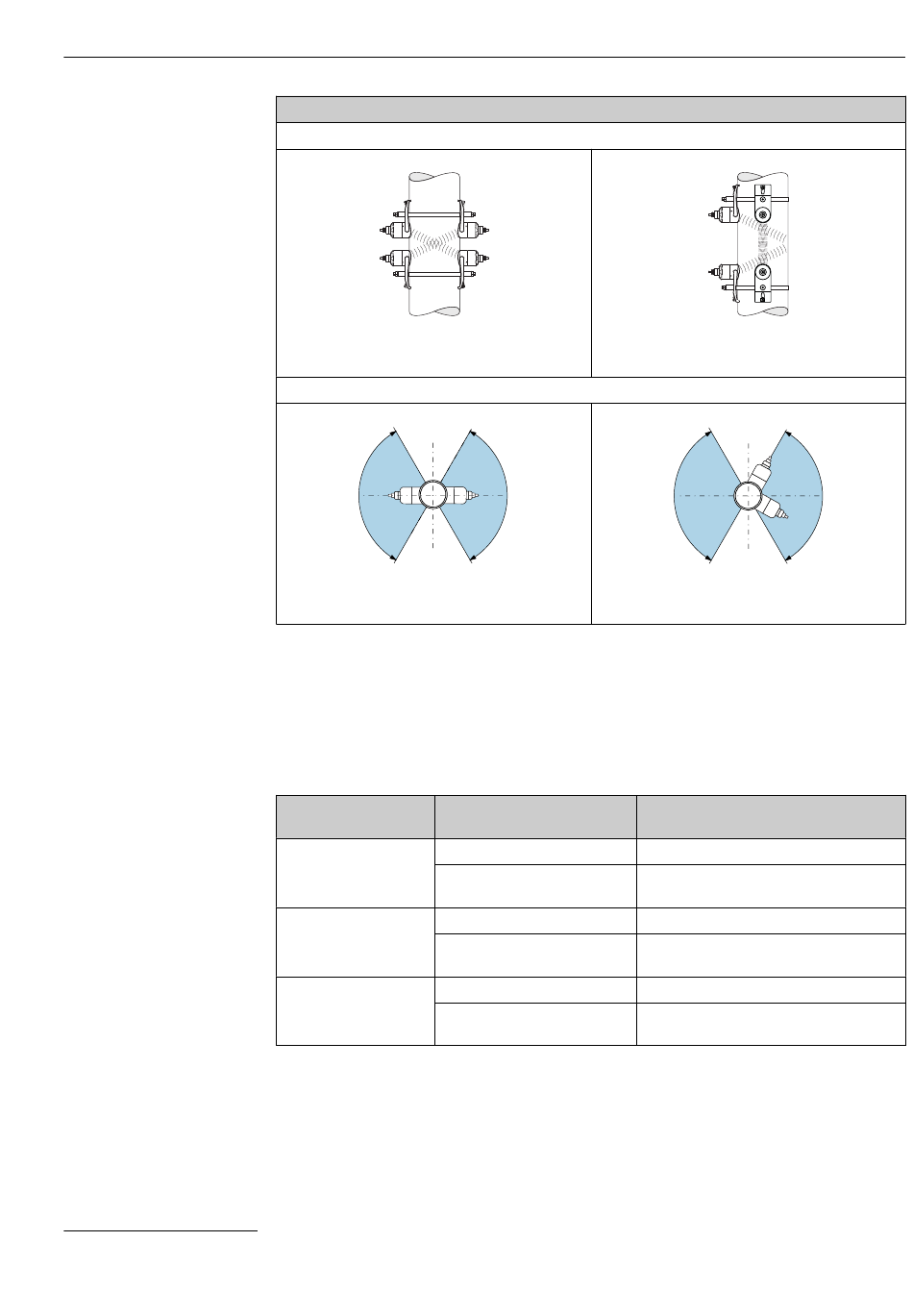

Two-path measurement (2 sensor sets)
Vertical mounting
A0042016
 12
Horizontal mounting
120°
120°
A0044304
 14
4)
.
Recommendation
C-500-A
Table for measuring pipe material: steel, cast
iron →  26
C-500-A
Table for measuring pipe material: plastic
→  26
C-500-A (with restrictions)
Table for measuring pipe material: glass-fiber
reinforced plastic →  27
Mounting procedure
A0042017
2 traverses
120°
A0046760
2 traverses
