3 Product Installation

3.1

Accessory Description

The standard accessories included with Ruby Plus LiDAR are listed in Table 4 for
reference.
No. Accessory Name
1 LiDAR
2 Interface Box
3 Power Adapter
4 Power Cable
5 Ethernet Cable
6 Screw Pack
7 4 pin Airline
8 16 pin Airline
Product Packing
9
Inspection Report
For specific requirements, refer to the commercial agreement.
3.2

Mechanical Installation

The structural installation diagram of the LiDAR is shown in Figure 6 .
18
Table 4 Standard Accessory List
List and Shipment

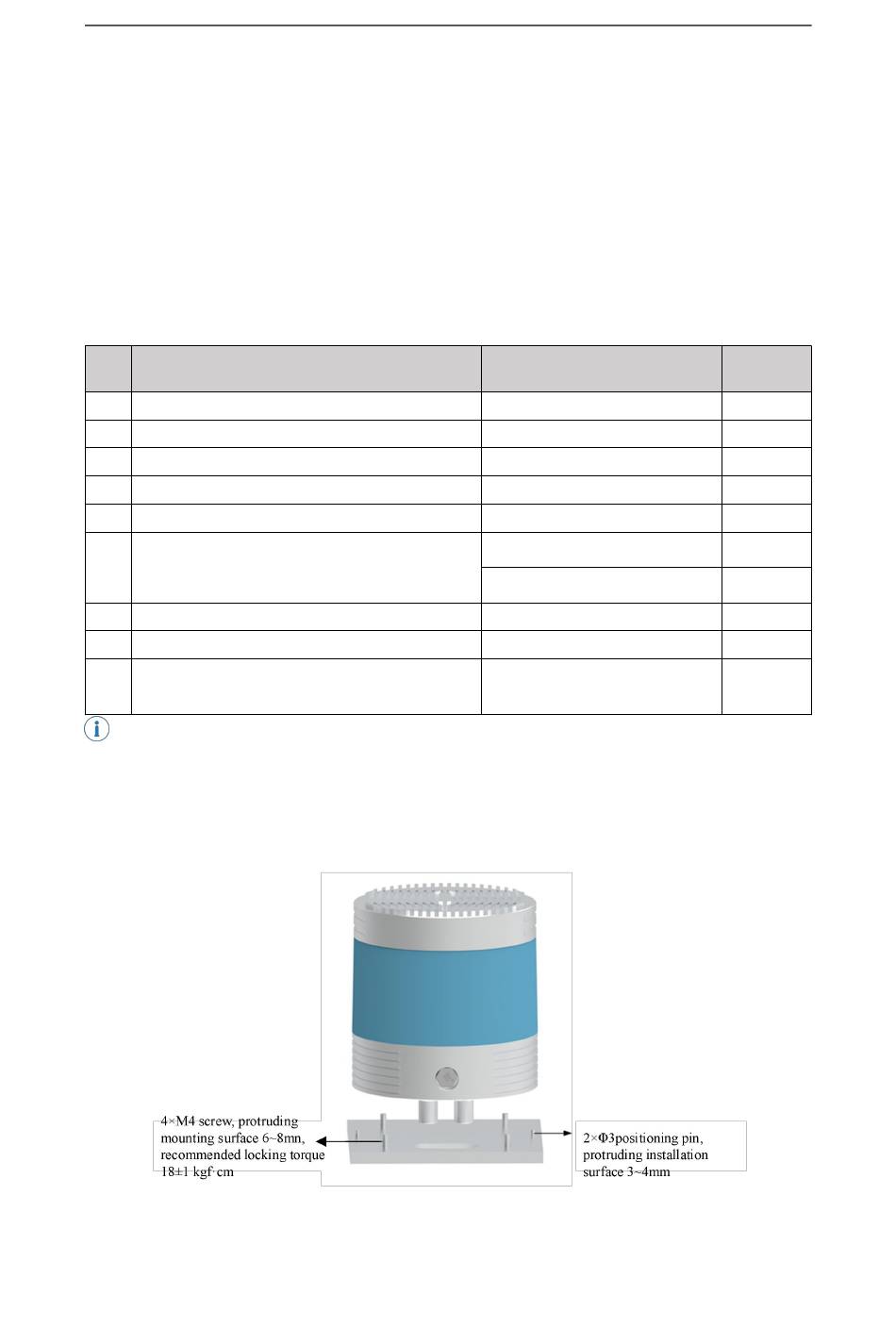

Figure 6 LiDAR Structural Installation Diagram
Specification
Ruby Plus
3m cable length
DC12 V × 3.34 A /40 W
1.2 m
1.5 m
M4 × 15
M4 × 20
Options: 3m / 4m / 6m / 12m
Options: 3m / 4m / 6m / 12m
/
Ruby Plus User Guide
Quantity
1
1
1
1
1
3
3
1
1
1
