2) Select the folder containing the corresponding firmware for the upgrade, then
click "Open" (avoid using Chinese characters in the file path), as shown in Figure
21 .
3) After selecting the firmware for upgrade, the filename will change to the selected
firmware name, indicating that it is successfully loaded, as shown in Figure 22 .
Click "Update" to proceed with the upgrade.
4) The web interface will prompt the upgrade success (or indicate if there is a
46

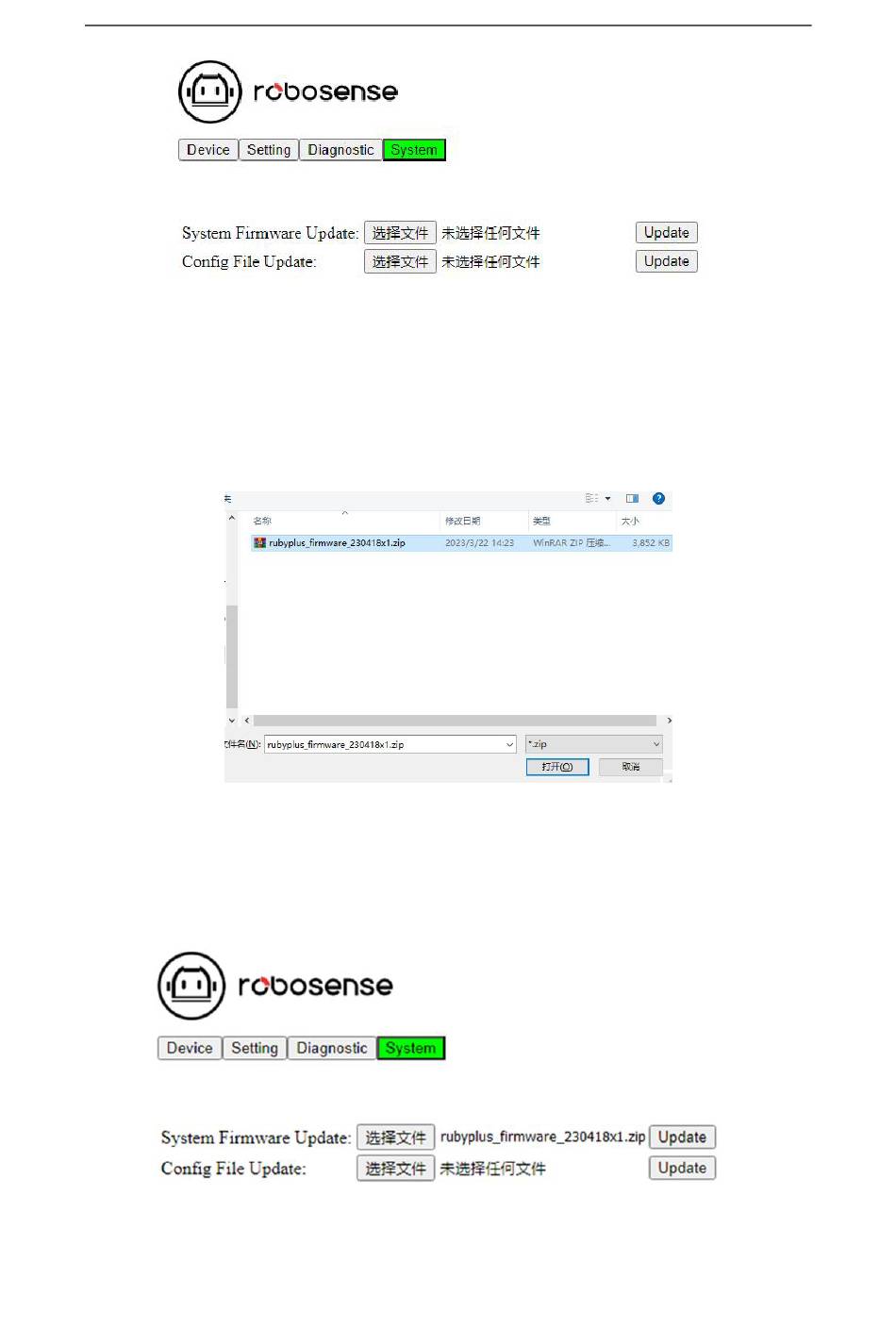

Figure 20 Step 1 - Click "Choose File"
Figure 21 Step 2 - Select Firmware for Upgrade
Figure 22 Step 3 - Click "Update"
