Keypad

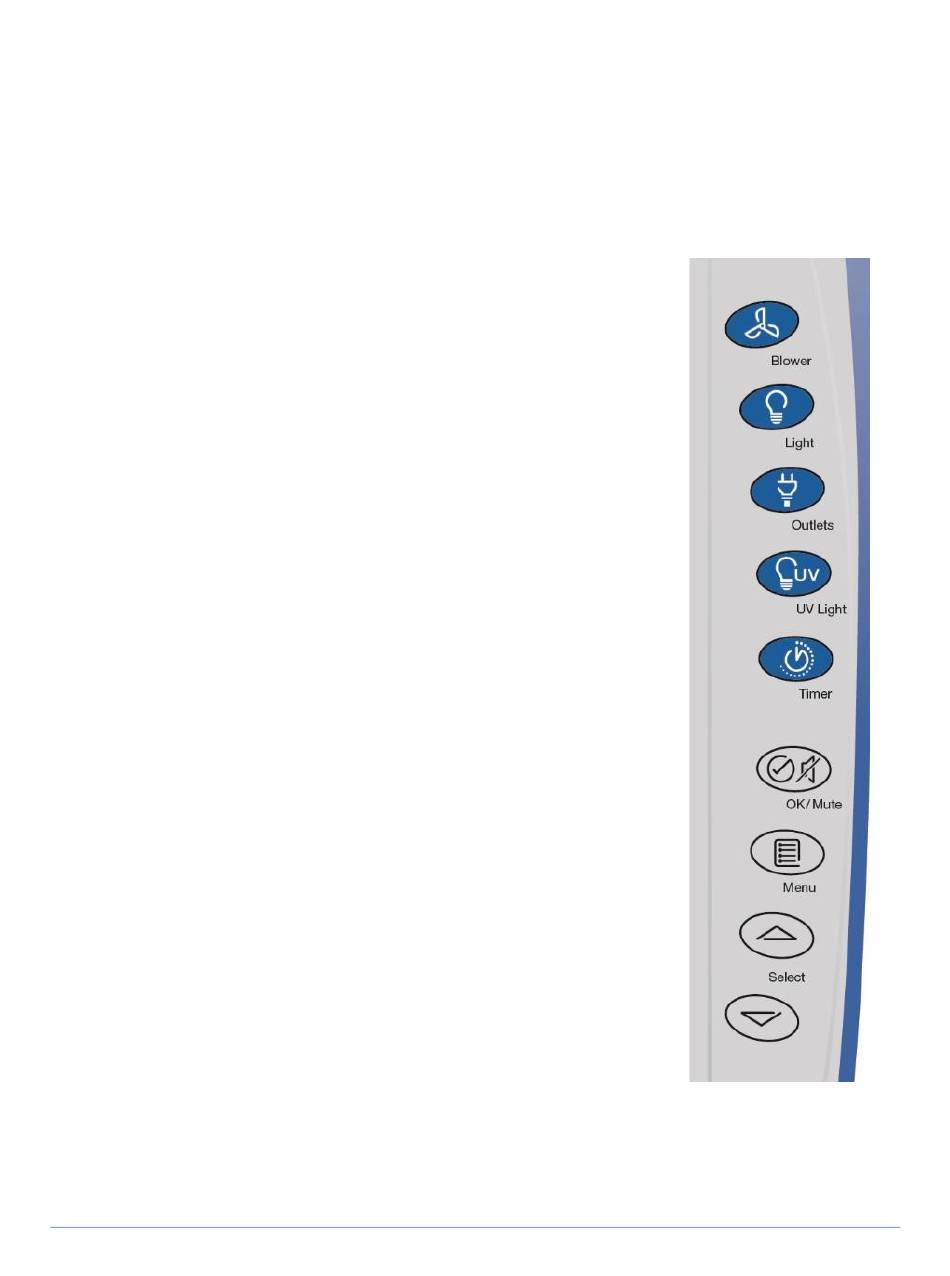

The keypad of the cabinet is shown in Figure 7-3. Take a moment to familiarize yourself
with the buttons, their locations and functions. Also familiarize yourself with the display
located on the right side wall. The display will report system functions, such as filter
capacity, timer displays, alarm or error messages, as well as icons that illuminate when
cabinet functions such as the light and blower are operational.
– Starts or stops the cabinet blower. When the
[BLOWER]
blower is in automatic (SmartStart) mode, opening the sash
from the closed position turns the blower on automatically.
Pressing the blower button at any time overrides the
automatic operation.
– Turns the LED lamps on or off. Closing the sash
[LIGHT]
automatically turns the lights off. When the lights are in
automatic (SmartStart) mode, raising the sash turns the lights
automatically. Pressing the light button at any time overrides
automatic operation.
– Turns on/off electrical outlets in the work area.
[OUTLETS]
– Turns on/off the UV lamp (when installed).
[UV LIGHT]
When the UV lamp is in automatic mode, closing the sash
the UV light on automatically. When the sash is raised, the
light turns off automatically.
– Allows you to select either a repeating interval
[TIMER]
timer, or an elapsed timer (stopwatch).
– Mutes all audible alarms for approximately 5
[OK/MUTE]
minutes, unless there is a system error alarm. When in any
Menu, this button is used to select an option.
– From the Home Screen, this button accesses the
[MENU]
Menu. When in any menu screen, pressing this button returns
the previous menu level.
[UP] and [DOWN]
change numerical fields in menu screens.
– Moves between selectable options or
56
Figure 7-3
from
The
on
the
turns
UV
Main
you to
