Vacu-Pass Cord & Cable Pass Thru (optional)
The Vacu-Pass allows for passage of a cord, cable, or tube from within the product.
The pass thru provides a sealed plug, and the plug housing is maintained under
negative pressure to safely pass cords through the right side wall of the product. Not all
models are configured with a Vacu-Pass port, if your model does not contain this option,
this section may be skipped.
Note: There must be enough clearance to pass the cord between the product's exterior
side panel and any obstruction such as a wall or other device.
Some Vacu-Pass components and the cord passing through it may become
contaminated during use of the cabinet. Ensure all potentially contaminated
components are surface decontaminated before handling or removal from the cabinet.
1. Locate the Vacu-Pass pre-cut accessory plug supplied in the Parts Box (see
Section 4: Installation
2. Remove the grommet from the liner side wall. Remove the solid plug from the body
of the portal by either pressing it through from the outside, or by carefully inserting
a spatula or similar device between the sealing plug and the body of the portal, and
prying the plug out. Save the solid plug. Locate the pre-cut accessory plug.
3. Pass the cord or cable through the body of the portal, and then through one of the
pre-cut accessory plug holes, then through the grommet, as shown in Figure 7-4.
Note: Select a pre-cut plug hole that is slightly smaller than the cord or cable, to create
a proper seal. The pre-cut plug has a core piece that must be removed before inserting
the cord.
Grommet
4. Position the cord or cable as it will be used in the cabinet, and then push the plug
back into the body of the portal until it seats in the portal. Reinstall the grommet.
for location of the Parts Box).
58

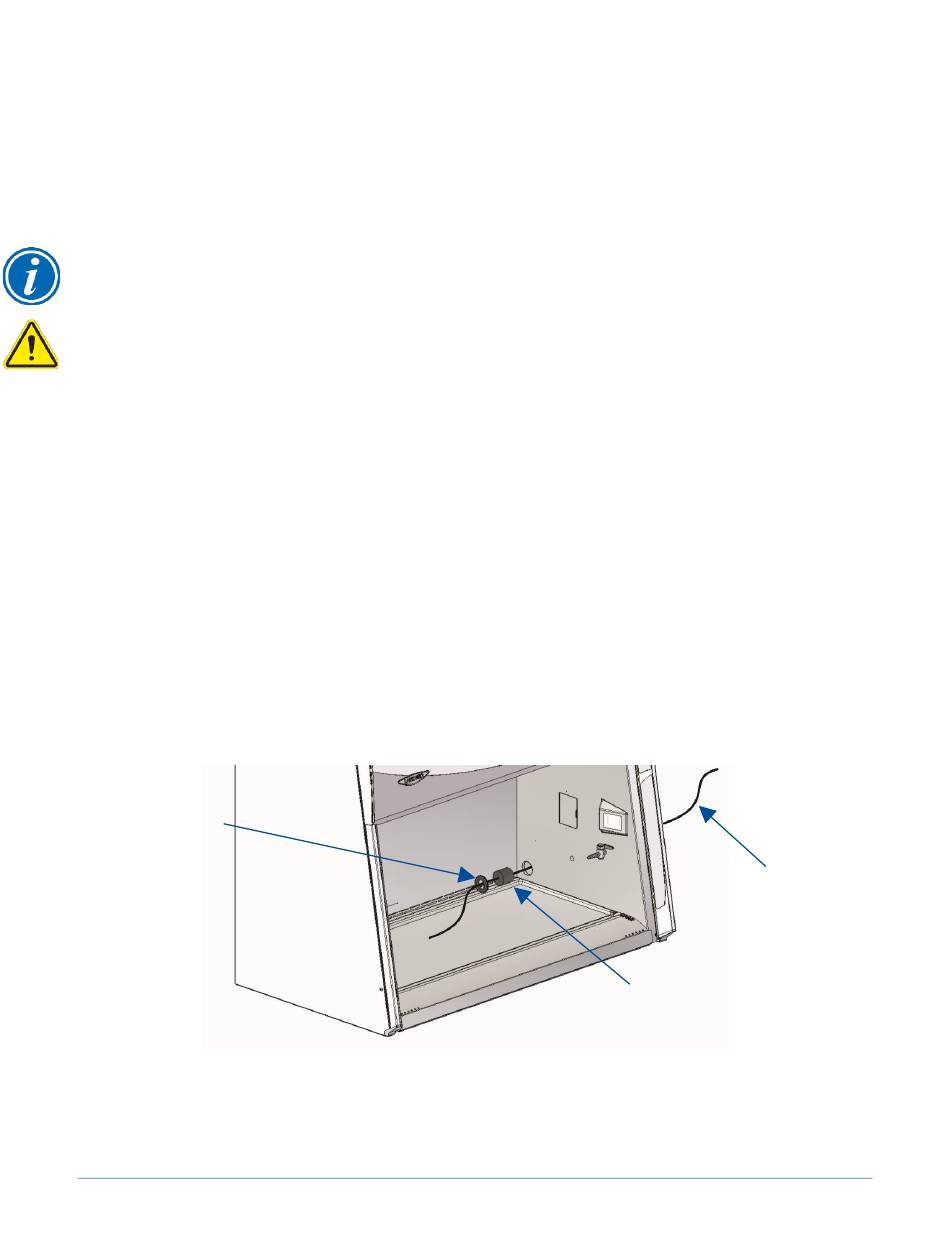

Figure 7-4
Pre-cut plug
Cord
