3. Per Figure E-5, form the second pleat and secure with transparent tape.
4. Per Figure E-6 and Figure 4-8, place the Outer Aerodynamic collar over the
Pure-Vu XL Seal and lightly secure in place with the 14 Phillips mounting screws.
Do not tighten.
5. Per Figure E-7, remove the transparent tape and then tighten the 14 Phillips
mounting screws.

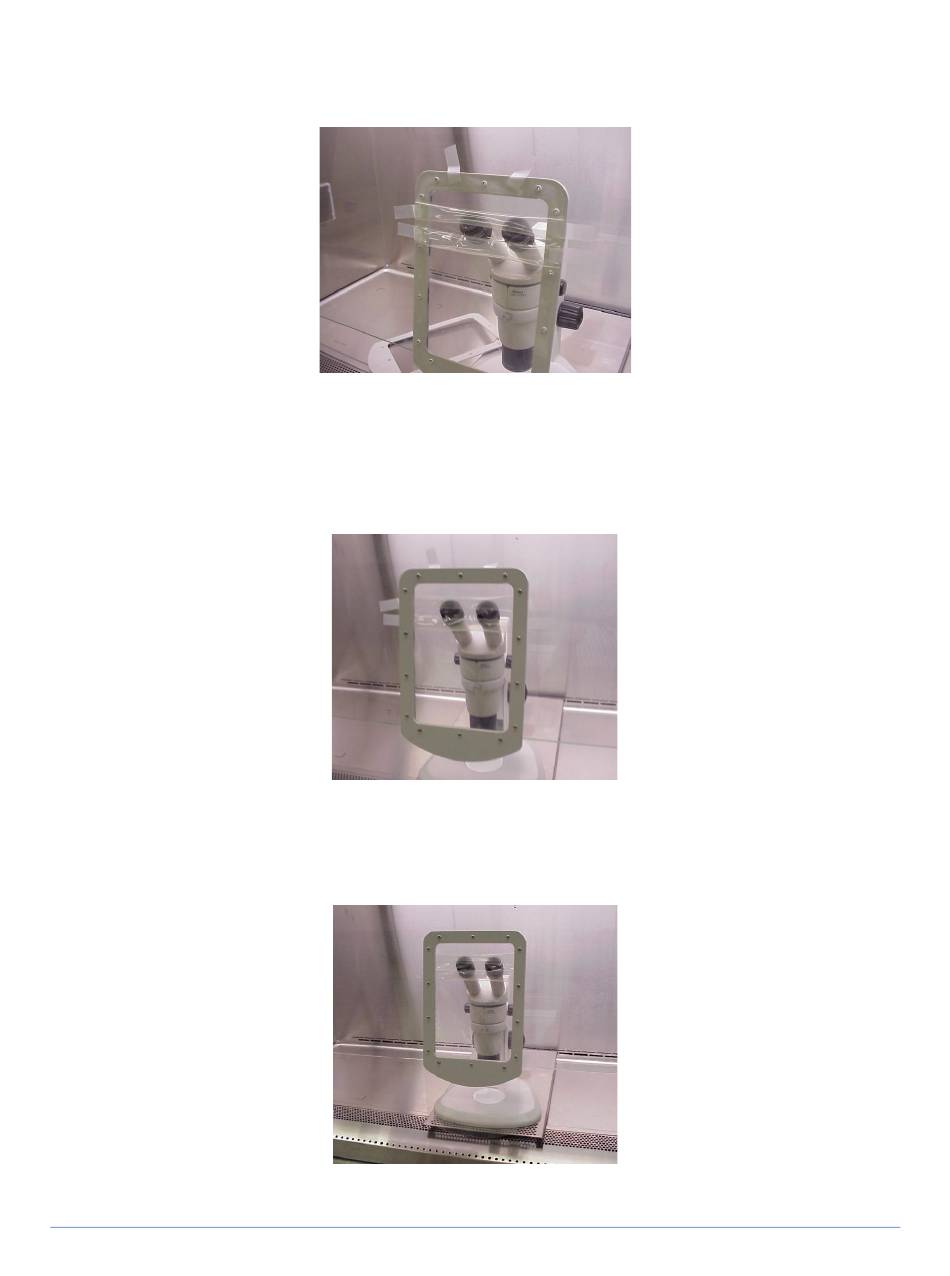

Figure E-5
Figure E-6
Figure E-7
