Step 3
The front sash will not slide open yet. The sash counterweights are pinned for
shipment. The Side Panels must still be removed or hinged open for this step. Locate
the Support Pin and Clevis Pin on each sash counterweight. See Figure 4-3. For
convenience a yellow tag and string are provided. Locate each yellow tag on the front
of the product, and follow the yellow string to each Clevis Pin. Remove the Clevis Pin
(also referred to as a Cotter Pin), then pull the Support Pin toward the rear of the
product until it is free. You will hear the counterweight drop a short distance when the
Support Pin is removed. Discard the Tags, String, and Pins.
Yellow String (to
Left End Pins)
Visual appearance of
biosafety cabinet and
exhaust connection
may vary by model.
Parts Box
Replace or close each Side Panel and secure the panels with two screws per panel.
Raise the front sash. Lift the front edge of the stainless steel work surface, locate and
retrieve the Parts Box. See Figure 4-3. The following items are located inside this box.
• User's manual thumb drive
• Drain valve assembly and fasteners
• Power cord
• Vacu-Pass
TM
accessory plug (if option package ordered)
Yellow
String
Same on opposite end
26

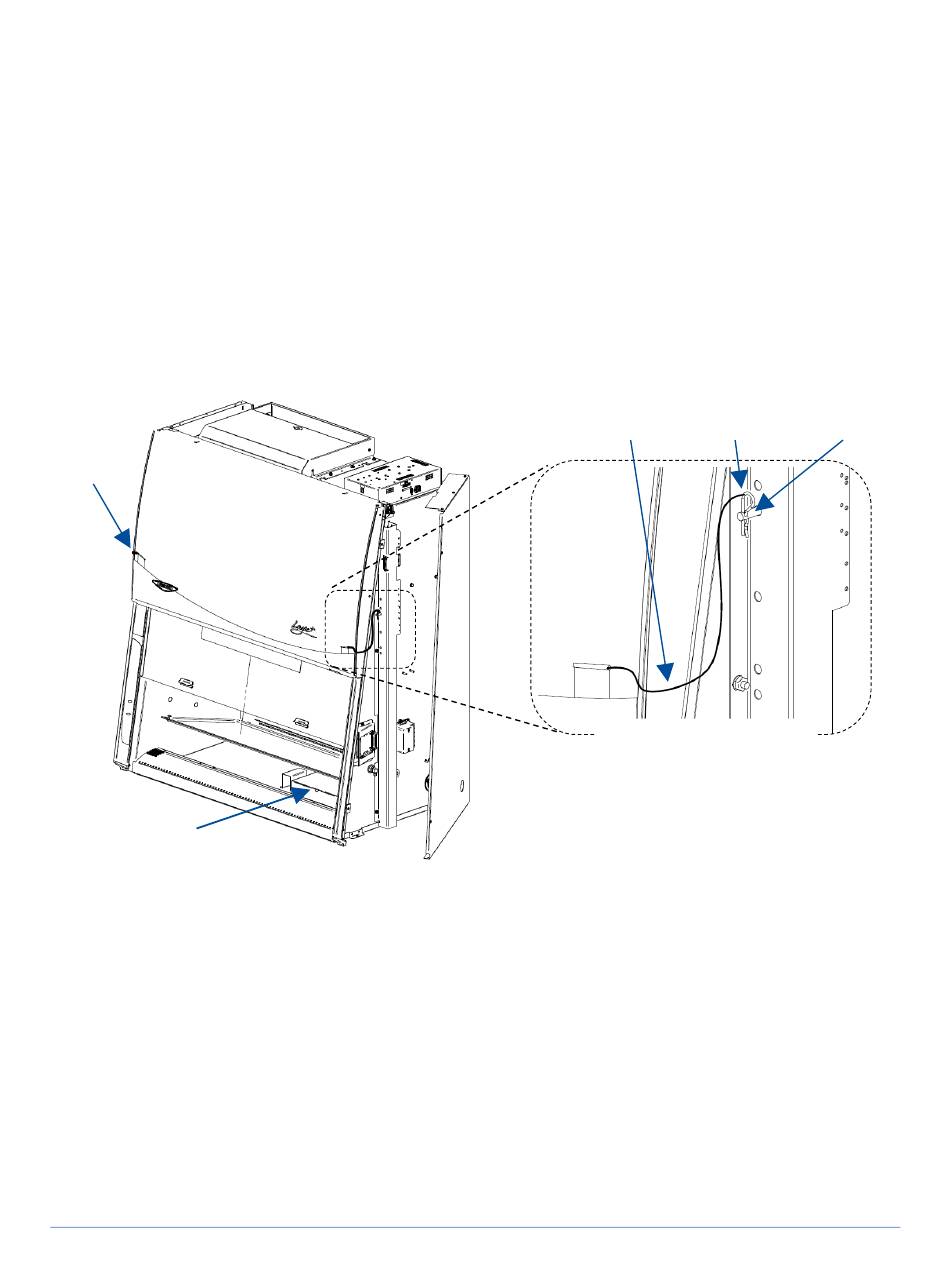

Figure 4-3
Support
Clevis Pin
Pin
