19. INSTRUCTIONS FOR USING THE MICROSCOPE

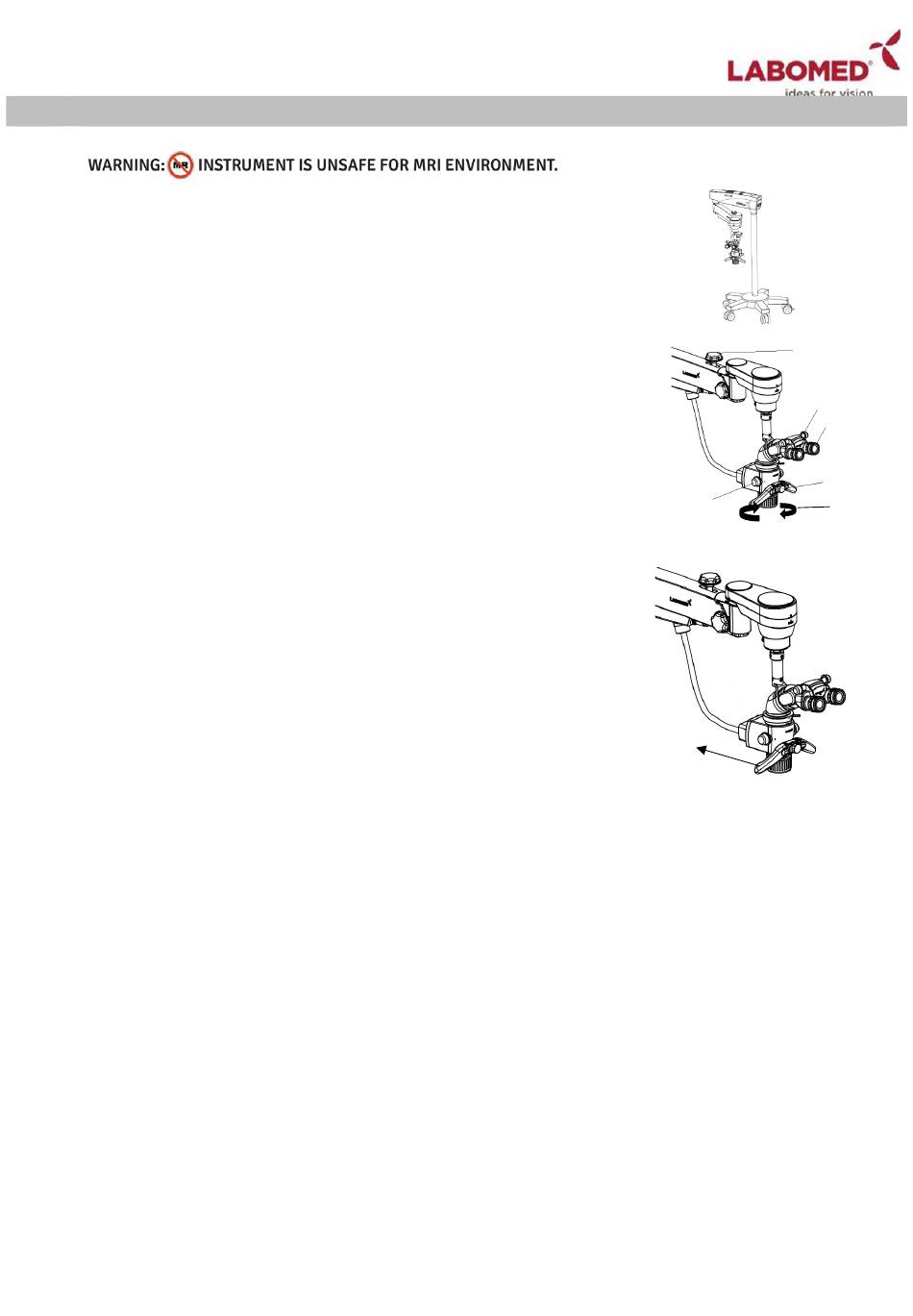

SETTING UP THE MICROSCOPE
1. Lock all the brakes on base wheels after setting up of microscope
on the attendance area for stability.
2. Although tension on microscope is factory pre-set as per the
ordered configuration. Still user can adjust up and down force by
turning the allen screw clockwise or anticlockwise with the help of
a 8mm allen wrench. Refer section 23 for more details. Refer Fig.-
55 to see the exact location of tension adjusting screw.
3. Lock the up & Down movement of suspension arm using locking
knob (B) in Fig.45 after focusing of the area of interest.
4. Adjust Position of Ergo Head as user convenience.
5. Adjust the eye distance as per IPD (C) scale according to your
convenience.
6. Set Both Eye Pieces (A) dioptre to Zero.
7. The illumination is controlled through the control knob (D), Fig.45.
Rotate it clockwise or anticlockwise to achieve desired
illumination level.
SETTING UP OF MAGNIFICATION
1. Adjust to highest magnification with one of the rotating knobs
(45a) provided at magnification changer.
2. Fine focusing is done through the CMO (E) fine focus ring.
3. Absolute centering of focused area in field of view can be done by
manual handles (J). Ref. Fig. 46
4. Make sure that the magnification changer is engaged in the index
point at the click stop position.
5. Focusing for highest magnification, change all the magnification
field of view must be in focus only fine focusing in required for
sharp focus.
6182001-795 Prima Pro
Fig. 44
B
C
A
D
45a
E
Fig. 45
J
Fig. 46
