INSTALLATION OF BASE (MOBILE STAND) continued

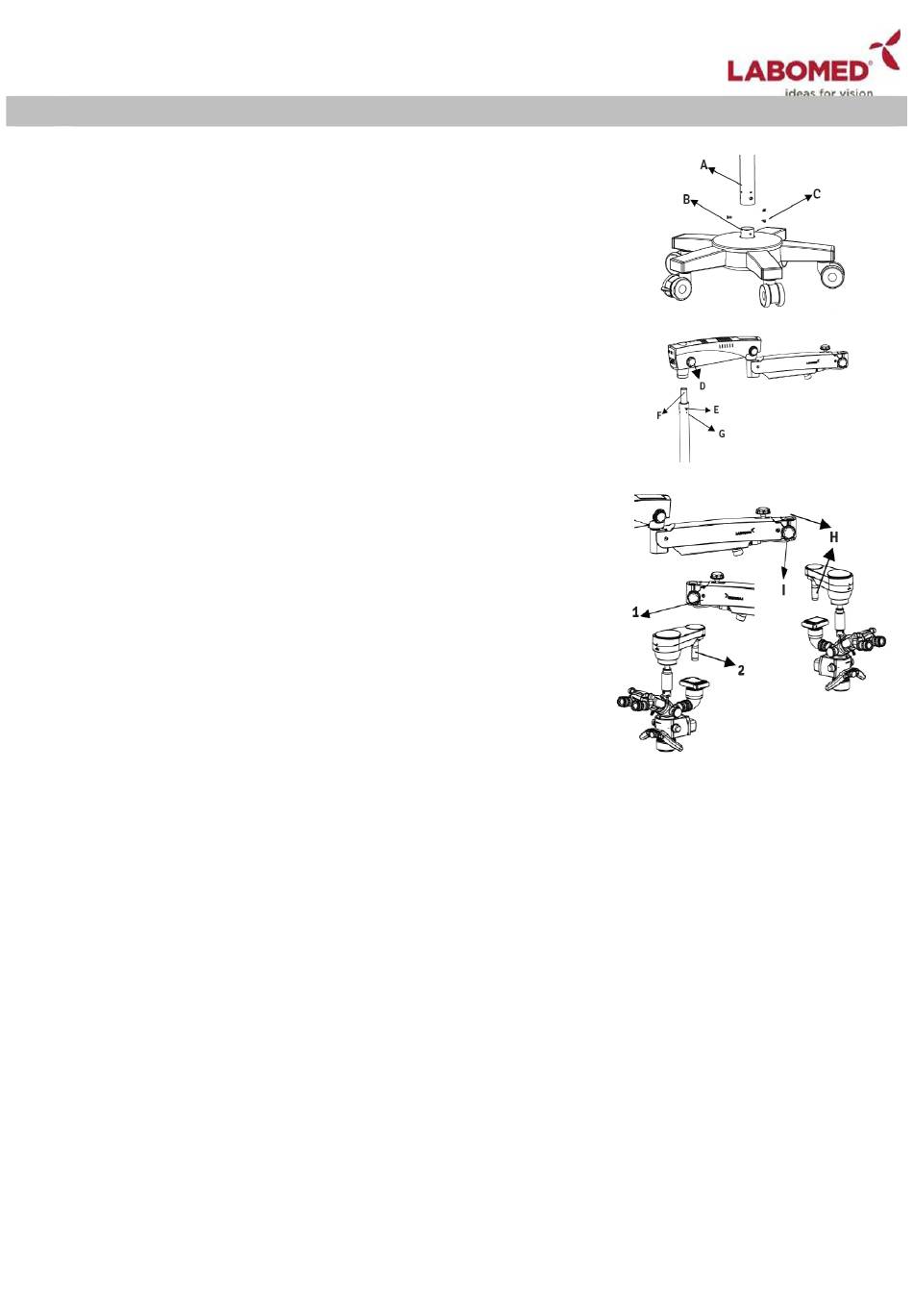

7. Open the microscope box. Take out (column) from the box. Mount
the column onto a shaft in shaft in base by aligning the
Corresponding holes in Column (A) and shaft (B). Secure it with
(3) M6x16mm Allen Screws (C) using 4mm Allen Key as shown in
fig.-30.
8. Take out the Arm Assembly from the same box and follow the
Instruction below: (Refer Fig. 31)
a. Ensure that the swivel arm lock knob (D) is loosened.
b. Mount the Arm Assembly into Shaft (F).
c. Align three holes (E) with tapped hole on Shaft (F).
d. Use Allen Wrench 4mm and tighten 2 M6x16mm Allen screws (G).
9. Open another box and take out the carrier assembly from its
packaging following arm as shown in Fig. 32.
a. Insert the Auto Balancing Arm (ABA) shaft (H) into the
suspension arm as shown in Fig.-32 .
b. Lock the auto Balancing Arm (ABA) with the threaded
Knob (I) as shown in Fig.- 32.
c. Make sure the safety screw (1) is installed and tightened
at position (2) so the coupling does not detach if knob (I) is
accidentally unscrewed.
6182001-795 Prima Pro
Fig. 30
Fig. 31
Fig. 32
