- Page 1 300 Slit Lamp User Manual Part No.: 8126200-795 Issue 1.1 Printed on April,2016...
- Page 2 300 eVO 300 is a registered Trade Mark of Labotech Microscopes India Pvt. Ltd. Labomed is the registered Trade Mark of Labo America Inc. All other trade marks are property of their respective owners. The information contained in this document was accurate at the time of publication. Specification subject to change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warnings and Cautions Symbol Information Introduction Indications for Use Contraindications Setup Parts Identification eVO 300 Package Contents Accessories Unpacking & Installation Application of Input Power Disconnection of Input Power Setup Of Camera Instructions for Use Operation Slit Length... -
Page 4: Warnings And Cautions
WARNING: THIS INSTRUMENT SHOULD BE USED IN STRICT ACCORDANCE WITH THE INSTRUCTIONS OUTLINES IN THIS USER’S GUIDE. THE SAFETY OF THE OPERATOR AND THE PERFORMANCE OF THE INSTRUMENT CANNOT BE GUARANTEED IF USED IN A MANNER NOT SPECIFIED BY LABOMED TECHNOLOGIES. - Page 5 EQUIPMENT. CAUTION: THIS INSTRUMENT IS NOT INTENDED TO BE CONNECTED TO EQUIPMENT OUTSIDE THE CONTROL OF LABOMED OR MUST BE TESTED TO AN APPLICABLE IEC OR ISO STANDARDS. CAUTION: CHIN REST PAPER-FOR SINGLE USE ONLY. REPLACE WITH EACH PATIENT. Issue 1.1...
-
Page 6: Symbol Information
300 EXPLANATION OF SYMBOLS The following symbols appear on the instrument: Caution symbol indicating important operating and maintenance instructions that are included in this User’s Guide. Type B Applied Part Alternating Current Power Protective Earth Connection ON/OFF Manufacture LABOMED... -
Page 7: Introduction
INDICATIONS FOR USE The eVO 300 Slit Lamp is an AC-powered slit lamp biomicroscope that is intended for use in examining the anterior segment, from the corneal epithelium to the posterior capsule. It is used to aid in the diagno- sis of diseases or trauma, which affect the structural properties of the anterior segment of the eye. -
Page 8: Setup

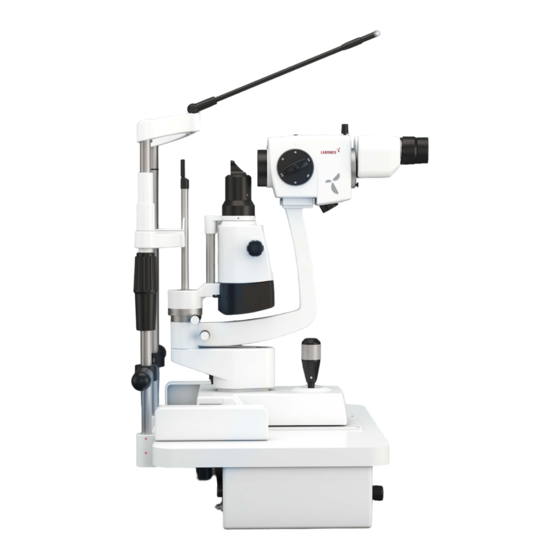

300 SETUP eVO 300 PACKAGE CONTENTS PART IDENTIFICATION 1. eVO 300 Slit Lamp HL (8126200) 1. On/Off Switch 2. eVO 300 Slit Lamp LED (8126201) 2. Illumination level Control 3. User’s Guide (8126200-795) 3. Glide Plate 4. Joystick for horizontal and... -
Page 9: Unpacking & Installation
300 SETUP (continued) UNPACKING AND INSTALLATION 1. Open the outside shipping box and remove the three (3) inner boxes. 2. Remove the user’s guide and read it. 3. Open the box with the Table Top and Electronics in it. Refer to Figure-1 4. - Page 10 300 SETUP (continued) UNPACKING AND INSTALLATION (continued) Base Lamp Chin Rest Wire Wire 8. Attach the Fixation Light Wire from the Chin Rest Assembly into the connector on the back of the Power Supply Assembly. Refer to Figure-5. 9. Open the box with the Microscope Assembly.
-
Page 11: Application Of Input Power
300 SETUP (continued) UNPACKING AND INSTALLATION (continued) 13. Install the Microscope Assembly onto the top of the Arm by sliding it into position, making sure it is up against the stop. Then, tighten the Lock Knob located on the right side of the Microscope Slide Assembly. -
Page 12: Setup Of Camera
300 SETUP (continued) UNPACKING AND INSTALLATION (continued) Set Up of Camera (CCD / HD CCD Camera) 1. Remove the Check Nut from the Inlet Tube for CCD Camera shown as (A)., Refer Figure. 12. 2. Fix the Lens Adapter by rotating it Clock wise to the Inlet Tube for Camera shown as (B)., Refer Figure. -
Page 13: Instructions For Use
300 INSTRUCTIONS FOR USE OPERATION 1. Turn on the power using the On/Off switch located on the front of the Power Supply Assembly. Brightness can be Projected Slit adjusted by rotating the illumination level knob. NOTE: The maximum position is for intermittent use only. -
Page 14: Slit Length
300 INSTRUCTIONS FOR USE (continued) OPERATION (continued) 11. The slit width can be adjusted by rotating the Magnification Slit Width/Rotation Knob on either side of the Dial instrument. Refer to Figure-15. 12. The angle between the illumination system and the microscope can be varied between 0˚and 90˚... -
Page 15: Cleaning & Maintenance
300 CLEANING & MAINTENANCE WARNING: RISK OF ELECTRIC SHOCK. ALWAYS DISCONNECT THE POWER CORD FROM THE WALL AND THE INSTRUMENT BEFORE PERFORMING ANY OF THE FOLLOWING CARE AND MAINTENANCE PROCEDURES. EXTERNAL CLEANING Clean the external surfaces of this instrument using a clean, soft cloth moistened with a mild detergent solution of liquid dish soap (filtered below 5 microns). -
Page 16: Changing The Led
300 4. Pull the bulb from the unit and replace the bulb with the correct bulb as indicated in the specifications section of the manual. Note: Position the Bulb so the Cut Out in the metal collar of the Bulb lines up with the Notch in the lamp housing. -
Page 17: Fuse Replacement
300 FUSE REPLACEMENT Replace the fuses in the Power Input Module with the Cut Out Notch fuses indicated in the Specifications section of this manual. Remove input power to the instrument. Press down on the top tab in the middle of the... -
Page 18: Troubleshooting
Bulb not installed properly. with bulb housing. The following is a checklist of items that need to be assessed in order to determine if the eVO 300 Slit Lamp requires servicing. • Check the outside of the Slit Lamp for any damage or missing components. -
Page 19: Specifications
300 SPECIFICATIONS Catalog Number 8126200-795 Physical Dimensions Size: Weight, unpacked: 23.0 lbs. (10.4 Kg) Height: 19.8 in. (50.2 cm) Weight, packed: 52 lbs (23.64 Kg) Width: 10.5 in. (26.7 cm) Depth: 14.0 in. (35.6 cm) Electrical voltage: 100-240 vAC... -
Page 20: Disposal
300 SPECIFICATIONS (continued) MOVEMENT RANGES Longitudinal (In/Out) 100mm Lateral (Left/Right) 107mm vertical (Up/Down) 30mm Chin rest Range 80mm Table Dimensions 18 1/2" x 12 10/16" (465 mm x 316 mm) DISPOSAL This product does not generate any environmentally hazardous residues. At the end of its product life, follow your local laws and ordinances regarding the proper disposal of this equipment. -
Page 21: Guidance Tables
Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The eVO 300 is intended for use in the electromagnetic environment specified below. The customer or user of the eVO 300 should ensure that it is used in such an environment. Electromagnetic Environment... - Page 22 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The eVO 300 is intended for use in the electromagnetic environment specified below. The customer or user of the eVO 300 should ensure that it is used in such an environment. Immunity IEC 60601...
- Page 23 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The eVO 300 is intended for use in the electromagnetic environment specified below. The customer or user of the eVO 300 should ensure that it is used in such an environment. IEC 60601...
- Page 24 300 Portable and Mobile RF Communications Equipment and the The eVO 300 is intended for use in the electromagnetic environment in which radiated RF disturbance are controlled. The customer or user of the eVO 300 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF Communications Equipment (transmitters) and the eVO 300 as recommended below, according to the maximum output power of the communications equipment.
-
Page 25: Warranty
Lamps, bulbs, charts, cards and other expendable items are not covered by this warranty. All claims under this warranty must be in writing and directed to the LABOMED factory, or authorized instrument dealer making the original sale ands must be accompanied by a copy of the purchaser’s invoice. - Page 26 Revision History Rev. No. Date of Release DCR # Change App. By 4/4/2016 DCR/16/2016 Added User Enviro- S Bal nment requirement in Cleaning & maintenance section...
- Page 27 Labo America Inc. 920 Auburn Court Fremont, CA 94538 U.S.A. Phone: 510-445-1257 Fax: 510-991-9862 Email: sales@laboamerica.com www.laboamerica.com EU REP. Labomed Europe Essebaan 50 NL-2908 LK Capelle a/d IJssel The Netherlands Tel: +31 (0)10 4584222 Fax: +31 (0)10 4508251 E-mail: info@labomedeurope.com ISO-9001/13485 Registered...
