INSTALLATION REFERENCES (WALL MOUNT VERTICAL)

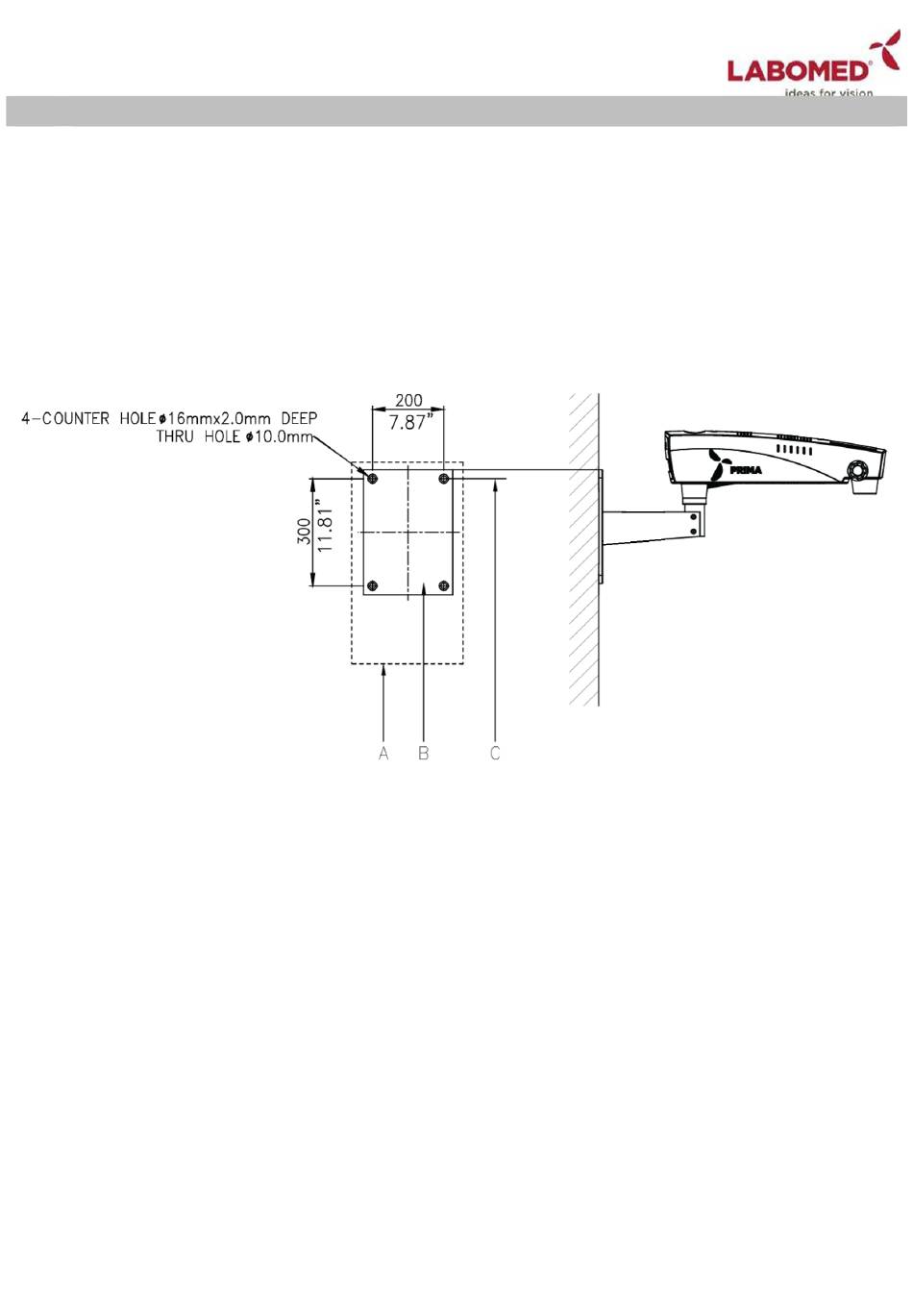

8b. Vertical Wall Mount: MARKING REFERENCE
Anchoring the Wall Mount
Reference
A. Paper Template for Marking
B. Wall Mount Assembly
C. Distance from Floor – Refer suitable height as per ordered configuration from Figure –14.
6182001-795
Fig. 15a
Prima Pro
Issue 1.0
Printed on Jan, 2024
