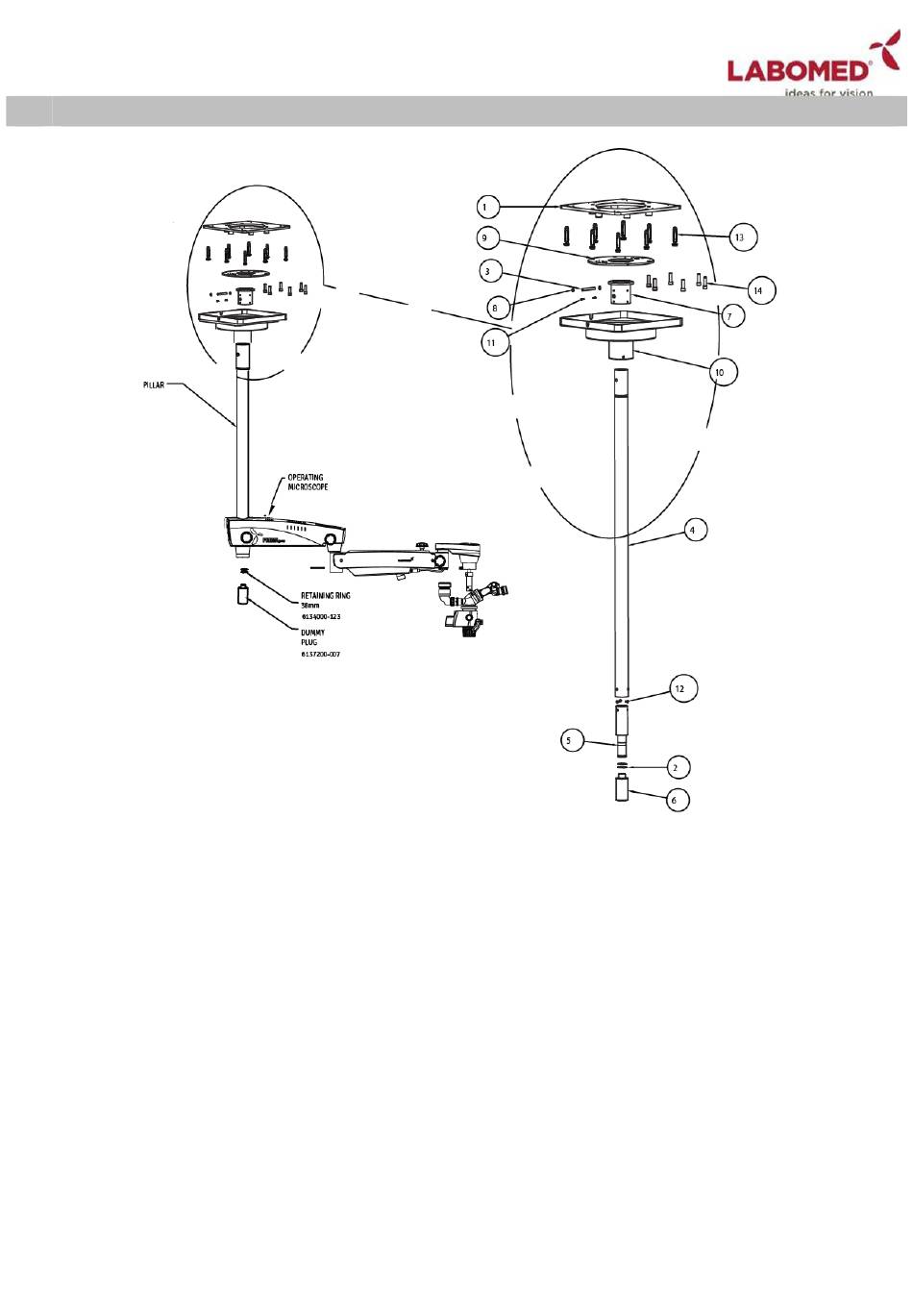

INSTALLATION REFERENCES (CONCRETE CEILING MOUNT) continued
ITEM
PART NUMBER
1.
6129004-801
2.
6134000-123
3.
6137200-003
4.
6137200-004
5.
6137200-005
6.
6137200-007
7.
6137200-012
8.
6137200-013
9.
6137200-804
10.
6137200-805
11.
SS-630
12.
SS-802
13.
SS-854
14.
SS-921
6182001-795
Fig. 7
DESCRIPTION
MASTER PLATE
RETAINING RING DIA 38
PIN
PILLAR
FRONT SHAFT
DUMMY PLUG
FLANGE BUSH
WASHER
ASSY. CEILING MOUNT PLATE
ASSY. CEILING COVER PRIMA
M4x10.0 SOCKET HD CAP SCREW
SOCKET FLAT HD SCREW M6x16
RAWAL PLUG M10
M12x40-SOCKET HEAD CAP SCREW
Prima Pro
QTY
1
2
1
1
1
1
1
2
1
1
2
3
8
6
Issue 1.0
Printed on Jan, 2024
