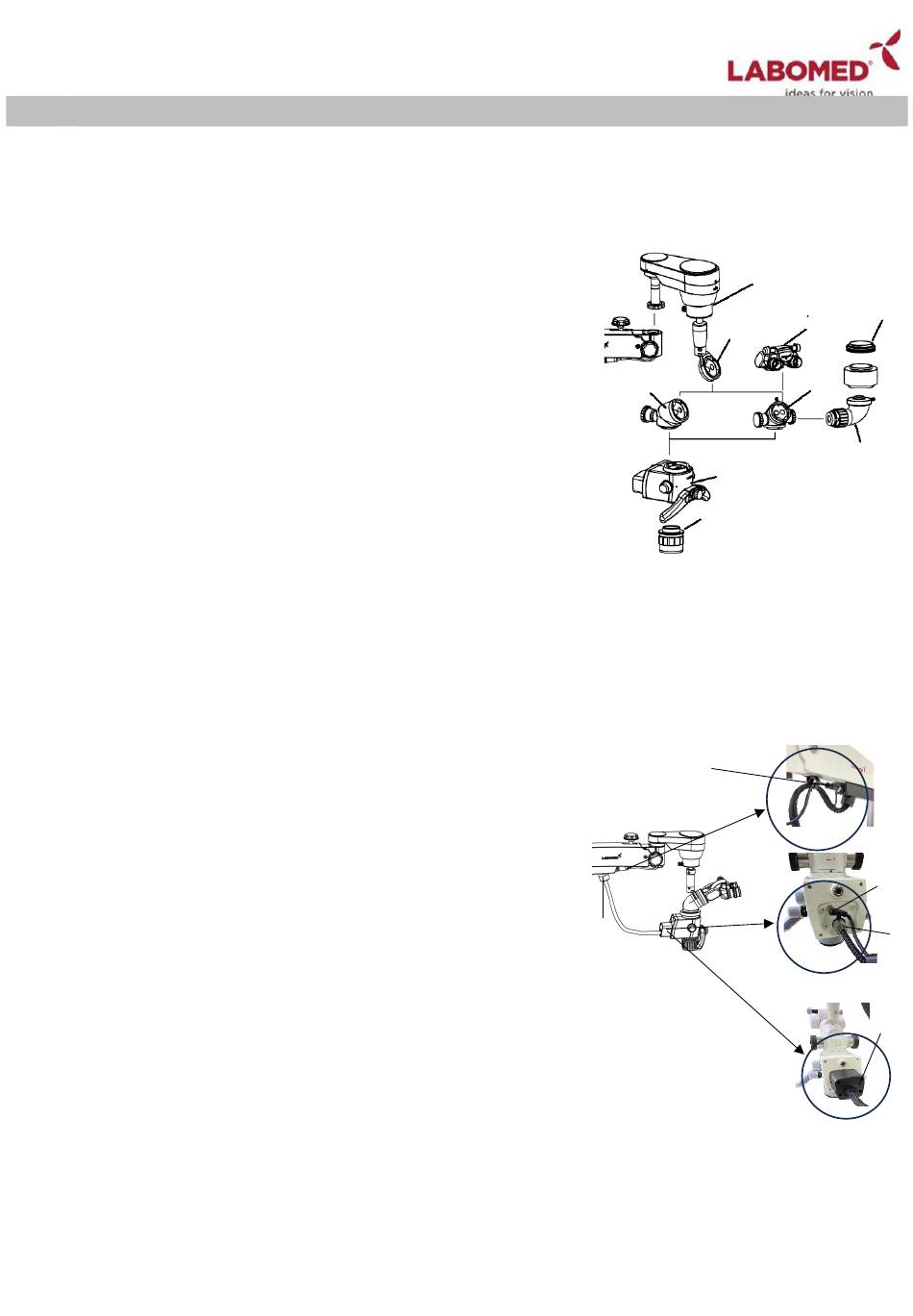

MICROSCOPE INSTALLATION (continued)
4. Install the standard accessories onto the carrier assembly as
mentioned below:
a. Open the Box and take out the ABA arm with mount for DBS (A).
Loosen the M4 grub screw of Mount (1) by 2mm allen key and Fix
Double Beam Splitter inclined (B) or SBS-R Single Beam Splitter
Rear View (C) as required on to the mount (1) by re-tightening the
m4 grub screw. Ref. fig. 33
b. Loosen the M4 grub screw by 2mm allen key on Double Beam
Splitter inclined (B) and fix Magnichanger (D) and re-tighten the
M4 grub screw. Ref. fig. 33
c. Remove the End cap from Double Beam Splitter inclined by
rotating the ring in Anticlockwise and fix DSLR Camera adapter
(E) by matching the slot and rotate the ring clockwise to tighten
the same. Loosen the M4 Grub screw by 2mm allen key on DSLR
adapter and fix the supplied Mount (Canon, Nikon, Sony (E.1).
Retighten the M4 grub screw to secure C-mount. Ref. fig. 33
d. Loosen the M4 grub screw in DBSi by 2mm allen key and fix the
Ergo Head 0°-210° Tiltable Binocular (F). Re tighten the M4 grub
screw. Ref. fig. 33
e. Fix the NuVar Variable objective (G) by rotating in clockwise
position. Ref. fig. 33
f. Set both eyepieces to (O) dioptre on ergo head.
Note: Please ensure the accessories are fixed properly to have
better visual results.
5. Mount the light guide by completing the steps below:
a. The light guide comes pre-routed through the swivel arm (which
houses the LED illumination system, the suspension arm and
through the cable cover.
b. A wire mesh for Cable routing is Permanently fixed to Suspension
arm at point (5). Ref. Fig. 34
c. Fold and gather wire mesh with back cover with and insert the
power socket (2) for illumination control. Then insert the Fibre
optic cable into the light guide (3). Ref. Fig. 34
d. Now Fix the back cover (4) with screws. Then connect the 4pin
socket to the inlet (1) for powering up the ABA (Auto balancing
Arm) Electromagnetic clutch. Ref. fig. 34
e. Make sure the light guide has been routed through wire mesh into
the carrier system such that the microscope is not obstructed and
can be moved in its entire range of movement without stretching,
kinking, or twisting the light guide.
