Summary of Contents for Labomed eVA 500

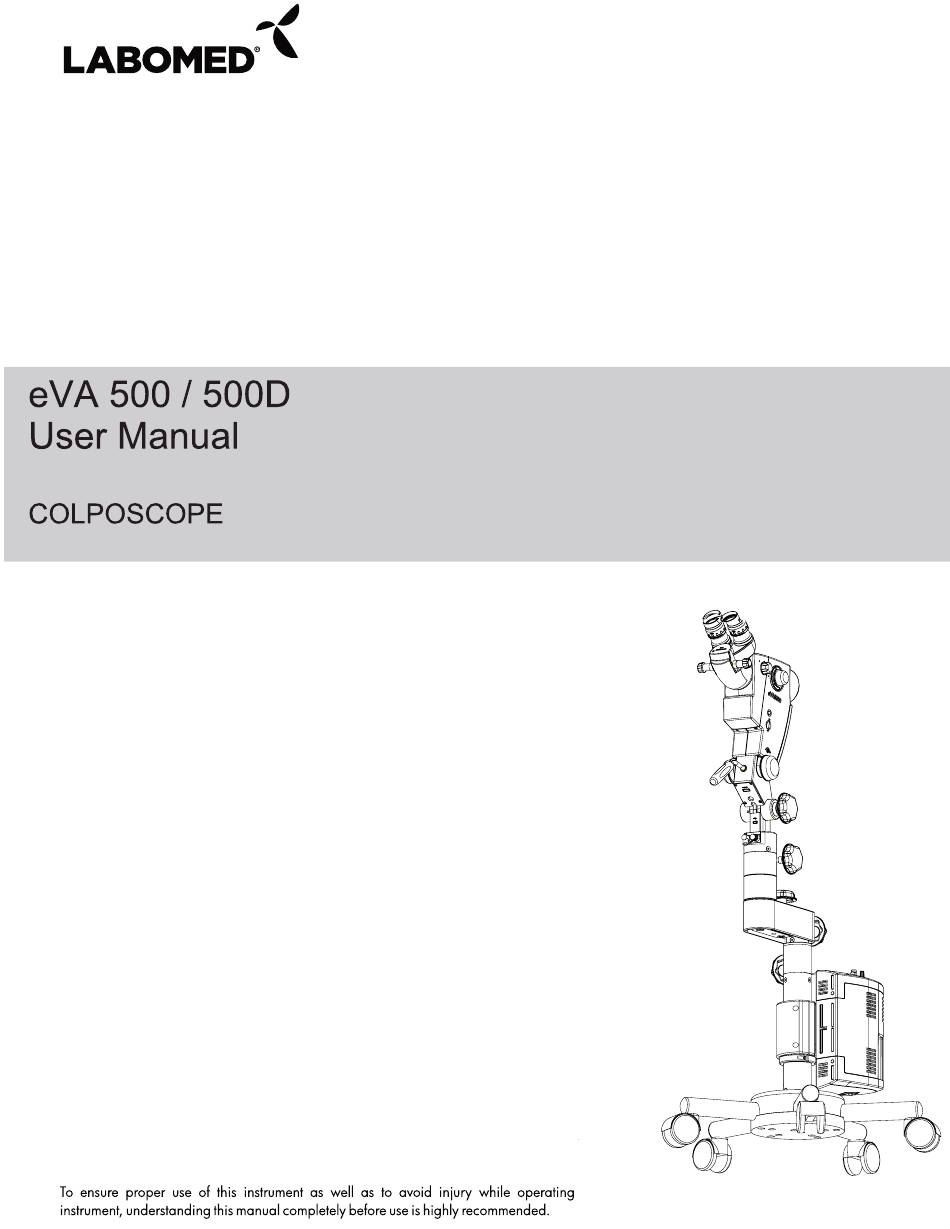

- Page 1 Part No:6169000-795 Issue on 1.0 Printed on May, 2013...
-
Page 2: Table Of Contents
User’s Manual eVA 500 / 500D COLPOSCOPE List of Contents Introduction Warning & Caution/Warning labels/Intended use Condition of material at time of supply Installation Instructions (Fig. 1) Mounting of Appliance (Fig. 2.1, 2.2, 2.3) Special instructions Additional load Measures& Weight (Fig. 3) Electric Connections (Fig. -
Page 3: Introduction
LABOMED eVA 500 / 500D COLPOSCOPE is an optical instrument used in a medical diagnostic procedure to examine Cervix, Vaginal and Vulva tissue with the aid of illumination techniques and optical stereo microscope. - Page 4 User’s Manual eVA 500 / 500D COLPOSCOPE With E50 Stand: Provided with Ez -lift mechanism for easy and accurate positioning. It has total vertical travel of 125 mm (100 mm coarse positional travel and 25 mm fine positional travel). ...
- Page 5 User’s Manual eVA 500 / 500D COLPOSCOPE With S50 Stand: S50 stand is provided with a vertical range of height up to 125 mm with the help of the rack and pinion arrangement. User can adjust colposcope as per convenience for exact view of interest.
-
Page 6: Warning & Caution/Warning Labels/Intended Use
User’s M Manual eVA 500 / 500 0D COLPOSC COPE Warn ings & Cau utions LABOMED is n not responsibl le for the safe ety and reliab bility of this in nstrument whe Assembly, d disassembly, r repair, or mod... - Page 7 CAUTION: THIS INSTR RUMENT IS NOT INTEND DED TO BE CONNECTED D TO EQUIP PMENT OUTSIDE TH E CONTROL OF LABOMED D OR MUST B BE TESTED T TO AN APPLI ICABLE IEC O OR ISO STANDARDS. 6 ...
- Page 8 User’s M Manual eVA 500 / 500 0D COLPOSC COPE Warning Lab bels and No otes Cautio Observ ve all warnin ng labels and d notes! If any l abel is miss sing on your instrument o or has becom me illegal, p please conta ct us...
- Page 9 • Intended use LABOMED colposcope eVA 500 and eVA 500D is a device designed to permit direct viewing of the tissues of the vagina and cervix by a telescopic system located outside the vagina. It is used to diagnose abnormalities and select areas for biopsy.
-
Page 10: Condition Of Material At Time Of Supply
User’s Manual eVA 500 / 500D COLPOSCOPE CONDITION OF MATERIAL AT TIME OF SUPPLY The appliance is delivered in 6 assembled groups: • Mobile supporting Base • Column (S50 0r E50) • Illumination box with integrated electrical power supply •... -
Page 11: Installation Instructions (Fig. 1)
User’s Manual eVA 500 / 500D COLPOSCOPE INSTALLATION INSTRUCTIONS MOUNTING OF ROLLER STAND AND COLUMN (Fig. 1) • Insert column① into the mobile base②. • Fasten screw ③ with enclosed hexagon socket wrench to column ①. • The mobile bases have 5 rollers④ out of two have locking breaks(red) •... -
Page 12: Mounting Of Appliance (Fig. 2.1, 2.2, 2.3)
User’s Manual eVA 500 / 500D COLPOSCOPE MOUNTING OF APPLIANCE • Mount the illumination box③to the column against the vertical guide ②. • Screws①to be tighten to hold the box as shown (Fig. 2.1). (Fig 2.1) •... -
Page 13: Special Instructions
User’s Manual eVA 500 / 500D COLPOSCOPE • Insert the arm ⑦of the microscope head on the top of the swivel arm ⑧. • Screws ⑨ to be tightened from both sides of the head arm⑦. (Fig. 2.3) Special Instruction: •... -
Page 14: Measures& Weight (Fig. 3)
User’s Manual eVA 500 / 500D COLPOSCOPE DIMENSIONS & WEIGHT (Fig. 3) eVA 500D– Digital Colposcope with roller stand Total weight: Approx. 45 kg. eVA 500– Colposcope with roller stand Total weight: Approx. 44 kg. 60° Tilt 60° Tilt (Fig. -
Page 15: Electrical Connections
User’s Manual eVA 500 / 500D COLPOSCOPE Electrical Connections Connect the power cable to the AC Inlet socket as 1 in figure number 4 below. Switch on the power from on/off switch shown as 1 in figure number 5 on 16 below. -
Page 16: Operating Instruction/Control Elements (Fig. 5)
User’s M anual eVA 500 / 500 D COLPOSC COPE OPERATING G INSTRUCT TIONS On / off sw witchshown as ① in fig g. 6 is locat ted on the u upper side of f the illumin nation ox. - Page 17 User’s Manual eVA 500 / 500D COLPOSCOPE BRIGHTNESS CONTROL (Fig. 6) • A variation in light intensity is made by rotating knob ①. (Fig 6) 16 Issue 1.0 6169000‐795 eVO 500/500D Printed on May, 2013 ...
-
Page 18: Description Of Parts (Fig. 7.1 & 7.2)
User’s Manual eVA 500 / 500D COLPOSCOPE CONTROL ELEMENTS (Fig. 7.1 & 7.2) • Roller stand: 5 rollers to move the appliance and 2 brakes to lock the Appliance (see Fig. 1) • Rotating knob to change the Magnification ①. - Page 19 User’s Manual eVA 500 / 500D COLPOSCOPE • Ez-lift control knob ⑯. ( with E50 column configuration) • Swivel arm locking knob⑰. • Column height adjustment knob (E50 stand) ⑱and Column height adjustment handle⑱ (S50 stand). • Inlet for fiber optic cable⑲. • Knob to swing in the Yellow Filter ⑳.
-
Page 20: Instructions For Using The Microscope A) Adjustment Of Interpupillary Distance (Fig. 8)
User’s Manual eVA 500 / 500D COLPOSCOPE INSTRUCTIONS FOR USING THE MICROSCOPE ADJUSTMENT OF INTERPUPILLARY DISTANCE (Fig. 8) • Turn the microscope in working position. • Inclined tube 45°①: Adjust eyepieces ②to the required IPD by turning the lateral knob③. -
Page 21: B) Changing The Magnification (Fig. 9)
User’s Manual eVA 500 / 500D COLPOSCOPE CHANGING THE MAGNIFICATION (Fig. 9) • Adjust to the highest magnification with any of the rotating knobs ① on the magnification changer ②. • See to it that the magnification changer step is engaged into its index position, related to the desired magnification. -
Page 22: C) How To Focus The Object (Fig. 9.1)
User’s Manual eVA 500 / 500D COLPOSCOPE HOW TO FOCUSE THE OBJECT (Fig. 9.1) • Bring object into rough focus. • Rotate fine focusing knob clockwise or anticlockwise to bring object into sharp focus. • If the object is outside the range of the fine focusing knob, bring the complete microscope in the focus range by any of the following means: a) Roll the mobile stand forward and backward. -
Page 23: D) Red Free Image Observation (Fig. 9A)
User’s Manual eVA 500 / 500D COLPOSCOPE Red free image observation (Fig. 9.2) • Rotate filter knob (1) to swing in or swing out the red free (Green) filter. This will help in filtering the red tissue in the image being observed and will highlight the enhance vessel image and the vascular morphology. -
Page 24: D) Eyepieces With Diopter Locking Facility (Fig. 9.2)
User’s Manual eVA 500 / 500D COLPOSCOPE EYEPIECES WITH DIOPTER LOCKING FACILITY (Fig. 9.3) • LABOMED eyepieces have a unique locking facility. • Diopter lock can be released by moving the slider on eyepiece ① toward right. •... -
Page 25: E) Aperture Settings For The Colposcope (Fig. 9.3)
User’s Manual eVA 500 / 500D COLPOSCOPE APERTURE SETTINGS FOR THE COLPOSCOPE (Fig. 9.4) • To increase the contrast and depth of focus while working at higher magnification the aperture knob① can be put in place by rotating it clockwise. -
Page 26: Changing The Binocular Tube (Fig. 10)
User’s Manual eVA 500 / 500D COLPOSCOPE CHANGING THE BINOCULAR TUBE (Fig. 10) • Loosenthe knob①from the top of the head arm ④ to remove the inclined tube 45° ② or the straight tube ③. • When setting up the binocular tube, two plugs should lock into the nuts ⑤ of the magnification unit. -
Page 27: Changing The Objectives & Eyepieces (Fig. 11)
User’s Manual eVA 500 / 500D COLPOSCOPE CHANGING THE OBJECTIVE / EYEPIECES (Fig. 10.1) • The objective (1) has screw type mounting. Unlock it by turning anti-clock wise and lock them by turning clock wise. • Eyepieces (2) are inserted / draw out for changing. -
Page 28: Care & Maintenance (Fig. 12)
Do not use ethanol and spirit. Do not clean products with optical components in a cleaning/disinfecting device or ultra sound bath. LABOMED MaxLite coatings are very resistant. If you clean as described above, the coatings will not be damaged. •... - Page 29 Also use spirits to clean optical components. Dry optical components using a microfiber cloth; dry the rest of the product using a paper towel. Service as and when required should be informed to LABOMED after – sales service department. •...
- Page 30 User’s Manual eVA 500 / 500D COLPOSCOPE Schedule of Autoclavable caps (Fig. 11) 29 Issue 1.0 6169000‐795 eVO 500/500D Printed on May, 2013 ...
-
Page 31: Ambient Requirement
User’s Manual eVA 500 / 500D COLPOSCOPE Ambient Requirement For Operation Temperature +10˚ C…. +40˚ C Rel. humidity 30%..90% (without condensation ) Air Pressure 700hPa…..1,060hPa For transportation and Temperature -40˚C…….+70˚C storage Rel. humidity 10%..100% (without condensation ) Air Pressure 500hPa……1,060hPa... -
Page 32: Technical Specifications
User’s Manual eVA 500 / 500D COLPOSCOPE 15. TECHNICAL SPECIFICATION Item Specification eVA 500 eVA 500D • Stand Star Base Stands with S50 & Star Base Stands with S50 & E50 column, lockable wheels E50 column, lockable wheels •... - Page 33 Our policy is one of continuous development. Labotech Microscopes India Pvt. Ltd., reserves the right to change design and specification without prior notice. Manufactured for: Labo America Inc. U.S.A. 920 Auburn Court Telephone: 510 445 1257 Fremont Fax: 510 991 9862 CA 94538 sales@laboamerica.com...
