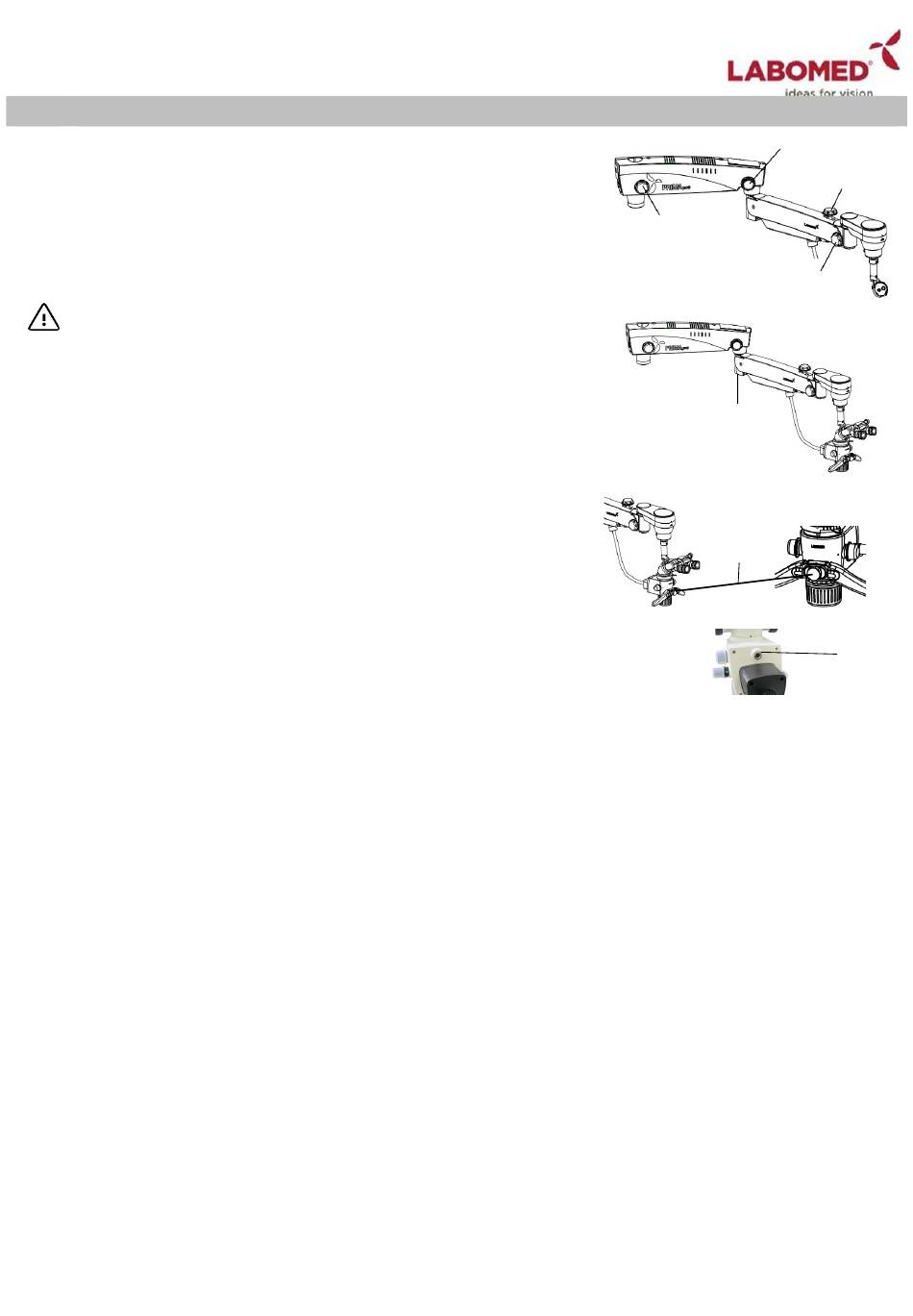

18. CONTROL ELEMENTS
1. ON/OFF SWITCH
It is located on the back of the swivel arm Ref. Fig. 35. At '1'
position, microscope is on and cooling fan starts running.
Keep the intensity control knob at Minimum level before switching
on the system.
To save burning life of LED, switch OFF the appliance if the
microscope is not in use for longer time.
2. INTENSITY CONTROL KNOB
It is located in front of the magnichanger shown as (A) in Fig.-40.
Brightness of field of view can be adjusted as per user comfort
using intensity control knob.
3. 12 VOLT DC CONNECTOR
It is provided as X for camera input supply located at the back of
magnichanger housing. Refer Fig. 41.
4. SWIVEL ARM LOCKING KNOB
This knob helps you to lock the movement of swivel arm at the
desired position after initial focusing of the attendance area by
turning it clockwise, knob is shown as (C) in Fig.- 38.
5. SUSPENSION ARM LOCKING KNOB
This knob shown as B in Fig. 38 locks the rotary movement of the
suspension arm at the desired position by turning it clockwise.
6. SUSPENSION UP/DOWN MOVEMENT LOCKING KNOB
This knob shown as A in Fig. 38 lock the UP/DOWN movement of
the suspension arm at the desired height by turning it clockwise.
7. ADJUSTING TENSION ON ROTARY MOTION OF INCLINED
CARRIER
Refer Section 23 TENSION ADJUSTMENT for more details.
6182001-795 Prima Pro
B
C
Fig. 38
Tension
Adjustment
Fig. 39
A
Fig. 40
Fig. 41
