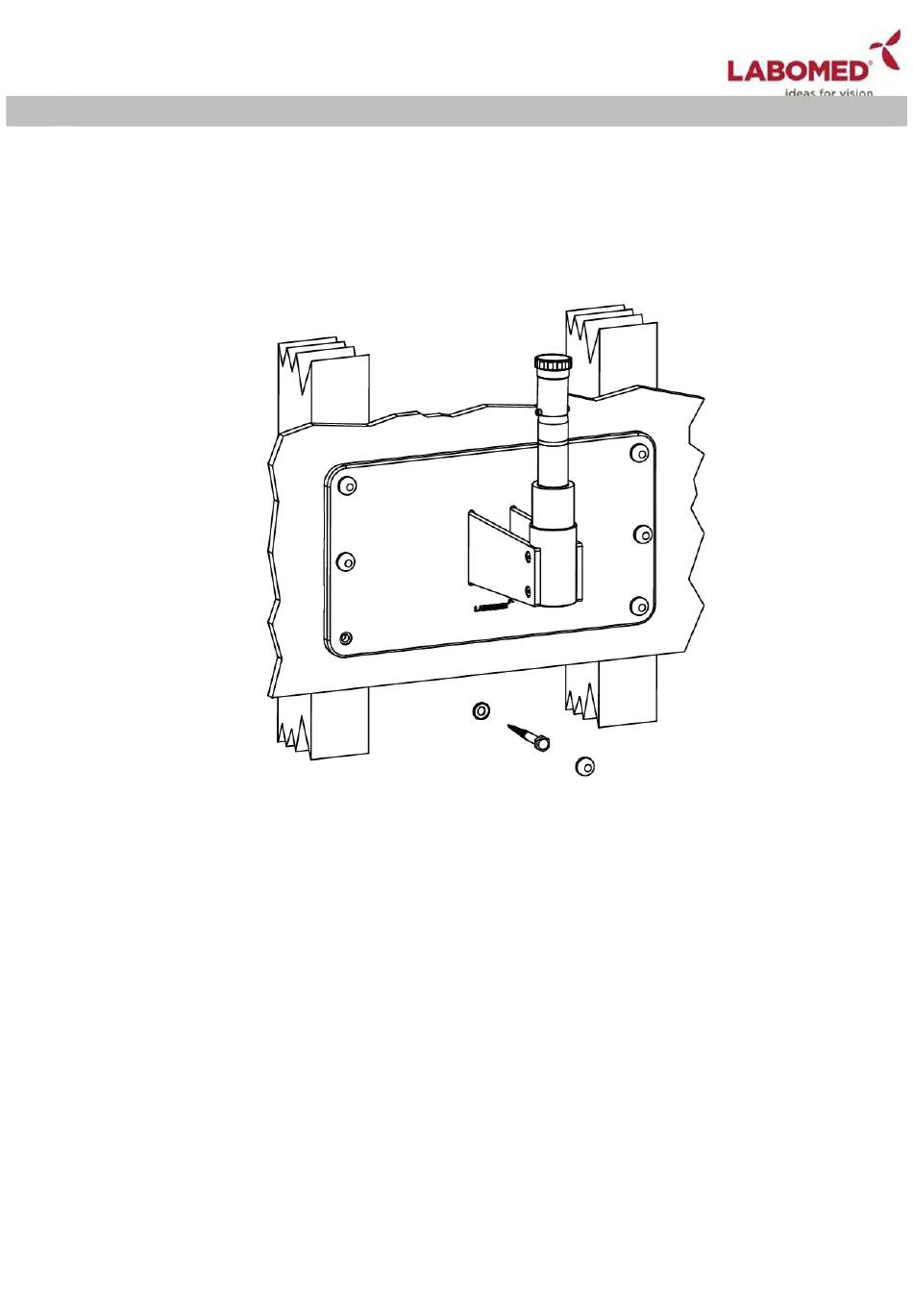

10. WALL MOUNT INSTALLATION PROCEDURE
WALL MOUNT INSTALLATION ON STANDARD SIXTEEN INCH (16'' 406MM) WOODEN WALL
STUD SPACING
For securing the Wall Mount System to construction using wooden wall studs spaced on 16 (406
mm) Inch centre, it is recommended that 3/8" x 4" hex head lag screws are used.
WARNING: THE MOUNTING HARDWARE SUPPLIED FOR WOODEN WALL IS NOT DESIGNED FOR
INSTALLATION TO WALL WITH STEEL STUDS OR TO CINDER BLOCK/MASONRY WALLS.
6182001-795
Fig. 20
Prima Pro
Issue 1.0
Printed on Jan, 2024
