WALL MOUNT INSTALLATION PROCEDURE (continued)

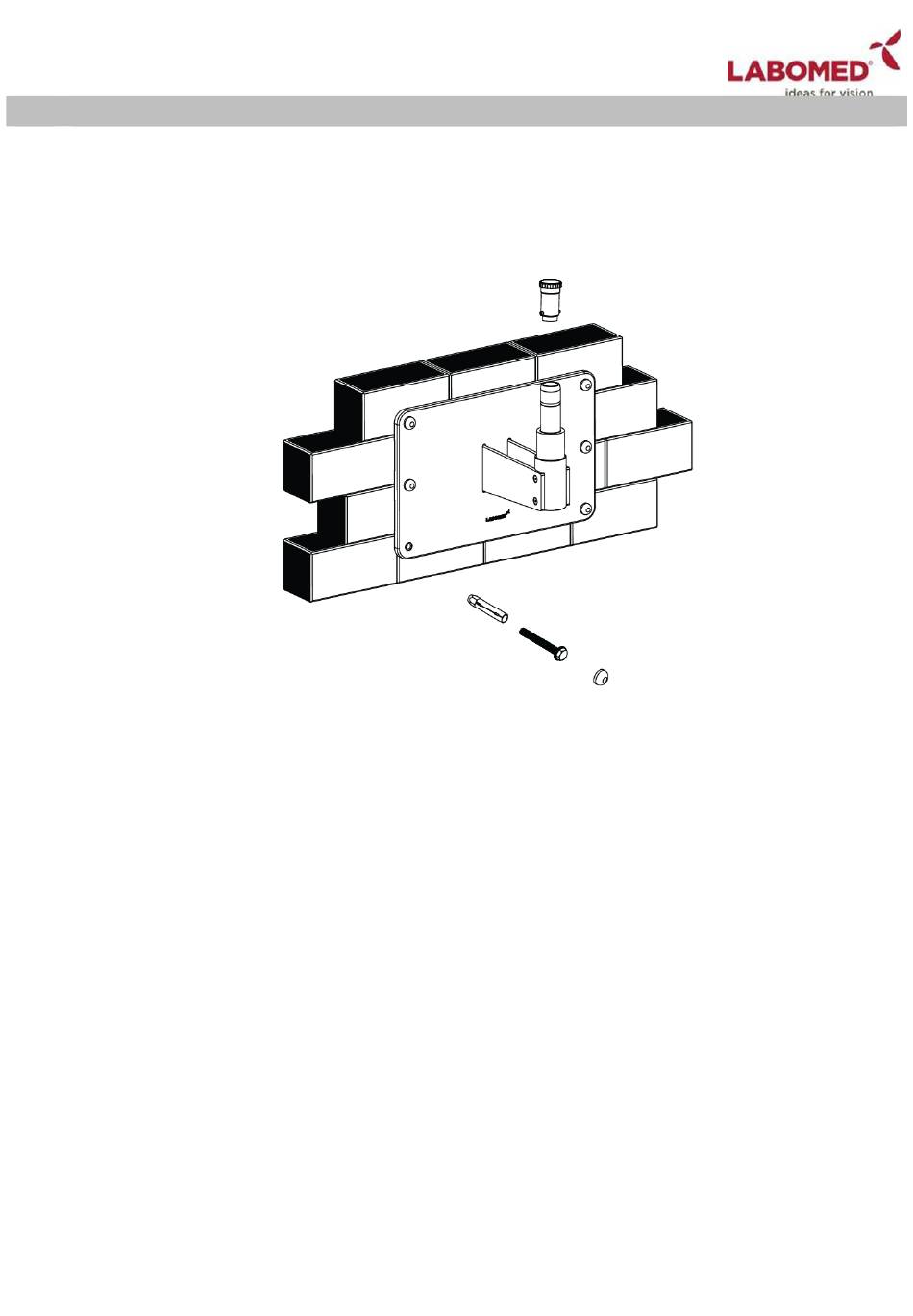

WALL MOUNT INSTALLATION ON SOLID BRICK MASONRY WALL MINIMUM 9'' THICK
For securing this Wall Mount Model to a Solid Brick wall, Use the Six(6) M10 X 75mm RAWL
Anchor bolts provided. See Figure below.
1. Determine the desired location on the wall where the microscope is to be mounted.
2. Place the Paper template against the wall and fix with tape. Mark Six (6) holes ensuring template
is straight.
3. Using a 16mm" masonry drill bit, drill Six (6) 16mm holes min 65mm deep in the wall spaced as
Outlined above.
4. Use 10mm X 75mm long RAWL Anchor bolts.
5. Place the RAWL bolts through the holes and carefully insert the bolts into the wall.
6. Take out the threaded bolt.
7. Position the wall mount against the wall. Place flat washer under head of coach bolt and thread in
the Six (6) RAWL bolts in the wall.
8. Using a 17mm socket and ratchet arrangement, tighten the Six (6) RAWL bolts securing the wall
mount into position. Ensuring the wall mount (top edge and front face) is level.
NOTICE: Shims and shim materials are to be provided by the customer and are not furnished by
Labomed. There are numerous shims materials commercially available and no specific type or
brand name is implied.
6182001-795
Fig. 22
