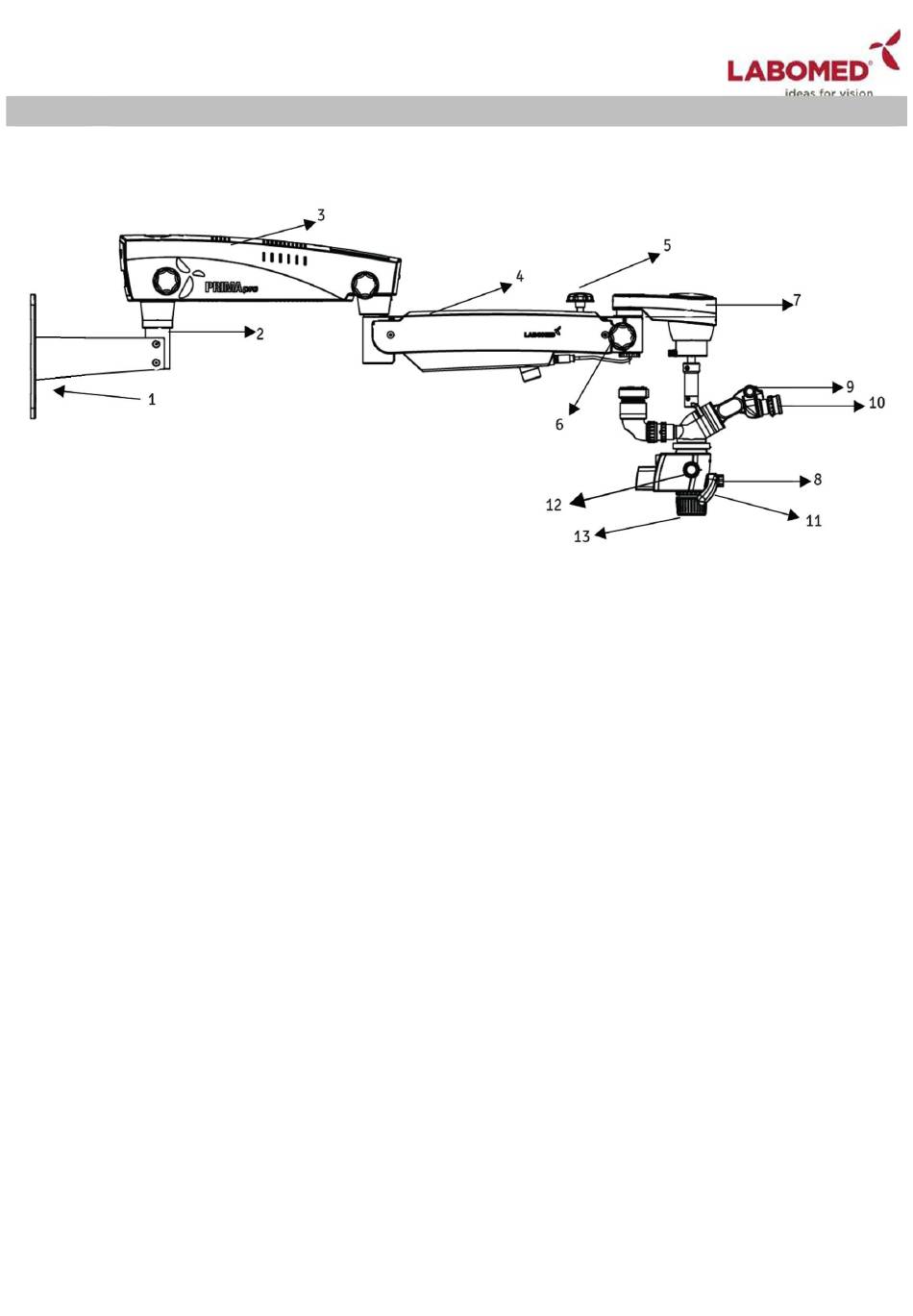

6. PRODUCT DESCRIPTION (WALL MOUNT)
Catalogue No. 6183602
Model: Prima Pro
1. Wall Mount Bracket
2. Mount Shaft
3. Swivel Arm
4. Suspension Arm
5. Suspension Arm Hydraulic Movement Lock Knob
6. Auto Balancing Arm Lock Knob
7. ABA (Auto Balancing Arm) Electromagnetic Clutch
8. Illumination Control Knob
9. Ergo Head 0°-210° Tiltable
10. Eyepieces
11. Both Hands Release (Electromagnetic Clutch)
12. Step magnification knob
13. Common Main Objective With Fine Focusing Ring
6182001-795
Fig. 11
Prima Pro
Issue 1.0
Printed on Jan, 2024
