CEILING MOUNT INSTALLATION (continued)
5.c.
INSTALLING CEILING MOUNT ON CONCRETE CEILING
Fixing of Master Plate:
Use the Paper template provided to mark the position for the anchors of Master Plate.
1.
2.
Drill the Eight (8) mounting holes 14mm diameter and 100mm deep.
3.
Place a 10mm flat washer and a split washer over each of the Eight M10 X 75 hex head RAWL Plug.
4.
Referring flat surface of Master Plate, align 8 holes with the pilot holes in the ceiling.
5.
Insert the hex head RAWL screws into the holes and fully tighten the Master Plate with a 17mm hex socket
spanner.
Installation of Ceiling Mount:
6.
Position the ceiling Mount against the master plate and insert 6 socket head bolts M12 X 40 after aligning
the 6 mounting holes.
7.
Slightly tighten all the bolts using Allen key 10 mm.
8.
Use a level to ensure the column assembly is Levelled vertically. Refer Section "Levelling the ceiling Mount
system" to correct any levelling concerns.
9.
Fully tighten all the bolts with 10mm allen key.
10.
All the procedure from Part 1 to 9 above is the responsibility of the customer to organise. Labomed
representative will complete rest of the microscope Installation after this.
11.
Power up the system with the cable provided. Make sure AC outlet is hospital grade & grounded properly.
12.
Put the drop ceiling tile back into place.
6182001-795

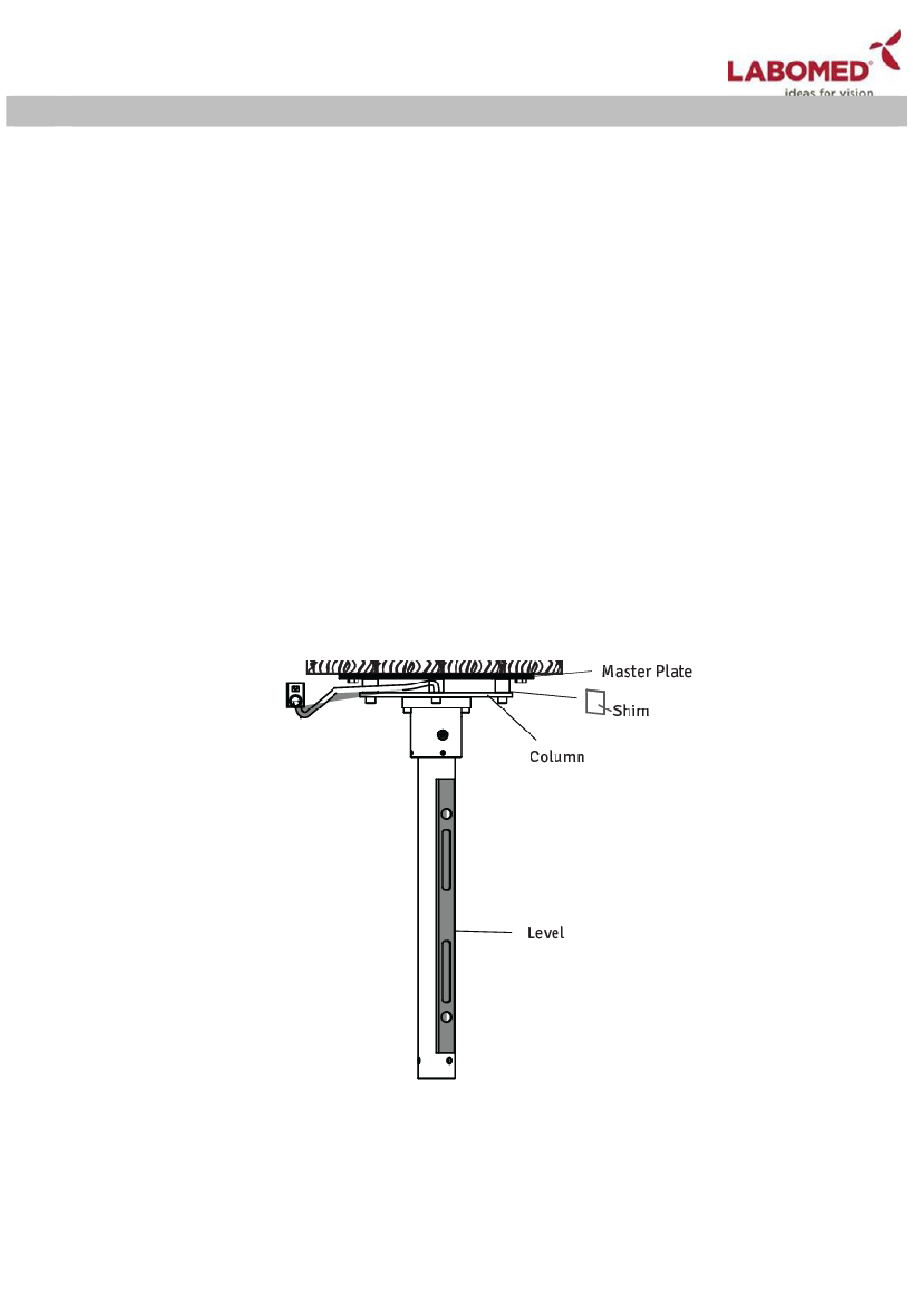

Normal Ceiling Mount
Fig. 10
Prima Pro
Issue 1.0
Printed on Jan, 2024
