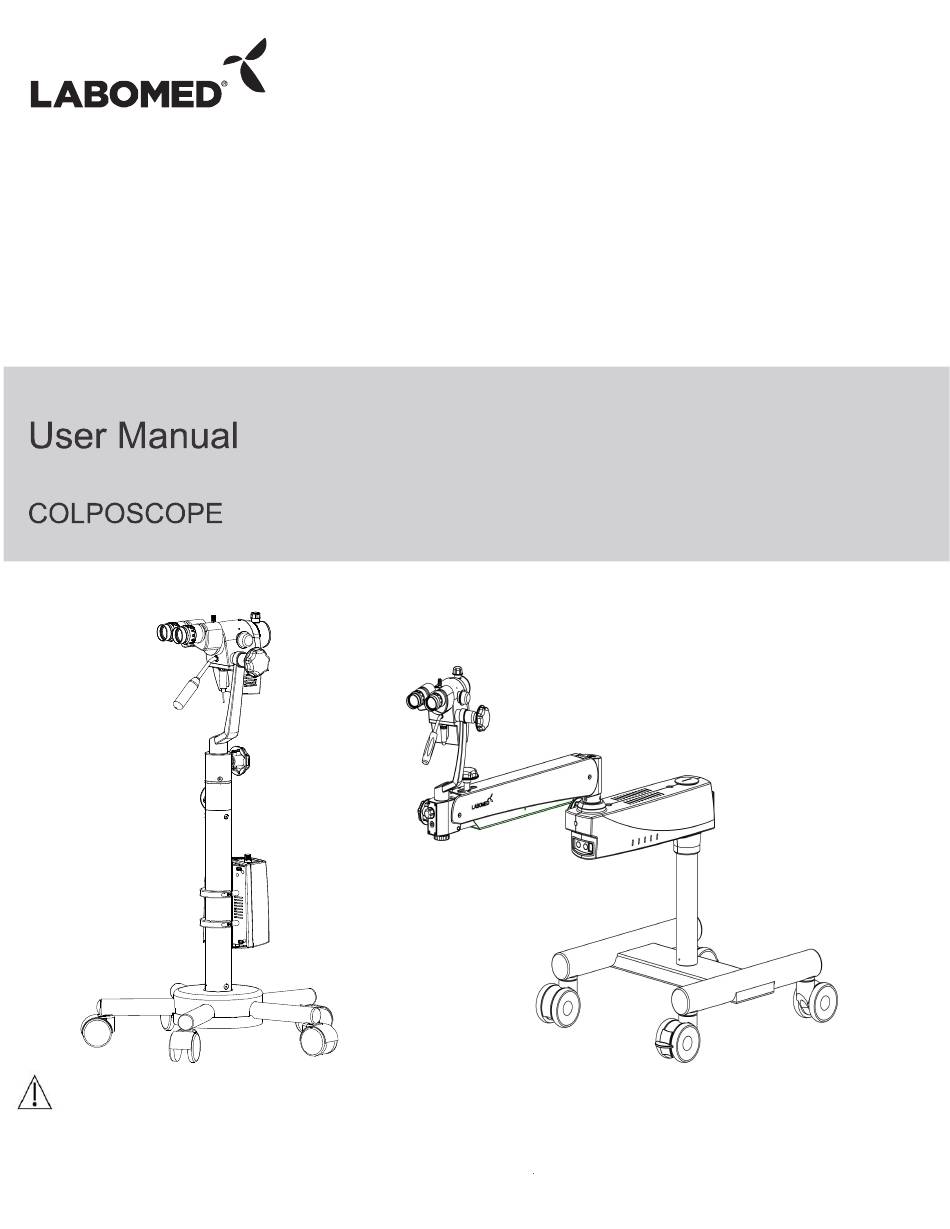

Prima C/ Prima CS
Caution:
U.S. Federal law restricts this device to sale by or on the order of a licensed
physician. Rx only
To ensure proper use of this instrument as well as to avoid injury while operating
instrument, understanding this manual completely before use is highly
recommended.
Part No:6128000-795
Issue on 2.0 Printed
on Oct, 2016
Advertisement
Table of Contents
Related Manuals for Labomed Prima C
Summary of Contents for Labomed Prima C
- Page 1 Prima C/ Prima CS Caution: U.S. Federal law restricts this device to sale by or on the order of a licensed physician. Rx only Part No:6128000-795 To ensure proper use of this instrument as well as to avoid injury while operating Issue on 2.0 Printed...
-
Page 2: Table Of Contents
User’s Manual Prima C/ Prima CS COLPOSCOPE List of Contents Introduction Warning & Caution/Warning labels/Intended use Condition of material at time of supply Installation Instructions Prima C 11 - 12 Mounting of Roller Stand and Column Mounting of Appliance Installation Instructions Prima CS... -
Page 3: Introduction
LABOMED Prima C / Prima CS COLPOSCOPE is an optical instrument used in a medical diagnostic procedure to examine Cervix, Vaginal and Vulva tissue with the aid of illumination techniques and optical stereo microscope. - Page 4 Determination-Appropriate Use Only LABOMED accessories, bases, and source of light may be utilized with LABOMED colposcopes. Restrictions, which are stipulated in the directions for use, are to be considered. The device is designed for application in medical practices and/or clinics.
- Page 5 User’s Manual Prima C/ Prima CS COLPOSCOPE How to read these operating instructions These instructions are structured around the operation of the colposcope, from assembly to the finished system. Basic troubleshooting information is also provided. Our goal is to make these instructions easily understandable and technically feasible.
- Page 6 User’s Manual Prima C/ Prima CS COLPOSCOPE Prima C: Ergonomic stand for easy and accurate positioning. It has a vertical travel of 100 mm. Control knob helps user in achieving the desired height by slightly loosening the swivel arm locking knob and then re-clamping after getting the required height.
- Page 7 User’s Manual Prima C/ Prima CS COLPOSCOPE Colposcope can be positioned easily with the help of a suspension arm within Prima CS: a vertical travel range of 500mm. It can be maneuvered easily with the help of a 980mm long pentographic arm as per user & patient comfort. When not in use, colposcope can be folded easily over the main body to store compactly.
-
Page 8: Warning & Caution/Warning Labels/Intended Use
User’s Manual Prima C/ Prima CS COLPOSCOPE Warnings & Cautions LABOMED is not responsible for the safety and reliability of this instrument when: Assembly, disassembly, repair, or modification is made by unauthorized dealers or persons. • Instrument is not used in accordance with this User’s Guide. - Page 9 CAUTION: THIS INSTRUMENT IS NOT TO BE USED NEAR HIGH-FREQUENCY EMITTING SURGICAL EQUIPMENT. CAUTION: THIS INSTRUMENT IS NOT INTENDED TO BE CONNECTED TO EQUIPMENT OUTSIDE THE CONTROL OF LABOMED OR OTHERWISE MUST BE TESTED TO APPLICABLE IEC OR ISO STANDARDS. CAUTION: HEIGHT ADJUSTMENT KNOB HAS A SPRING LOADED MECHANISM TO ADJUST COLPOSCOPE HEIGHT.
- Page 10 User’s Manual Prima C / CS COLPOSCOPE Warning Labels and Notes Caution Warning Brightness control Accompanying documents must be consulted Catalog number Compliance to medical device directive 93/42/EEC Protective earth This way up- indicates correct upright position of the transport package.
- Page 11 • Intended Use LABOMED colposcopes Prima C / CS is a device designed to permit direct viewing of the tissues of the vagina and cervix by a telescopic system located outside the vagina. It is used to diagnose abnormilities and select areas for biopsy. It helps the user an excellent level of comfort and improves visual acuity during use.
-
Page 12: Condition Of Material At Time Of Supply
User’s Manual Prima C/ Prima CS COLPOSCOPE CONDITION OF MATERIAL AT TIME OF SUPPLY Prima C The appliance is delivered in 6 assembled groups: Mobile supporting Base ( Assembled) as shown in Fig. 1. Page 12 • Column (as shown in Part 1. Page 12) •... -
Page 13: Installation Instructions Prima C
User’s Manual Prima C/ Prima CS COLPOSCOPE INSTALLATION INSTRUCTIONS OF PRIMA C MOUNTING OF ROLLER STAND AND COLUMN (Fig. 1) Insert column① into the mobile base②. • Fasten screw ③ with enclosed hexagon socket wrench to column ①. • The mobile bases have 5 rollers④ out of two have locking breaks(red) •... -
Page 14: Mounting Of Appliance
User’s Manual Prima C/ Prima CS COLPOSCOPE MOUNTING OF APPLIANCE Mount the illumination box ③ to the column against the vertical guide ②. Screws ① to be tighten to hold the box as shown (Fig. 2.1). (Fig 2.1) Insert the arm ④... -
Page 15: Installation Instructions Prima Cs
User’s Manual Prima C/ Prima CS COLPOSCOPE INSTALLATION INSTRUCTIONS OF PRIMA CS Install the Left wheel support (A) and Right wheel support (B) on the centre support base (C) by • tighten the allen screws (1) provided from the bottom of metal plate. Refer Fig. 2.3 Install the column (D) on the base. -
Page 16: Special Instructions
User’s Manual Prima C/ Prima CS COLPOSCOPE • Retrieve the carrier assembly from the packing and follow as below. refer Fig. 2.5 • Install the coupling to the suspension arm by sliding the guiding shaft (5) in to the suspension arm. -
Page 17: Demensions & Weight Prima C
User’s Manual Prima C/ Prima CS COLPOSCOPE DIMENSIONS & WEIGHT (Fig. 2.6) Prima C Colposcope with roller star base stand Total weight: Approx. 45 kg. (Fig. 2.6) Prima C DIMENSIONS & WEIGHT (Fig. 2.6) Prima CS Colposcope with H Base Stand Total weight: Approx. -
Page 18: Electrical Connections Prima C
User’s Manual Prima C/ Prima CS COLPOSCOPE Electrical Connections Prima C Connect the power cable to the AC Inlet socket as 1 in figure number 2.8 below. Switch on the power from on/off switch shown as 1 in figure number 2.9 on page no. 18. -
Page 19: Operating Instructions Prima C
User’s Manual Prima C/ Prima CS COLPOSCOPE OPERATING INSTRUCTIONS Prima C On / off switch shown as ① in fig. 2.9 is located on the upper side of the illumination box. After the appliance is switched on, the green illumination switch diode indicates that the microscope is ready for operation. -
Page 20: Control Elements Prima C / Cs
User’s Manual Prima C/ Prima CS COLPOSCOPE CONTROL ELEMENTS Prima C (Fig. 2.10 & 2.11) Roller stand: 5 rollers to move the appliance and 2 brakes to lock the Appliance (see Fig. 1) Rotating knob to change the Magnification ①. - Page 21 User’s Manual Prima C/ Prima CS COLPOSCOPE Power Supply Box ⑨. Knob for brightness control ⑩. (Fig. 2.11) Control Elements Prima CS Magnification knob 1 9 Suspension arm hydraulic movement knob ⑪. • • Suspension arm spring Tension Adjustment ⑫.
-
Page 22: Instructions For Using Microscope
User’s Manual Prima C/ Prima CS COLPOSCOPE INSTRUCTIONS FOR USING THE MICROSCOPE ADJUSTMENT OF INTERPUPILLARY DISTANCE (Fig. 2.13) Turn the microscope in working position. Inclined tube 45°①: Adjust eyepieces ②to the required IPD by turning the lateral knob③. ... -
Page 23: Changing The Magnification
User’s Manual Prima C/ Prima CS COLPOSCOPE CHANGING THE MAGNIFICATION (Fig. 2.14) Adjust to the highest magnification with any of the rotating knobs ① on the magnification changer. • See to it that the magnification step changer is engaged into its index position, related to the desired •... -
Page 24: How To Focus The Object
User’s Manual Prima C/ Prima CS COLPOSCOPE HOW TO FOCUS THE OBJECT (Fig. 2.15) Bring object into rough focus using arm movements. • Rotate fine focusing knob 2 clockwise or anticlockwise to bring object into sharp focus. • If the object is outside the range of the fine focusing knob, bring the complete microscope in the focus •... -
Page 25: Red Free Image Observation
User’s Manual Prima C/ Prima CS COLPOSCOPE Red free image observation (Fig. 2.16) Swing filter knob (1) to swing in or swing out the red free (Green) filter. This will help in filtering the • red tissue in the image being observed and will highlight the enhance vessel image and the vascular morphology. -
Page 26: Eyepieces With Dioptre
User’s Manual Prima C/ Prima CS COLPOSCOPE EYEPIECES WITH DIOPTER (Fig. 2.17) You can adjust the diopter settings as per your vision correction. • Diopter adjustment is +/- 5 D • (Fig. 2.17) Issue 2.0 Printed on Oct, 2016 6128000-795... -
Page 27: Changing The Objective / Eyepieces
User’s Manual Prima C/ Prima CS COLPOSCOPE CHANGING THE OBJECTIVE / EYE PIECES(Fig. 2.18) The objective (1) has screw type mounting. Unlock it by turning anti-clock wise and lock by • turning clock wise. Eyepieces (2) are insertable. Pull out for changing. -
Page 28: Care And Maintenance
User’s Manual Prima C/ Prima CS COLPOSCOPE CARE & MAINTENANCE (Fig. 11) This instrument is a high grade technological product and not required any special periodical maintenance if handed carefully. To ensure optimum performance and safe working order of the instruments, its safe functioning must be checked once every 12months as per table below. - Page 29 Do not use ethanol and spirit. Do not clean products and optical components in a cleaning/disinfecting device or ultra sound bath. LABOMED MaxLite coatings are fungal resistant. If you clean as described above, the coatings will not be damaged.
-
Page 30: 14. Schedule Of Autoclavable Caps Prima C
User’s Manual Prima C/ Prima CS COLPOSCOPE 14. Schedule of Autoclavable caps Prima C Autoclavable caps: (C1) Part no. 6122015-209 (C2) Part no. 6168000-219 (C3), (C4) Part no. 6168000-213 (Fig. 2.19) Issue 2.0 Printed on Oct, 2016 6128000-795 Prima C/CS... -
Page 31: 15. Schedule Of Autoclavable Caps Prima Cs
User’s Manual Prima C/ Prima CS COLPOSCOPE 15. Schedule of Autoclavable caps Prima CS Autoclavable caps: (C5), (C6), (C8) Part no. 6122015-209 (C7) Part no. 6168000-219 (C9), (C10), (C11), (C12) Part no. 6168000-213 Issue 2.0 Printed on Oct, 2016 6128000-795... -
Page 32: Ambient Requirement
User’s Manual Prima C/ Prima CS COLPOSCOPE Ambient Requirement For Operation Temperature +10˚ C…. +40˚ C Rel. humidity 30%..90% (without condensation ) Air Pressure 700hPa…..1,060hPa For transportation and Temperature -40˚C…….+70˚C storage Rel. humidity 10%..100% (without condensation ) Air Pressure 500hPa……1,060hPa 17. -
Page 33: Technical Specifications Prima C / Cs
User’s Manual Prima C/ Prima CS COLPOSCOPE 18. TECHNICAL SPECIFICATION Prima C Star Base Stand & Column, lockable wheels. • Straight Observation tube, interpupillary distance 50-75mm. Optional: 45˚ inclined. • WF 10/18mm FOV, focusable eyepieces with retractable eye guards, diopter adjustment +/- 5mm •... - Page 34 Our policy is one of continuous development. Labotech Microscopes India Pvt. Ltd., reserves the right to change design and specification without prior notice. Manufactured for: Labo America Inc. U.S.A. 920 Auburn Court Telephone: 510 445 1257 Fremont Fax: 510 991 9862 CA 94538 sales@laboamerica.com...
