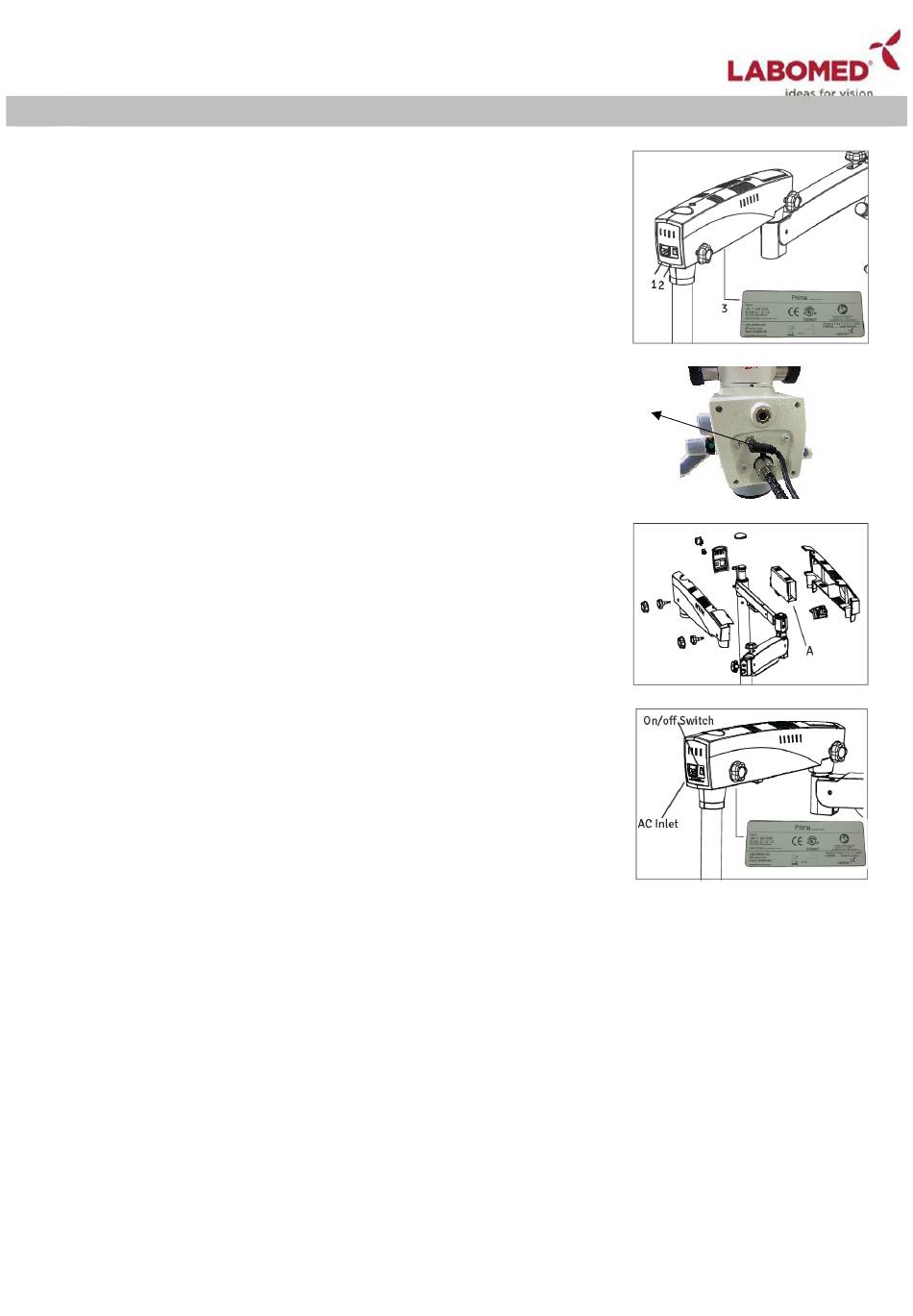

17. ELECTRICAL CONNECTIONS
1. Connect the power cable to the AC inlet socket (1) provided on
the back of the swivel arm as shown in the fig.35. Switch on the
power from on/off switch (2).
Connect 2 Pin connector A to the inlet power up the LED System of
2.
Microscope. Refer Fig. 35a.
Note: Power supply is designed with universal input 100V - 240V
AC, 50/60HZ. To plug in follow instruction on electrical label
provided at bottom of the arm as shown (3) here in Fig.35.
Note: If Voltage fluctuates more than +/- 10% of the rated voltage
at the place of installation use voltage stabilizer to save the power
supply.
1. REPLACING THE ILLUMINATION SOURCE
Switch off the microscope. Open the swivel arm covers and replace
the illumination assembly (A) with new assembly. Secure back the
arm covers. Refer Fig. 36.
2. FUSE REPLACEMENT
The fuse is located with the AC inlet, provided near the on/off
switch. Use a flat head screw driver to open the fuse compartment.
Two fuses are provided in this, i.e. one is live fuse and second as
spare fuse. Replace the blown fuse with live fuse and secure back
the fuse compartment. For fuse replacement refer label shown in
fig.37.
6182001-795
Prima Pro
Fig. 35
A
Fig. 35a
Fig. 36
Fig. 37
Issue 1.0
Printed on Jan, 2024
