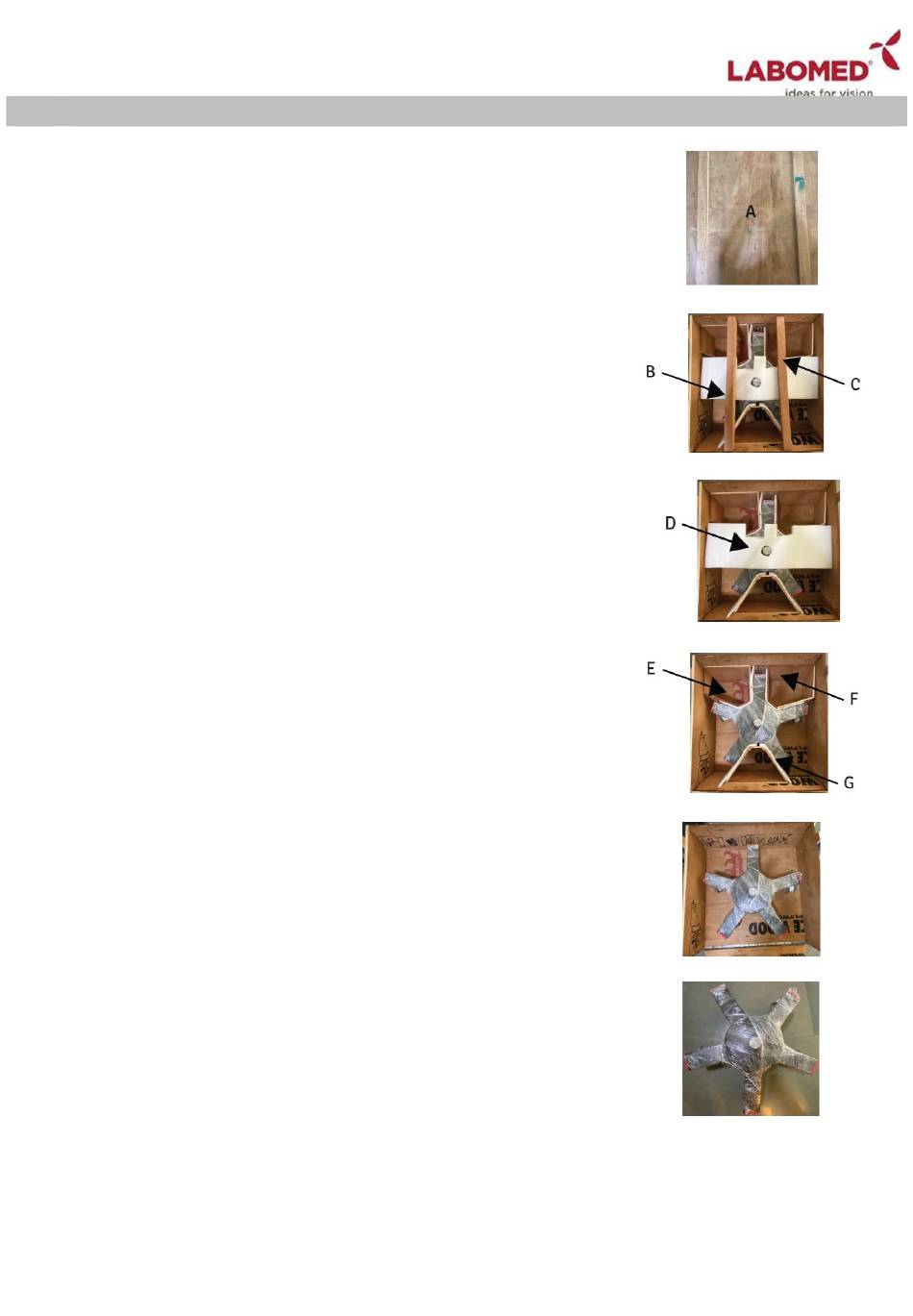

16. INSTALLATION OF BASE (MOBILE STAND)
1. Open the Wooden box containing Assembled Star Base
Bottom shown as A in Fig. 24.
2. Remove the wooden supports tightened with star head
screws shown as B and C in Fig. 25.
3. Remove thermocole sheet shown as D in Fig. 26.
4. Remove the three wooden side supports shown as E, F and G in
Fig. 27.
5. Take out the Star Base from the wooden box and place it on the
floor shown in. Fig. 28 and Fig.29 .
6182001-795 Prima Pro
Fig. 24
Fig. 25
Fig. 26
Fig. 27
Fig. 28
Fig. 29
