Inputting Auxiliary Areas - Omron CP1E - INTRODUCTION Introduction Manual

4
4-5 Inputting Programs

4-5-6 Inputting Auxiliary Areas

4
70
SYSMAC CP1L/CP1E Introduction Manual
Auxiliary area is a relay with a specific purpose.
The first cycle flag will be ON for only 1 cycle after the PLC has been powered ON.
Here, it will be used to reset the counter when CP1L is powered ON.
1.

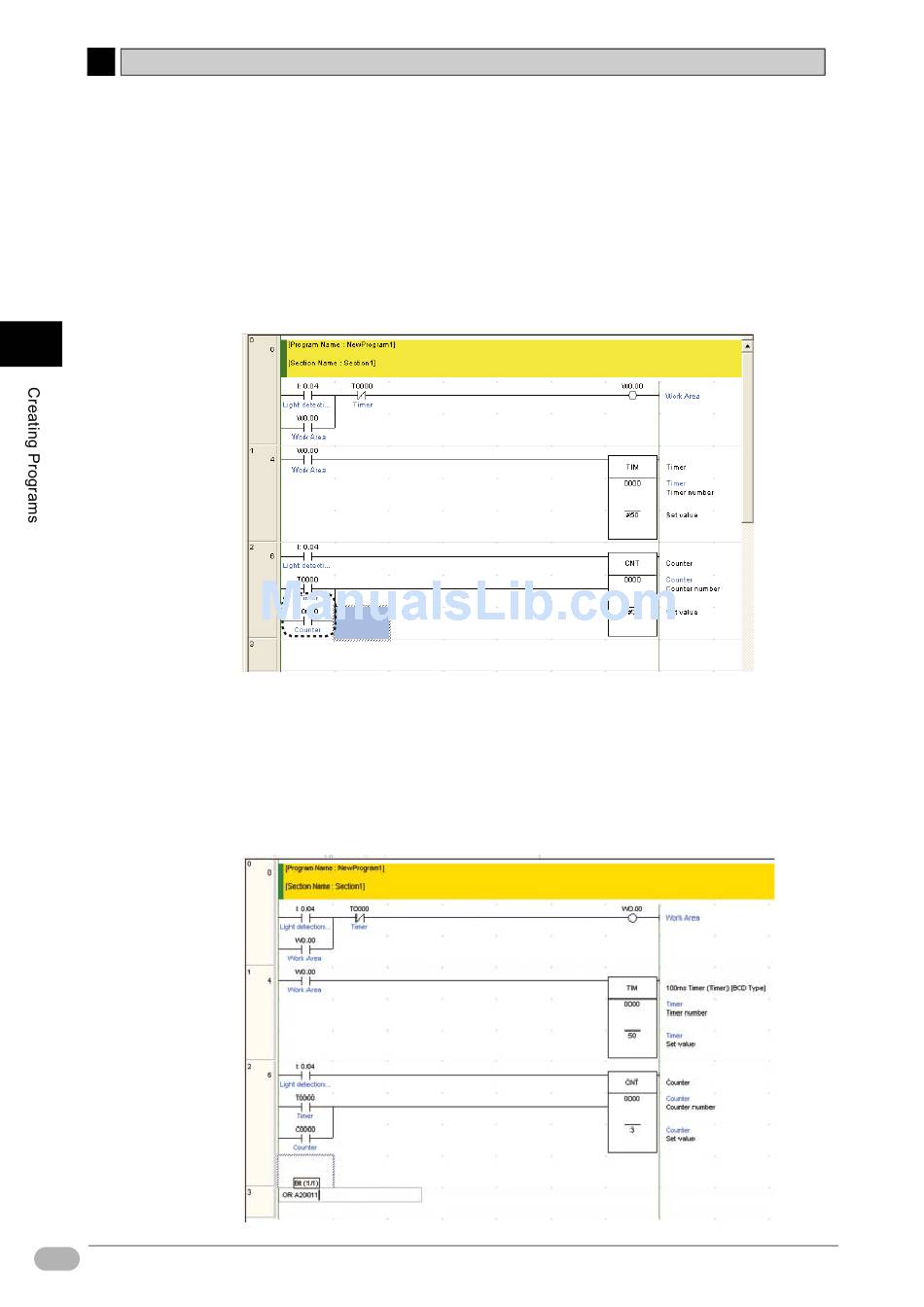

Press the [W] key. Input an OR circuit contact " C0000 " .
A space for inserting an OR circuit will be created.
For details on inputting a contact, refer to 4-5-2 Inputting Contacts.
2.
Press the left arrow key.
3.
Press the [W] key.
The Operand input box will be displayed.
4.
Input address " A20011 " . Press the [Enter] key.
