4-5-2 Inputting Contacts

Inputting Contacts
4
56
SYSMAC CP1L/CP1E Introduction Manual

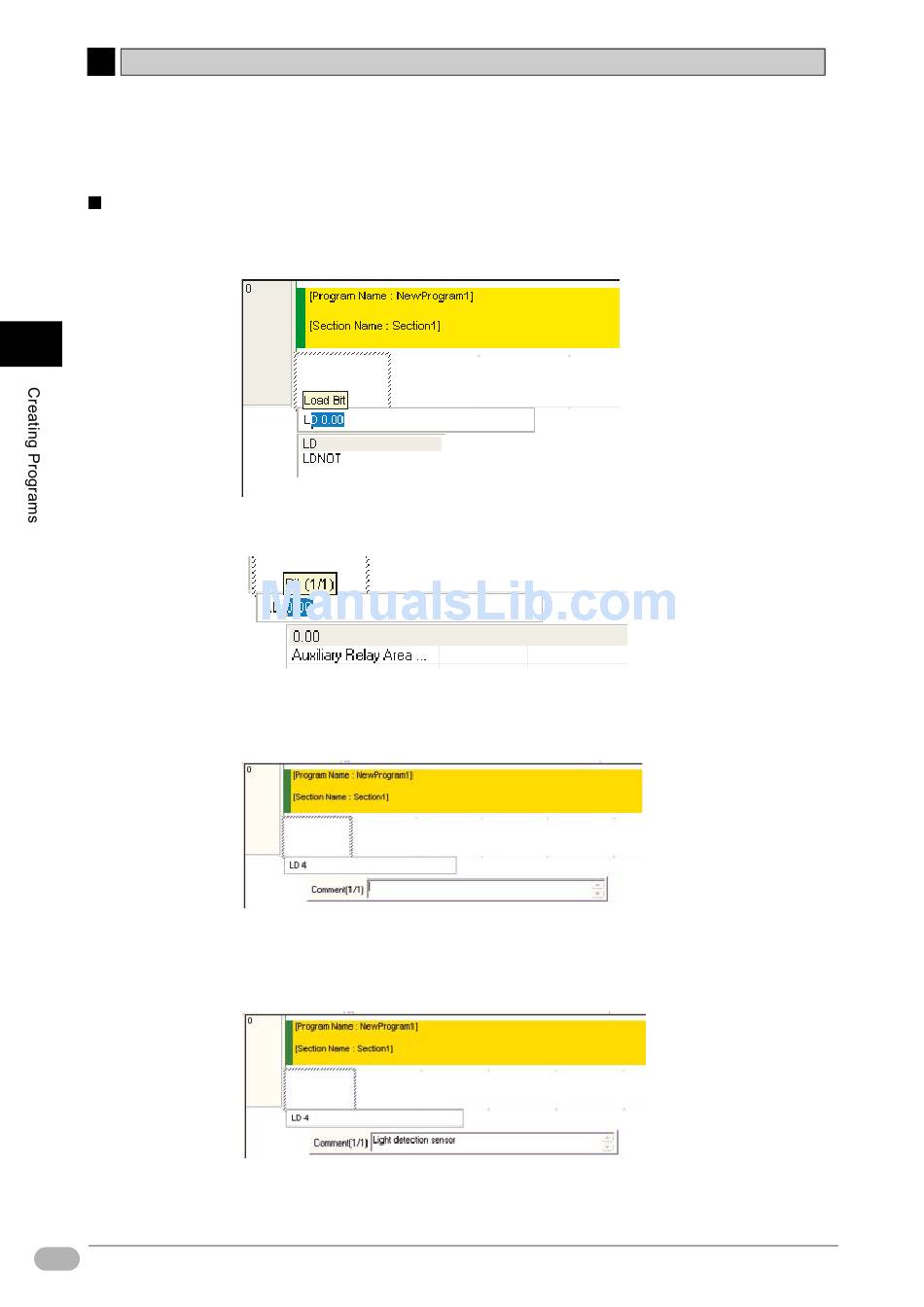

Input a contact. For details on ladder programs, refer to 4-2-2 Ladder Program.
1.
Press either the [L] or [C] key.
"LD 0.00" will be displayed.
2.
Press the [Enter] key.
"Bit (1/1)" will be displayed and "0.00" will be displayed in reverse video.
3.
Input address "4". Press the [Enter] key.
"4" is entered. The Comment dialog box will be displayed.
4.
Input "Light detection sensor" as the I/O comment. Press the [Enter] key.
A contact representing input from the light detection sensor will be displayed on the
ladder program.
Next, input an OR circuit.
