A-4 CP1L Programming Examples
Programming Example

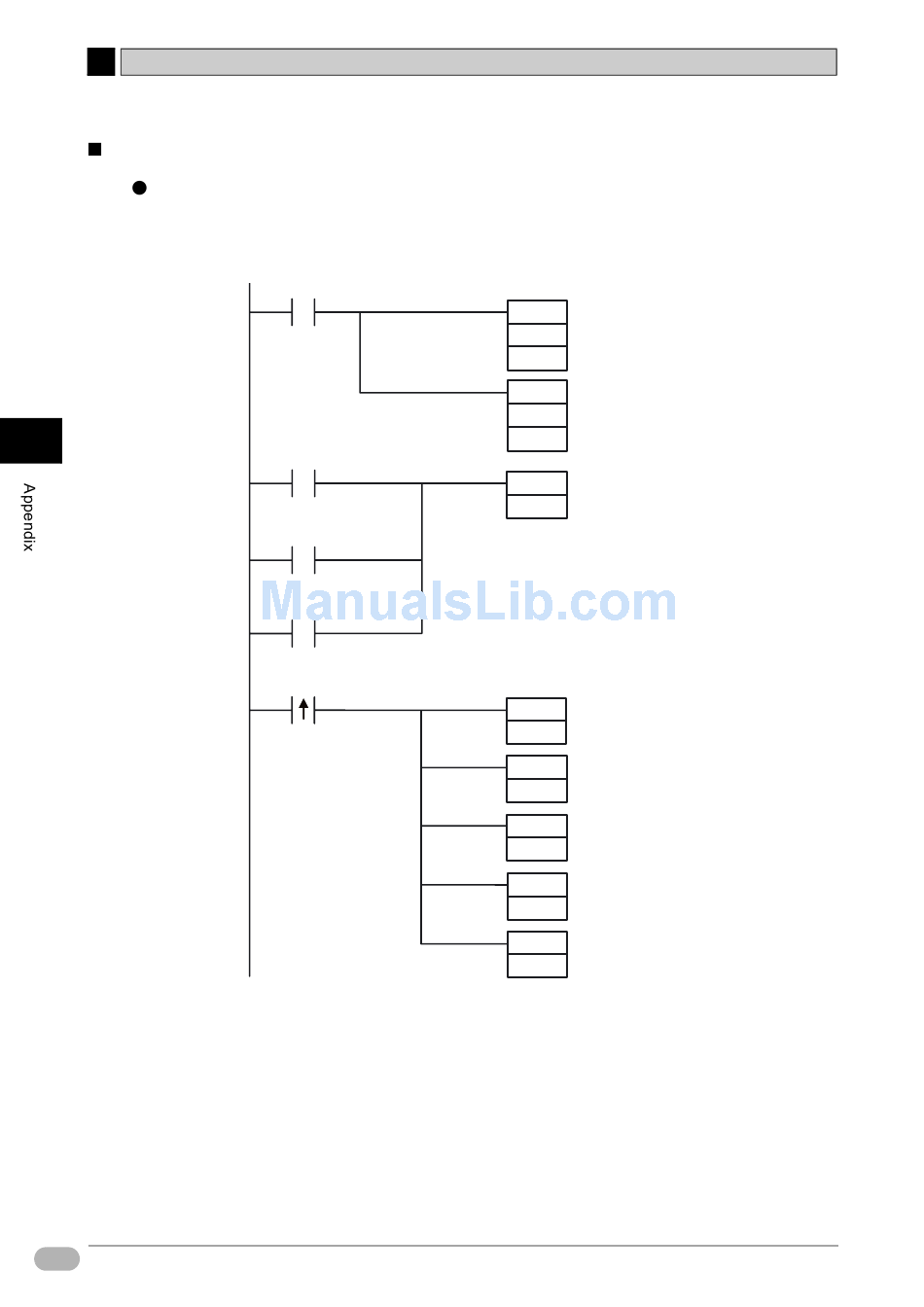

Ladder Program
A
130
SYSMAC CP1L/CP1E Introduction Manual
MSKS (interrupt mask set) instructions will be used to assign the "up" specification
to the interrupt input, and to set the interrupt permission for enabling the interrupt
inputs.
P_First_Cycle
100.02
NG output sensor input 1
100.03
NG output sensor input 2
100.04
NG output sensor input 3
0.05
RESET input
Interrupt input 0
MSKS(690)
(CP1E: Interrupt input 4)
110(114)
#0 Up specification for input
MSKS(690)
Interrupt input 0
(CP1E: Interrupt input 4)
100(104)
#0
Allow interrupt
SET
100.01
RSET
100.00
RSET
100.01
RSET
100.02
RSET
100.03
RSET
100.04
