Inputting Output Coils - Omron CP1E - INTRODUCTION Introduction Manual

4
4-5 Inputting Programs

4-5-3 Inputting Output Coils

4
60
SYSMAC CP1L/CP1E Introduction Manual

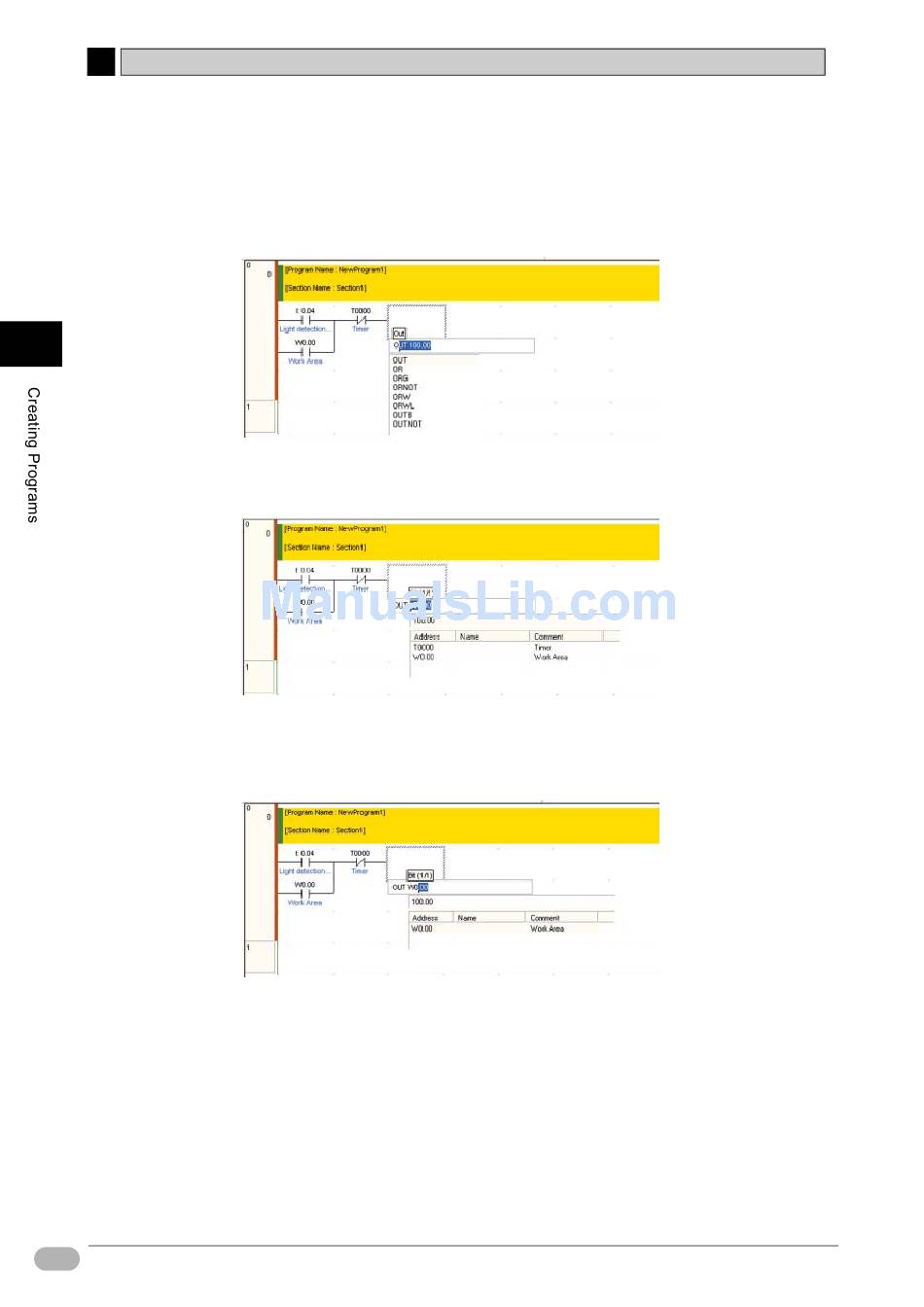

Input an output coil for the work area.
1.
Press the [O] key.
"OUT 100.00" will be displayed.
2.
Press the [Enter] key.
"Bit (1/1)" will be displayed and "100.00" will be displayed in reverse video.
3.
Input address " W0 " . Press the [Enter] key.
"W0" is entered. The output coil input for the work area is complete with the I/O
comment already entered.
