Omron CP1E - INTRODUCTION Introduction Manual page 33

1
3

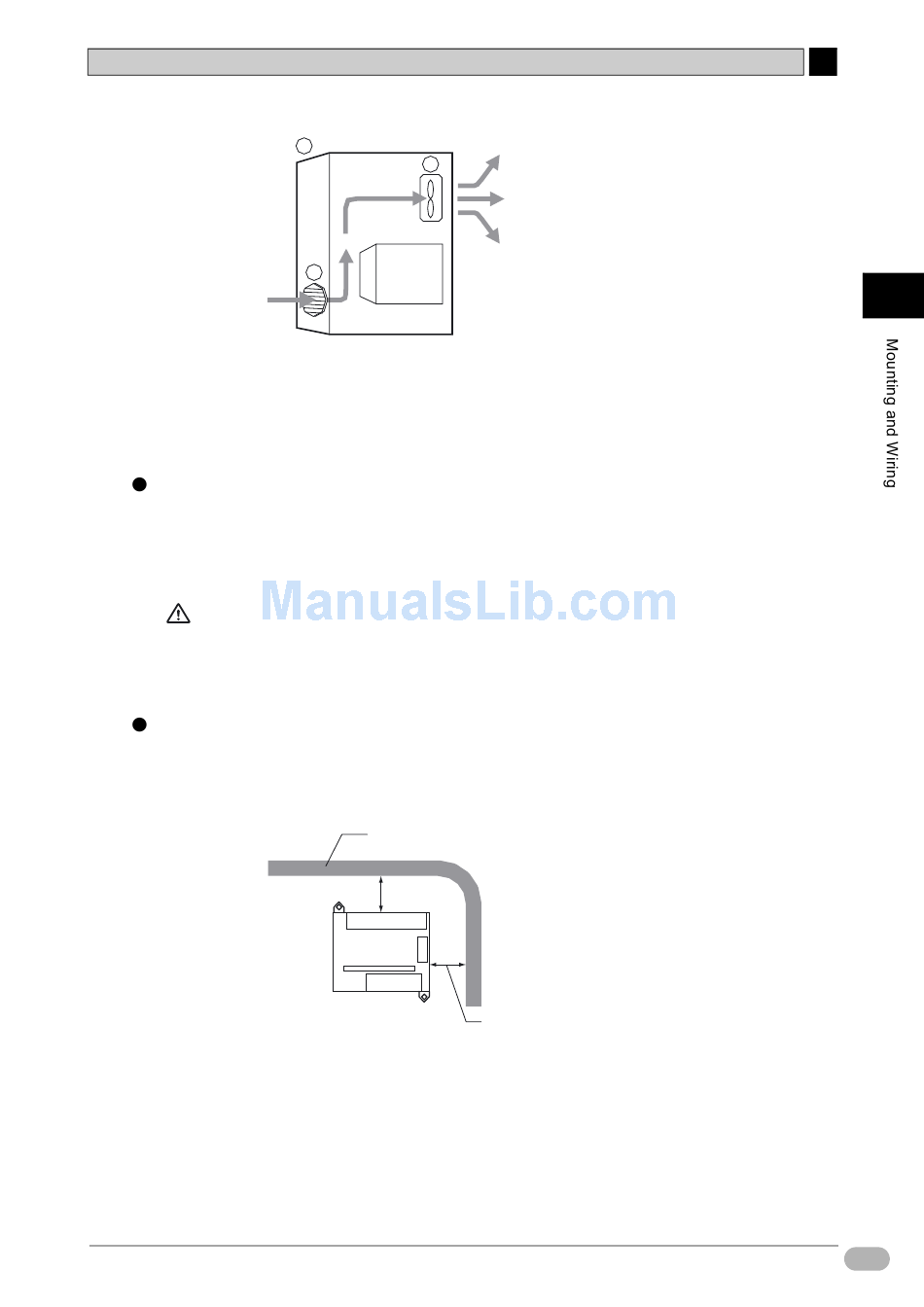

(1) Control panel
(2) Fan
(3) Louver
Accessibility for Operation and Maintenance
• For safety during operation and maintenance, separate the unit as far as
possible from high-voltage equipment and power machinery.
• For ease of operation, mount the unit onto the control panel at a height of
1,000 to 1,600mm.
When power is ON or has just been turned OFF, do not touch the power supply,
Caution
I/O terminals, or the surrounding areas. Doing so may result in burns.
After turning the power OFF, wait for the unit to cool down sufficiently before
touching it.
Improving Noise Resistance
• Avoid installing into a cabinet, which also has high-voltage equipment
installed.
• Secure at a distance of 200mm or more from power lines.
200mm min.
• Properly ground the mounting plate between the unit and the mounting
surface.
2
CP1L
Power Line
CP1L
200mm min.
3-1 Installation Notes
SYSMAC CP1L/CP1E Introduction Manual
3
3
31
