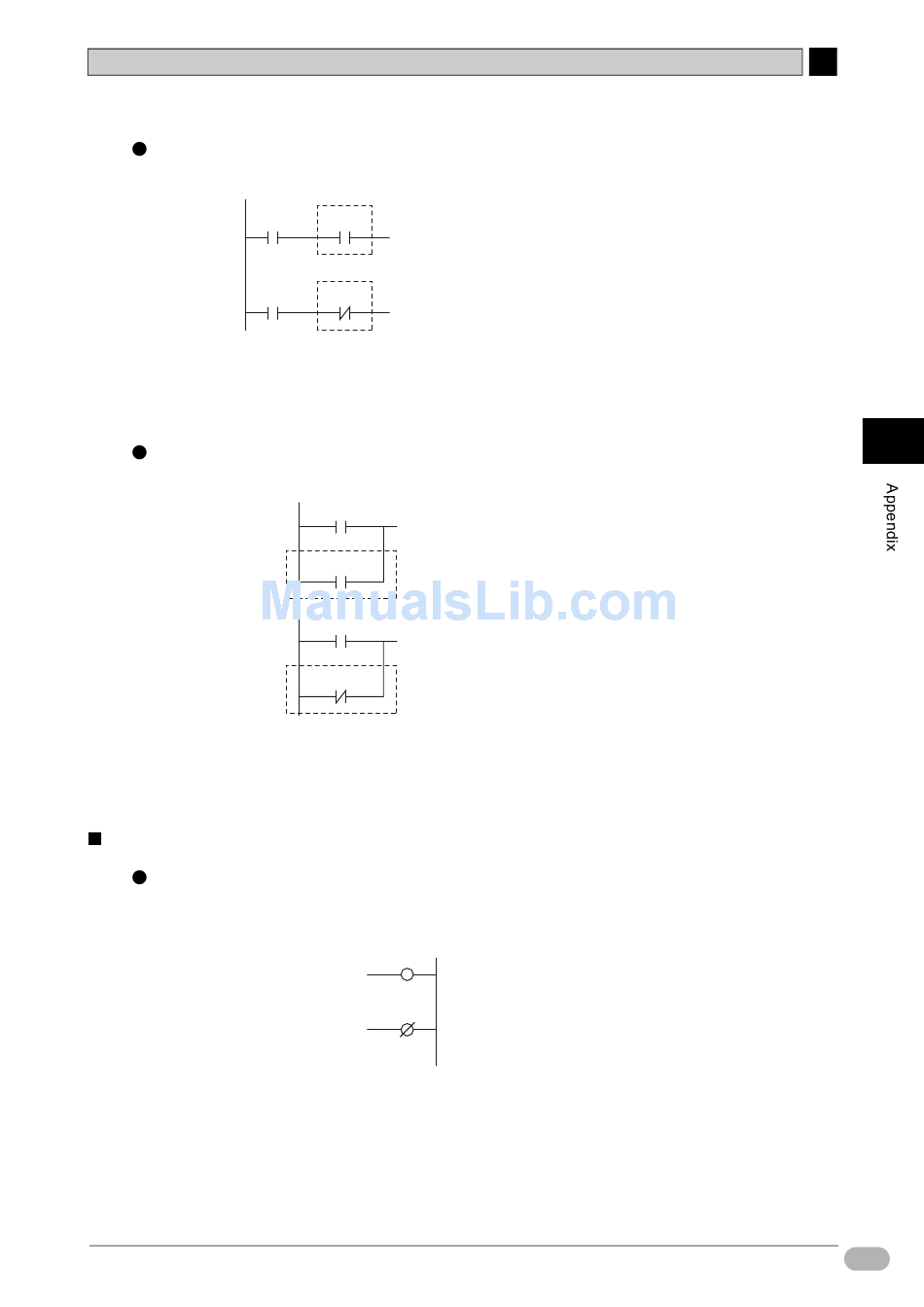

AND / AND NOT Instructions
Use for contacts connected in series.
000000
000001
Note There is no limit on the number of contacts that can be connected by AND/AND
NOT instructions.
OR / OR NOT Instructions
Use for contacts connected in parallel.
Bus bar
Note There is no limit on the number of contacts that can be connected by OR/OR NOT
instructions.
Writing Relay Coils
OUT / OUT NOT Instructions
OUT instructions turn a relay coil ON when the execution condition is ON. OUT
NOT instructions turn a relay coil OFF when the execution condition is ON.
Execution condition
Execution condition
Note Do not use coils with the same relay number for OUT and OUT NOT
simultaneously. Doing so will result in a "duplicated coil" program error.
000002
000003
000000
000004
000001
000005
000100
000101
A-2 Instructions
