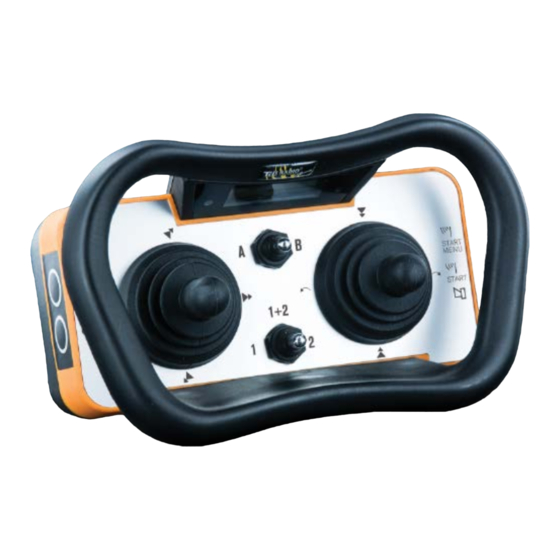

Tele Radio TG-T12-20 Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Tele Radio Manuals
  4. Remote Control
  5. TG-T12-20
  6. Installation instructions manual

Tele Radio TG-T12-20 Installation Instructions Manual

Industrial radio remote controls
Hide thumbs Also See for TG-T12-20:
Table of Contents

Advertisement

Quick Links

Installation instructions
TG-T12-20 (TG-TX-JDL20), TG-T12-21 (TG-TX-JDL21), TG-T12-22 (TG-TX-JDL22), TG-T12-23 (TG-TX-JDL23),
           T G-T12-24 (TG-TX-JDL24), TG-T12-25 (TG-TX-JDL25), TG-T12-30 (TG-TX-JDR20), TG-T12-31 (TG-TX-JDR21),
           T G-T12-32 (TG-TX-JDR22), TG-T12-33 (TG-TX-JDR23), TG-T12-34 (TG-TX-JDR24), TG-T12-35 (TG-TX-JDR25),
           T G-R4-1 (TG-RX-MNL7), TG-R4-3 (TG-RX-MNR7), TG-R4-5 (TG-RX-MNP7), TG-R4-46 (TG-RX-MDL12),
       T G-R4-48 (TG-RX-MDR12), TG-R4-50 (TG-RX-MDP12), TG-R4-6 (TG-RX-MDL17), TG-R4-8 (TG-RX-MDR17),
         T G-R4-10 (TG-RX-MDP17), TG-R4-26 (TG-RX-MNLCAN), TG-R4-28 (TG-RX-MNRCAN), TG-R4-30 (TG-RX-MNPCAN),
         T G-R4-41 (TG-RX-MNLJ1939), TG-R4-43 (TG-RX-MNRJ1939), TG-R4-45 (TG-RX-MNPJ1939), TG-R4-36 (TG-RX-MNLANA),
IM-TG2-RX005-A07-EN
       T G-R4-38 (TG-RX-MNRANA), TG-R4-40 (TG-RX-MNPANA)
       L ANGUAGE: English (original)





Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG-T12-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Tele Radio TG-T12-20

Summary of Contents for Tele Radio TG-T12-20

  • Page 1       Installation instructions   TG-T12-20 (TG-TX-JDL20), TG-T12-21 (TG-TX-JDL21), TG-T12-22 (TG-TX-JDL22), TG-T12-23 (TG-TX-JDL23),            T G-T12-24 (TG-TX-JDL24), TG-T12-25 (TG-TX-JDL25), TG-T12-30 (TG-TX-JDR20), TG-T12-31 (TG-TX-JDR21),            T G-T12-32 (TG-TX-JDR22), TG-T12-33 (TG-TX-JDR23), TG-T12-34 (TG-TX-JDR24), TG-T12-35 (TG-TX-JDR25),            T G-R4-1 (TG-RX-MNL7), TG-R4-3 (TG-RX-MNR7), TG-R4-5 (TG-RX-MNP7), TG-R4-46 (TG-RX-MDL12),        T G-R4-48 (TG-RX-MDR12), TG-R4-50 (TG-RX-MDP12), TG-R4-6 (TG-RX-MDL17), TG-R4-8 (TG-RX-MDR17),           T G-R4-10 (TG-RX-MDP17), TG-R4-26 (TG-RX-MNLCAN), TG-R4-28 (TG-RX-MNRCAN), TG-R4-30 (TG-RX-MNPCAN),          T G-R4-41 (TG-RX-MNLJ1939), TG-R4-43 (TG-RX-MNRJ1939), TG-R4-45 (TG-RX-MNPJ1939), TG-R4-36 (TG-RX-MNLANA),   ...

  • Page 2: Table Of Contents

    CONTENTS Chapter 1: CUSTOMER INFORMATION Chapter 2: SYSTEM INFORMATION Chapter 3: PRODUCT PAGES TG-RX-MNL7, TG-RX-MNR7, TG-RX-MNP7 Base board receiver TG-RX-MDL12, TG-RX-MDR12, TG-RX-MDP12 base board receiver with a relay expansion board TG-RX-MDL17, TG-RX-MDR17, TG-RX-MDP17 base board receiver with a relay expansion board TG-RX-MNLANA, TG-RX-MNRANA, TG-RX-MNPANA base board receiver with an expan- sion board...

  • Page 3: Chapter 1: Customer Information

    During the guarantee/ warranty period, Tele Radio AB may replace the product or faulty parts with new. Work under guarantee/ warranty must be carried out by Tele Radio AB or by an authorized service center specified by Tele Radio AB. Contact your Tele Radio AB representative if you need support or service.
  • Page 4 WARNINGS & RESTRICTIONS   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.   NOTE! We recommend that the functionality of the STOP button is being tested at a regular basis: At a minimum, when used for 200 hours.

  • Page 5: Chapter 2: System Information

    Chapter 2: SYSTEM INFORMATION CHAPTER 2: SYSTEM INFORMATION   APPLICATION AREA FOR THE TIGER SYSTEM   The Tele Radio AB Tiger remote control systems are aimed for remote controlling of lifting or mobile equipment where a high safety level is required.       AUTHORIZATION BY PIN CODE  ...
  • Page 6 SAFETY INFORMATION (IN ENGLISH)   System requirements The product holds a safety-related stop function that complies with the requirements for SIL3 according to IEC61508: The stop function deactivates all relays on the receiver when the stop button on the transmitter is pressed. The stop function is available on all Tiger systems. The maximum delay of the stop function is 500 ms.

  • Page 7: Chapter 3: Product Pages

    Chapter 3: PRODUCT PAGES CHAPTER 3: PRODUCT PAGES   ANTENNA   NOTE! For optimum performance: Place well away from metal objects, such as metal girders, high- voltage cables and other antennas.   NOTE! For optimum performance, place the antennas as far away from each other as possible. The recommended distance is more than 1 meter.

  • Page 8: Tg-Rx-Mnl7, Tg-Rx-Mnr7, Tg-Rx-Mnp7 Base Board Receiver

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 9 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver        ...
  • Page 10 FUNCTION LEDS INDICATION IN OPERATING MODE   Function LED Off On Indicates... X   No transmitter is registered 1 (red)   X One or more transmitters are registered X   No transmitter is logged in 2 (yellow)   X One transmitter is logged in 3 (green)  ...
  • Page 11 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 7 (potential free*, 10A, 250VAC) Input power 12-24V AC/DC, 48-230V AC Digital inputs Transistor output Duplex communication Possible Max. number of registered transmitters 15 (only one transmitter at a time) IP class Size 176 x 126 x 75 mm./ 6.9 x 5 x 2.9 in.

  • Page 12: Tg-Rx-Mdl12, Tg-Rx-Mdr12, Tg-Rx-Mdp12 Base Board Receiver With A Relay Expansion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 13     Expansion board:   15. Relay LEDs 10-15 (LED 16-19 not used) 19. Function button (Cancel) 16. LEDs representing stop relays 1-2 and func- 20. Programming connector tion relays 1-7 on the base board 17. Function relays 10-15 21. Power LED (yellow) 18.
  • Page 14 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver        ...
  • Page 15 BASE BOARD   R ELAY LEDS   These LEDs light when the corresponding stop and function relays on the base board are activated. See list for corresponding base board relay.   LED 1 = function relay 1   LED 2 = function relay 2  ...
  • Page 16 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 12 (potential free*, 10A, 250VAC) Input power 12-24V AC/DC, 48-230V AC Duplex communication Possible Max. number of registered transmitters 15 (only one transmitter at a time) IP class Size 176 x 126 x 75 mm./ 6.9 x 5 x 2.9 in.

  • Page 17: Tg-Rx-Mdl17, Tg-Rx-Mdr17, Tg-Rx-Mdp17 Base Board Receiver With A Relay Expansion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 18     Expansion board:   15. Terminal block for digital inputs 19. Select button (OK) 16. Relay LEDs 10-19 20. Function button (Cancel) 17. Function relays 10-19 21. Programming connector 18. Relay LEDs 1-9 22. Power LED (yellow) - 18 -...
  • Page 19 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver        ...
  • Page 20 TERMINAL BLOCK FOR MIXED I/O     32. +12V DC 38. Digital input 2 33. +5V DC 39. GND 34. GND 40. +3.3V DC 35. GND 41. RS485A- 36. Digital input 1 42. RS485B+ 37. Transistor output 43. GND       FUNCTION LEDS INDICATION IN OPERATING MODE   Function LED Off On Indicates...
  • Page 21 BASE BOARD   R ELAY LEDS   These LEDs light when the corresponding stop and function relays on the base board are activated. See list for corresponding base board relay.   LED 1 = function relay 1   LED 2 = function relay 2  ...
  • Page 22 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 17 (potential free*, 10A, 250VAC) Input power 12-24V AC/DC, 48-230V AC Digital input Transistor output Duplex communication Possible Max. number of registered transmitters 15 (only one transmitter at a time) IP class Size 176 x 126 x 75 mm./ 6.9 x 5 x 2.9 in.

  • Page 23: Tg-Rx-Mnlana, Tg-Rx-Mnrana, Tg-Rx-Mnpana Base Board Receiver With An Expan- Sion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 24   LED8 21 22 86 87 88 89 90 91 92 93 94 95 96 97 98 99 32 33 34 35 36 37 38 39 40 41 42 43 32 33 34 35 36 37 38 39 40 41 42 43 33 34 35 36 37 38 39 40 41 42 43 LED1 LED2...
  • Page 25 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver        ...
  • Page 26 TERMINAL BLOCK FOR EXTERNAL ANALOGUE REFERENCE  AND ISOLATED ANALOGUE SUPPLY   How to connect to the terminal block depends on the configurations made to the receiver. Please, contact your Tele Radio representative for further assistance.     0 to +10V analogue output, internal DC/DC converter on:   50. Unconnected 51.
  • Page 27 25-75% or 10-90% output****:   50. Negative supply 51. Unconnected 52. Positive supply   * Analogue output reference will follow this voltage. If unconnected, the analogue output reference will be in the middle of the external supply voltage. ** External supply voltage of 22-35V DC is required to achieve full -10 to +10V output. *** External supply voltage shall not be connected.
  • Page 28 TERMINAL BLOCK FOR DIGITAL INPUTS AND GROUND  CONNECTIONS     77. Digital input 3 80. GND 78. Digital input 4 81. GND 79. Digital input 5 82. GND       TERMINAL BLOCK FOR ANALOGUE OUTPUTS     86. Analogue GND 93. Analogue output 1 87. Analogue GND 94. Analogue output 2 88.
  • Page 29 FUNCTION LEDS INDICATION IN OPERATING MODE   Function LED Off On Indicates... X   No transmitter is registered 1 (red)   X One or more transmitters are registered X   No transmitter is logged in 2 (yellow)   X One transmitter is logged in 3 (green)  ...
  • Page 30 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 7 (potential free*, 10A, 250VAC) Digital inputs Input power 48-230V AC, 12-24V AC/DC Transistor output Duplex communication Possible Max. number of registered 15 (only one transmitter at a time) transmitters IP class Size...

  • Page 31: Tg-Rx-Mnlcan, Tg-Rx-Mnrcan, Tg-Rx-Mnpcan, Tg-Rx-Mnlj1939, Tg-Rx- Mnrj1939, Tg-Rx-Mnpj1939 Base Board Receiver With Can Expansion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 32       Expansion board:   15. Terminal block for internal power supply 18. CAN run LED 16. Programming connector 19. CAN error LED 17. Power LED 20. Terminal block for CAN signals - 32 -...
  • Page 33 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver        ...
  • Page 34 TERMINAL BLOCK FOR INTERNAL POWER SUPPLY     58. GND 57. +5V DC 56. GND       - 34 -...
  • Page 35 TERMINAL BLOCK FOR   C AN SIGNALS     50. Supply voltage 5-24VDC 51. GND 52. CAN Low 53. CAN Low 54. CAN High 55. CAN High     FUNCTION LEDS INDICATION IN OPERATING MODE   Function LED Off On Indicates... X   No transmitter is registered 1 (red)   X One or more transmitters are registered X  ...
  • Page 36 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 7 (potential free*, 10A, 250VAC) Digital inputs Input power 48-230V AC, 12-24V AC/DC Transistor output Duplex communication Possible Max. number of registered 15 (only one transmitter at a time) transmitters IP class Size...
  • Page 37 CURRENT CONSUMPTION   Input power Min.* Max.** 12V AC 0.06A 0.4A 24V AC 0.03A 0.2A 48V AC 0.02A 0.09A 115V AC 0.008A 0.04A 230V AC 0.006A 0.03A 12V DC 0.06A 0.3A 24V DC 0.03A 0.2A * Minimum current consumption= Receiver powered, no radio session established, nothing else activated on the receiver ** Maximum current consumption= All relays activated on the receiver - 37 -...
  • Page 38 RECEIVER MEASUREMENTS   TG-RX-MNL7, TG-RX-MNR7, TG-RX-MNP7, TG-RX-MDL12, TG-RX-MDR12, TG-RX-MDP12, TG-RX-MDL17, TG-RX-MDR17, TG-RX-MDP17, TG-RX-MNLANA, TG-RX- MNRANA, TG-RX-MNPANA   176 mm (6.9 in) Ø5.5 mm 154 mm (6 in) (0.2 in)   Ø15 mm (0.6 in) Ø5.5 mm (0.2 in)        ...
  • Page 39 TG-RX-MNLCAN, TG-RX-MNRCAN, TG-RX-MNPCAN, TG-RX-MNLJ1939, TG-RX-MNRJ1939, TG-RX-MNPJ1939   176 mm (6.9 in) Ø5.5 mm 154 mm (6 in) (0.2 in)   Ø9 mm (0.4 in) Ø5.5 mm (0.2 in) - 39 -...

  • Page 40: Joystick Transmitters

    JOYSTICK TRANSMITTERS   TG-TX-JDL20, TG-TX-JDL21, TG-TX-JDL22, TG-TX-JDL23, TG- TX-JDL24, TG-TX-JDL25, TG-TX-JDR20, TG-TX-JDR21, TG-TX- JDR22, TG-TX-JDR23, TG-TX-JDR24, TG-TX-JDR25   Front side       1. LED 1 5. Handle bar 2. Display 6. Right joystick 3. Upper function switch 7. Lower function switch 4. LED 2 8. Left joystick     Left side Right side  ...
  • Page 41 NOTE! Side button 4 is the button closest to you when this side is pointing to your right.   Bottom view         1. Stop button 2. Battery - 41 -...
  • Page 42 TRANSMITTER MEASUREMENTS   TG-TX-JDL20, TG-TX-JDL21, TG-TX-JDL22, TG-TX-JDL23, TG-TX-JDL24, TG-TX-JDL25, TG-TX-JDR20, TG-TX-JDR21, TG-TX-JDR22, TG-TX-JDR23, TG-TX-JDR24, TG-TX-JDR25   211 mm (8.3 in)     190 mm (7.5 in) - 42 -...
  • Page 43 TECHNICAL DATA   JOYSTICK DIRECTIONS TG-TX-JDL20, TG-TX-JDR20 2x2 + 0x2 TG-TX-JDL21, TG-TX-JDR21 2x2 + 2x2 TG-TX-JDL22, TG-TX-JDR22 4x4 + 0x4 TG-TX-JDL23, TG-TX-JDR23 4x4 + 4x4 TG-TX-JDL24, TG-TX-JDR24 Analog XY + Y TG-TX-JDL25, TG-TX-JDR25 Analog XY + XY   BATTERY TG-TX-JDL20 - TG-TX-JDL25, External, rechargeable lithium-ion TG-TX-JDR20 - TG-TX-JDR25  ...
  • Page 44 NO. OF CHANNELS/ FREQUENCY BANKS TG-TX-JDL20 - TG-TX-JDL25 69 channels TG-TX-JDR20 - TG-TX-JDR25 15 banks   CHANNEL SEPARATION TG-TX-JDL20 - TG-TX-JDL25, 25 kHz TG-TX-JDR20 - TG-TX-JDR25   OPERATING TIME (WITH CONTINUOUS USAGE) TG-TX-JDL20 - TG-TX-JDL25, 16 h. TG-TX-JDR20 - TG-TX-JDR25  ...

  • Page 45: Chapter 4: Installers Guide

    Chapter 4: INSTALLERS GUIDE CHAPTER 4: INSTALLERS GUIDE   REGISTER   WARNING! Do not perform this when the receiver is in a session with another transmitter. The radio communication may become disturbed or broken.   NOTE! Before starting to perform these settings, make sure that the stop relays are deactivated!  ...

  • Page 46: Replace

    Chapter 4: INSTALLERS GUIDE   3. Press side button 3. Keep pressed   4. Press the stop button.   5. Release side button 3.   6. Go to [Erase].   7. Select by pressing side button 4.   8. Select a receiver. Confirm by pressing side button 4. The display shows [Erasing]. If the erasing fails, the display shows [FAILED].

  • Page 47: Create Pin Codes

      REGISTER AN RFID TAG   NOTE! You can register up to 8 Tele Radio RFID tags in the transmitter.   NOTE! If you register an RFID tag that has already been registered, the RFID tag will be erased from the previous position and stored in a new position.
  • Page 48 Chapter 4: INSTALLERS GUIDE 1. Make sure that the stop button is pressed.   2. Pull out the stop button. LED 1 + 2 light (green when the battery capacity is good, red when the battery capacity is poor).   3.

  • Page 49: Erase Pin Codes

    [Any PIN] Any PIN code will be accepted [Any keyring] Any Tele Radio keyring tag will be accepted [Any walltag] Any Tele Radio wall tag will be accepted Only stored RFID keyring tags or wall tags will be...

  • Page 50: Show Pin Codes

    Chapter 4: INSTALLERS GUIDE   7. Scroll the list to select the RFID tag that you want to erase.   8. Select by pressing the left start button.   9. Confirm by pressing the left start button.       SHOW PIN CODES  ...

  • Page 51: Start The Transmitter In Operating Mode

    START THE TRANSMITTER IN OPERATING MODE   1. Make sure that the stop button is pressed.   2. Pull out the stop button.   3. If PIN codes are used for authorization: Go to the next section.   4. WITHIN 3 MINUTES FROM PULLING OUT THE STOP BUTTON: The receiver(s) that was selected in the last session will be automatically selected.

  • Page 52: Start The Transmitter In Operating Mode With Pin Codes

          START THE TRANSMITTER IN OPERATING MODE USING RFID   NOTE! The transmitters will only accept RFID tags from Tele Radio AB.   1. Make sure that the stop button is pressed.   2. Pull out the stop button. LED 1 + 2 flash (green when the battery capacity is good, red when the battery capacity is poor).

  • Page 53: Turn The Transmitter Off

      6. Release the start buttons. The buzzer stops beeping. LED 1 + 2 flash (green when the battery capacity is good, red when the battery capacity is poor).   7. When radio communication has been established and the RFID tag has been accepted, LED 1 lights (green when the battery capacity is good, red when the battery capacity is poor).

  • Page 54: Automatic Shutdown

    Logout from menu mode   1. Make sure that the stop button is pressed.   2. Pull out the stop button.   3. Press side button 3. Keep pressed.   4. Press the stop button.   5. Release side button 3.  ...

  • Page 55: Frequencies & Channels

    FREQUENCIES & CHANNELS   NOTE! If your system is transmitting on the frequency bands 433MHz eller 2.4 GHz, the receiver will automatically detect and switch to the same channel that the transmitter is using. If your system is transmitting the 915 MHz frequency band, you have to switch bank in the receiver by using the PC program Settings manager.
  • Page 56 FREQUENCY BAND 433 MHZ   Channel Frequency Channel Frequency 433.075 433.950 433.100 433.975 433.125 434.000 433.150 434.025 433.175 434.050 433.200 434.075 433.225 434.100 433.250 434.125 433.275 434.150 433.300 434.175 433.325 434.200 433.350 434.225 433.375 434.250 433.400 434.275 433.425 434.300 433.450 434.325 433.475 434.350 433.500 434.375 433.525...
  • Page 57 FREQUENCY BAND 915 MHZ   Frequency-hopping spread spectrum (FHSS) is a method of transmitting radio signals by rapidly switching a carrier among many frequency channels, using a pseudorandom sequence known to both transmitter and receiver. For further information about the frequencies used in this frequency band and about frequency-hopping, please contact your representative.

  • Page 58: Relay Functionality

    RELAY FUNCTIONALITY   NOTE! If Operating mode 0 is selected, you can not make these settings. Contact your representative for assistance.   NOTE! Momentary relay functionality is default. That means that the relay will only be activated when you press a button on the transmitter. When the button is released, the relay deactivates. Setting a relay to latching means that the relay gets activated every time that you press a button, but in this case the relay remains active until the button is pressed again.

  • Page 59: Chapter 5: Operating Modes

    Chapter 5: OPERATING MODES CHAPTER 5: OPERATING MODES   SELECT OPERATING MODE   NOTE! These Operating modes are made for base board receivers or receivers with expansion boards that only contain function relays.   NOTE! Before starting to perform these settings, make sure that the stop relays are deactivated!  ...
  • Page 60 OPERATING MODE 1     Button functions Direction functions   Latching programmable relays: 7, 19   Buzzer output activates together with relay 7 - 60 -...
  • Page 61 OPERATING MODE 2     Button functions Direction functions   Latching programmable relays: 7, 19   Buzzer output activates together with relay 7 - 61 -...
  • Page 62 OPERATING MODE 3     Button functions Direction functions Load select A (relay 16), B (relay 17), C (relay 18), D (relay 19 for indication Load select A (direction functions) Load select B (direction functions)   Latching programmable relays: 7   Buzzer output activates together with relay 7 - 62 -...
  • Page 63 OPERATING MODE 6     Button functions Direction functions Load select A (relay 16), B (relay 17)   Latching programmable relays: 6, 7, 18, 19   Buzzer output activates together with relay 7 - 63 -...
  • Page 64 OPERATING MODE 7     Button functions Direction functions Load select A (relay 5), B (relay 6)   Latching programmable relays: 7, 18   Buzzer output activates together with relay 7   Relay 19 not used - 64 -...

  • Page 65: Chapter 6: Load Select Modes

    Chapter 6: LOAD SELECT MODES CHAPTER 6: LOAD SELECT MODES   MAKE A LOAD SELECTION   NOTE! Before starting to perform these settings, make sure that the stop relays are deactivated!     1. Make sure that the stop button is pressed.   2.
  • Page 66 LOAD SELECT MODE 1         LOAD SELECT MODE 2         LOAD SELECT MODE 3   - 66 -...
  • Page 67 LOAD SELECT MODE 4         LOAD SELECT MODE 5   C + D can be activated at the same time. - 67 -...
  • Page 68 LOAD SELECT MODE 6   C + D can NOT be activated at the same time.     LOAD SELECT MODE 7   The loads are selected in the PC program Settings manager. When you start the transmitter, you can not switch loads. - 68 -...

  • Page 69: Chapter 7: Battery Guide

    OPERATING TIME TG-TX-JDL20 - TG-TX-JDL25, Approx. 16 h. with continuous usage TG-TX-JDR20 - TG-TX-JDR25   CHARGE In a Tele Radio charger unit 5V DC 10% (1A) TG-TX-JDL20 - TG-TX-JDL25, TG-TX-JDR20 - TG-TX-JDR25 charger (see further description)   CHARGING TEMPERATURE TG-TX-JDL20 - TG-TX-JDL25, 0°...
  • Page 70   3. Remove the battery from the transmitter.   4. Charge the external battery in a Tele Radio AB charging unit . The charging unit LED lights red while charging. When fully charged, the charging unit LED lights green.  ...
  • Page 71 The Tele Radio AB products are covered by a guarantee/warranty against material, construction and manufacturing faults. During the guarantee/warranty period, Tele Radio AB may replace the product or faulty parts. Work under guarantee/warranty must be carried out by Tele Radio AB or by an authorized service centre specified by Tele Radio AB.

  • Page 72: Chapter 8: Certifications Chapter

    Chapter 8: CERTIFICATIONS CHAPTER CHAPTER 8: CERTIFICATIONS CHAPTER   FCC/IC   FCC STATEMENT   Statement for warning:   To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended.
  • Page 73 Chapter 8: CERTIFICATIONS CHAPTER The radio module in this product is labelled with its own FCC ID and IC number. The FCC ID and IC is not visible when the radio module is installed inside another device. Therefore, the outside of the device into which the module is installed must also display a label referring to the radio module.
  • Page 74 THE RADIO MODULE   Each radio module is specifically designed to match a Tele Radio product in terms of physical dimensions, connection points, voltage levels, signal interface etc. To use the radio modules in non Tele Radio products is not permitted. The radio modules are designed to interface directly to the main board of the receiver/transmitter unit.

  • Page 75: Receiver Labels

    RECEIVER LABELS   PRODUCT LABEL ON THE RECEIVER   You will find the product label on the outside of the enclosure of the receiver.       FCC/IC LABEL   I N THE RECEIVER   The FCC/IC label is placed on the radio module. The radio module is mounted inside the receiver.  ...

  • Page 76: Transmitter Labels

    TRANSMITTER LABELS   JOYSTICK TRANSMITTER PRODUCT LABEL PLACEMENT   The product label is placed under the battery in the bottom of the joystick transmitter.         FCC/IC LABEL IN THE TRANSMITTER   The FCC/IC label is placed on the radio module. The radio module is mounted inside the transmitter.  ...

  • Page 77: Ec/Eea Declaration Of Conformity

    EC/EEA DECLARATION OF CONFORMITY - 77 -...
  • Page 78 - 78 -...
  • Page 79 - 79 -...
  • Page 80  ...
