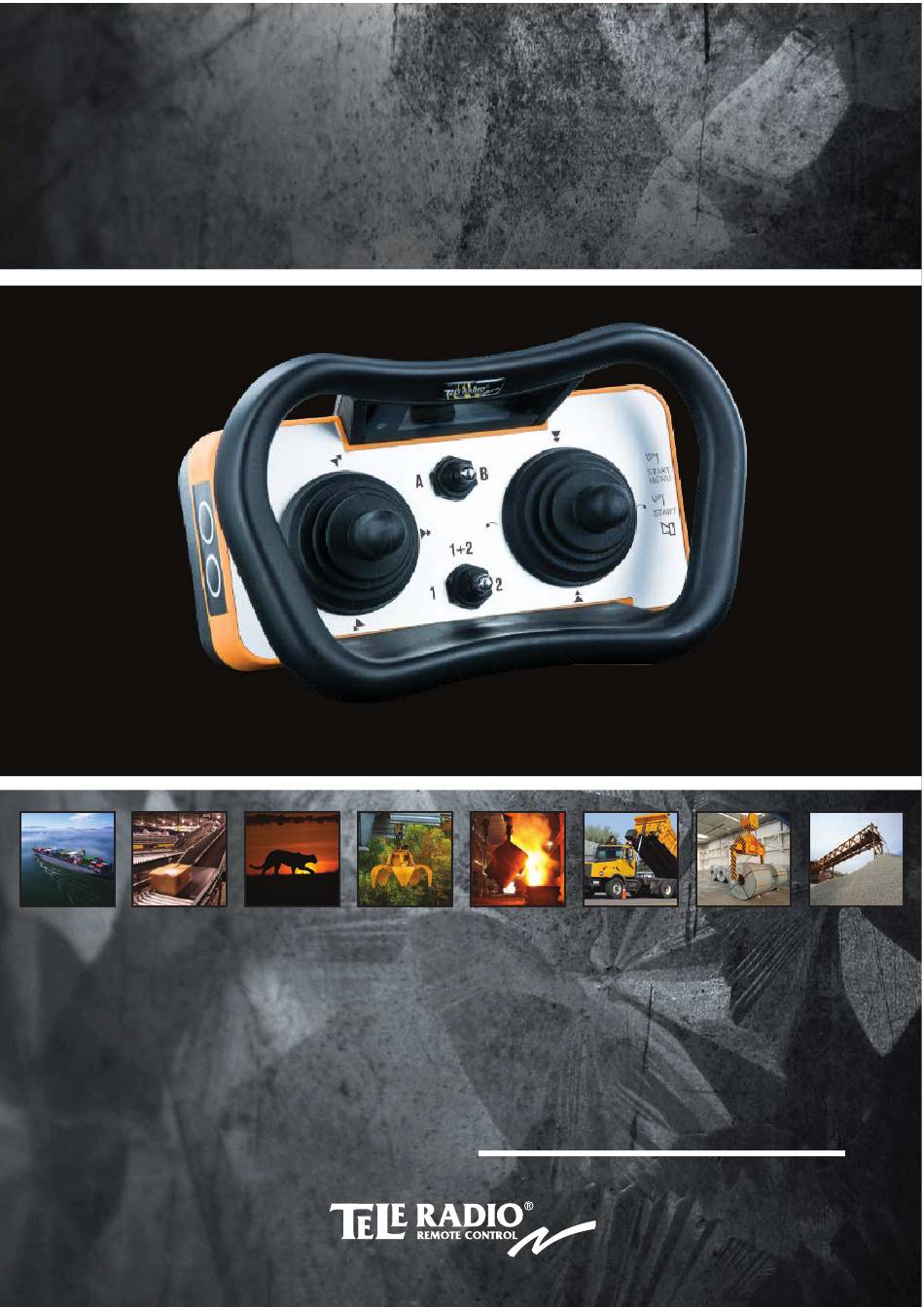

- Page 1 Tiger G2 End user instructions TG-T12-20, TG-T12-21 Transmitters TG-T12-22, TG-T12-23 TG-T12-24, TG-T12-25 TG-T12-30, TG-T12-31 TG-T12-32, TG-T12-33 TG-T12-34, TG-T12-35 ED-TG2-TX103-B01-EN Language: English (original)
-
Page 2: Table Of Contents
CONTENTS CHAPTER 1: CUSTOMER INFORMATION Thank you for purchasing a Tele Radio AB product About Tiger TG2 systems About this document Warnings & restrictions CHAPTER 2: PRODUCT DESCRIPTION Transmitter front Transmitter display Transmitter side Transmitter bottom Technical data Frequency band 433 MHz Frequency band 915 MHz CHAPTER 3: OPERATION Start the transmitter... -
Page 3: Chapter 1: Customer Information
Read all instructions and warnings carefully before mounting, installing and configuring the products. These instructions have been published by Tele Radio AB and are not subject to any guarantee. The instructions may be withdrawn or revised by Tele Radio AB at any time and without further notice. -
Page 4: About This Document
ABOUT THIS DOCUMENT Every care has been taken in the preparation of this manual. Please inform Tele Radio AB of any inaccuracies or omissions. These End user instructions cover general safety issues, main technical specifications, standard installation, operating instructions, general troubleshooting, battery information and regulatory information. -
Page 5: Maintenance
Operation This radio system should not be used in areas where there is a risk of explosion. Only qualified personnel should be permitted to access the transmitter and operate the equipment. Always follow operating and maintenance instructions as well as all applicable safety procedures and requirements. -
Page 6: Chapter 2: Product Description
CHAPTER 2: PRODUCT DESCRIPTION TRANSMITTER FRONT 1. LED 1 5. Handle bar 2. Display 6. Right joystick 3. Upper function switch 7. Lower function switch 4. LED 2 8. Left joystick TRANSMITTER DISPLAY The transmitter display is intended for receiving and visualizing feedback information from the system as well as for basic configuration. -
Page 7: Transmitter Side
TRANSMITTER SIDE Left side Right side 4. Side button 4 (safe button) / start button / 1. Side button 1 select/confirm 2. Side button 2 (safe button) 5. Stop button 3. Side button 3 / start button / back 6. -
Page 8: Technical Data
TECHNICAL DATA TG-T12-20, TG-T12-21, TG-T12-22 TG-T12-30, TG-T12-31, TG-T12-32 TG-T12-23, TG-T12-24, TG-T12-25 TG-T12-33, TG-T12-34, TG-T12-35 Number of front 2 toggle switches, SPDT,(On)-None-(On) switches upper switch momentary function (spring return) lower switch stay-put function Number of joysticks 2, 2-axis with spring return for step or analogue control (see § Joystick directions below). - Page 9 Code (XY) Movement control on X Movement control on Y – 2-step 2-step 2-step 2-step – 4-step 4-step 4-step – Analog XY stepless stepless Analog Y – stepless Example: XY = 2x2 XY= 0x2 Analog XY Analog Y The joystick operates on The joystick operates on The joystick operates on The joystick operates on...
-
Page 10: Frequency Band 433 Mhz
FREQUENCY BAND 433 MHZ For radio systems operating on frequency band 433 MHz, the frequency band is divided into 69 channels (channel 1-69). Once the channel has been selected on the transmitter, the receiver will automatically detect and switch to the same channel. Channel Frequency Channel... -
Page 11: Chapter 3: Operation
CHAPTER 3: OPERATION To control a receiver, the transmitter must be registered and logged in to the receiver. If another transmitter is already logged in to the receiver, it must be logged out before a different transmitter can be logged in. If no transmitter is logged in to a receiver, any registered transmitter will automatically log in when sending radio signals to the receiver. -
Page 12: Switch The Transmitter Off
Start the transmitter with PIN code 1. Make sure that the stop button is pressed. 2. Pull out the stop button. LEDs 1 + 2 light. 3. Enter the PIN code. Move the left joystick right/ left to select a digit and up/ down to select the desired number (0-9). -
Page 13: Switch Channel
Quick logout Once the transmitter has established a radio link with one or more receivers, 'Quick logout' can be used to log out from those receivers. This procedure will log the transmitter out from all receivers that are part of the radio session ... -
Page 14: Replace
REPLACE It is possible to replace a registered transmitter with another transmitter of the same model. The procedure does not require to open the receiver housing but the receiver needs to be powered up and within transmission range. Use the transmitter that will replace the old transmitter to perform the following instructions. -
Page 15: Automatic Shutdown
AUTOMATIC SHUTDOWN Automatic shutdown helps prolong battery capacity by automatically switching the transmitter off after a preset period of inactivity. 1. Make sure that the stop button is pressed. 2. Pull out the stop button. LEDs 1 + 2 light. 3. -
Page 16: Chapter 4: Battery Guide
CHAPTER 4: BATTERY GUIDE BATTERY PRECAUTIONS Carefully read through the following safety instructions and warnings before using, charging or disposing of the batteries. Batteries contain flammable substances such as lithium or other organic solvents, which may result in overheating, rupture or combustion. Failure to read and follow the below instructions may result in fire, personal injury and damage to property if charged or used improperly. -
Page 17: Battery Information
Replaceable, rechargeable lithium-ion battery Art. nr M245060 Operating time Approximately 16 h with continuous usage* Charger** Tele Radio charger unit, 5 V DC, 10 % (1A) Art. nr M769755 + M769780 Charging time Approximately 4 hours with an empty battery Charging temperature 0…+45 °C / +32…+113 °F * When the battery capacity reaches approximately 10 %, LEDs 1+2 light red. -
Page 18: Charge The Battery
CHARGE THE BATTERY 1. When the battery capacity reaches approximately 10 %, LEDs 1 + 2 light red and the internal buzzer beeps 3 times. 2. Remove the battery from the transmitter. 3. Charge the external battery using a Tele Radio AB charger unit. While charging, the charger unit LED lights red. -
Page 19: Chapter 5: Guarantee, Service, Repairs And Maintenance
Tele Radio AB products are covered by a guarantee/warranty against material, construction and manufacturing faults. During the guarantee/warranty period, Tele Radio AB may replace the product or faulty parts. Work under guarantee/warranty must be carried out by Tele Radio AB or by an authorized service centre specified by Tele Radio AB. -
Page 20: Chapter 6: Regulatory Information
TG-T12-20…25 models CE marking Hereby, Tele Radio AB, declares that the radio equipment type(s) listed above is/ are in compliance with Directive 2014/53/EU. The latest version of the complete EU Declaration of Conformity is available on the Tele Radio AB website, www.tele-radio.com. -
Page 21: Fcc/Ic Label Placement
Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. Consult the dealer or an experienced radio/TV technician for help. To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. -
Page 22: Radio Module
RADIO MODULE The following products described in these instructions contain radio modules: PRODUCT RADIO MODULE TG-T12-30, TG-T12-31, TG-T12-32, TG-T12-33, TG-T12-34, TG-T12-35 D00005-04 - 22 -... -
Page 23: Annex A: Frequent Terms
ANNEX A: FREQUENT TERMS Function relay Standard relay, controlled by the buttons on the transmitter unit. Prevents a component from functioning when another component is functioning Interlocking or operating in a particular way. Latching relay The relay becomes active every time you press a button and remains active until functionality the button is pressed again. - Page 24 These installation instructions are subject to change without prior notice. Download the latest installation instructions from www.tele-radio.com...
