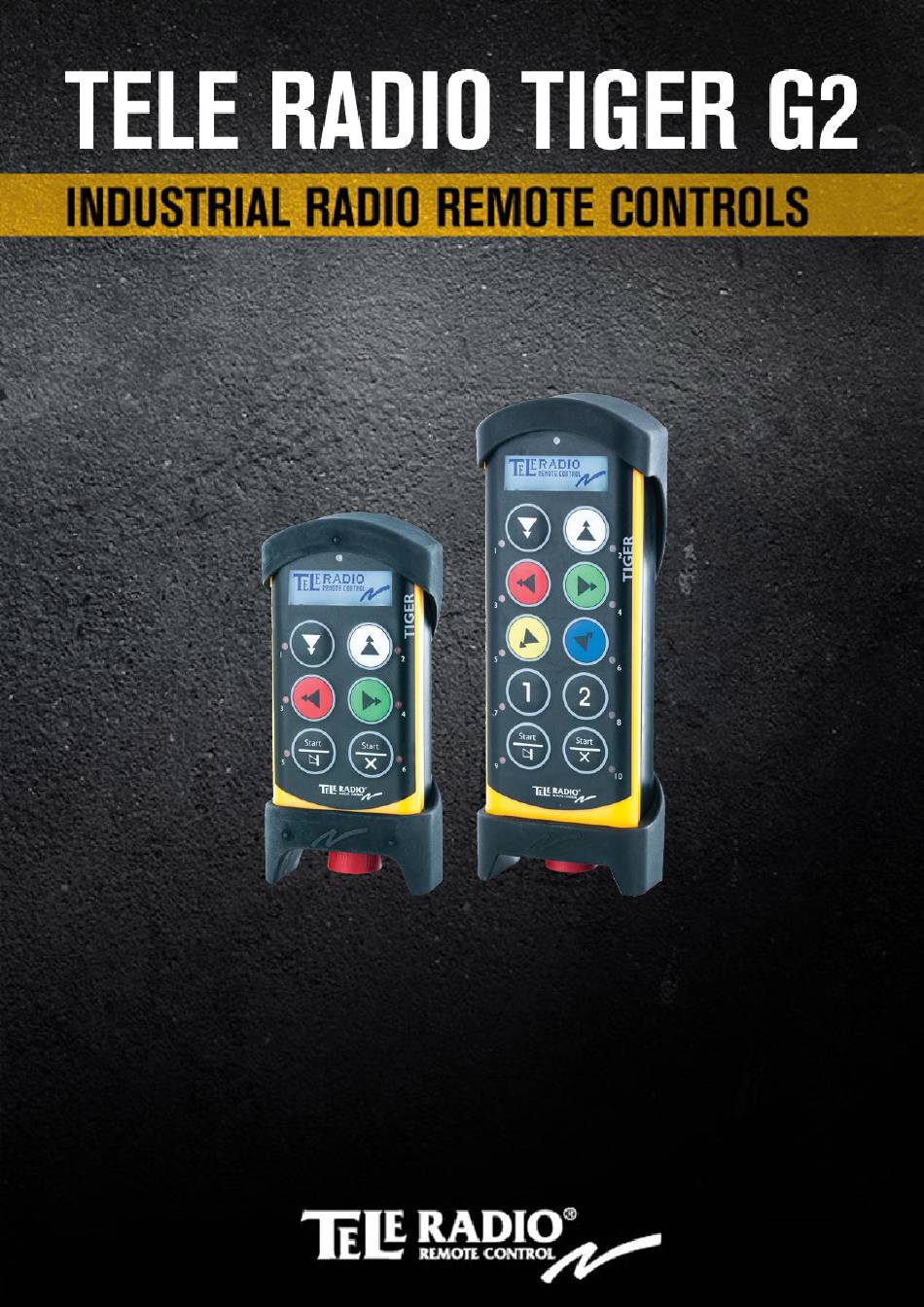

Tele Radio TIGER G2 Installation Instructions Manual

Hide thumbs Also See for TIGER G2:
Table of Contents

Advertisement

Quick Links

Installation instructions
TG-TX-MNL6 (TG-T9-2), TG-TX-MNR6 (TG-T9-12), TG-TX-MNP6 (TG-T9-22), TG-TX-MDL10 (TG-T11-4),
TG-TX-MDR10 (TG-T11-14), TG-TX-MDP10 (TG-T11-24), TG-R4-1 (TG-RX-MNL7), TG-R4-3 (TG-RX-MNR7),
TG-R4-5 (TG-RX-MNP7), TG-R4-46 (TG-RX-MDL12), TG-R4-48 (TG-RX-MDR12), TG-R4-50 (TG-RX-MDP12),
TG-R4-6 (TG-RX-MDL17), TG-R4-8 (TG-RX-MDR17), TG-R4-10 (TG-RX-MDP17), TG-R4-26 (TG-RX-MNLCAN),
TG-R4-28 (TG-RX-MNRCAN), TG-R4-30 (TG-RX-MNPCAN), TG-R4-41 (TG-RX-MNLJ1939),
TG-R4-43 (TG-RX-MNRJ1939), TG-R4-45 (TG-RX-MNPJ1939, TG-R4-36 (TG-RX-MNLANA),
TG-R4-38 (TG-RX-MNRANA), TG-R4-40 (TG-RX-MNPANA)
LANGUAGE: English (original)
IM-TG2-RX002-A13-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIGER G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tele Radio TIGER G2

Summary of Contents for Tele Radio TIGER G2

  • Page 1 Installation instructions TG-TX-MNL6 (TG-T9-2), TG-TX-MNR6 (TG-T9-12), TG-TX-MNP6 (TG-T9-22), TG-TX-MDL10 (TG-T11-4), TG-TX-MDR10 (TG-T11-14), TG-TX-MDP10 (TG-T11-24), TG-R4-1 (TG-RX-MNL7), TG-R4-3 (TG-RX-MNR7), TG-R4-5 (TG-RX-MNP7), TG-R4-46 (TG-RX-MDL12), TG-R4-48 (TG-RX-MDR12), TG-R4-50 (TG-RX-MDP12), TG-R4-6 (TG-RX-MDL17), TG-R4-8 (TG-RX-MDR17), TG-R4-10 (TG-RX-MDP17), TG-R4-26 (TG-RX-MNLCAN), TG-R4-28 (TG-RX-MNRCAN), TG-R4-30 (TG-RX-MNPCAN), TG-R4-41 (TG-RX-MNLJ1939), TG-R4-43 (TG-RX-MNRJ1939), TG-R4-45 (TG-RX-MNPJ1939, TG-R4-36 (TG-RX-MNLANA), TG-R4-38 (TG-RX-MNRANA), TG-R4-40 (TG-RX-MNPANA) LANGUAGE: English (original)

  • Page 2: Table Of Contents

    CONTENTS Chapter 1: CUSTOMER INFORMATION Chapter 2: SYSTEM INFORMATION Chapter 3: PRODUCT PAGES TG-RX-MNL7, TG-RX-MNR7, TG-RX-MNP7 base board receiver TG-RX-MDL12, TG-RX-MDR12, TG-RX-MDP12 base board receiver with a relay expansion board TG-RX-MDL17, TG-RX-MDR17, TG-RX-MDP17 base board receiver with a relay expansion board TG-RX-MNLANA, TG-RX-MNRANA, TG-RX-MNPANA base board receiver with an expan- sion board...

  • Page 3: Chapter 1: Customer Information

    During the guarantee/ warranty period, Tele Radio AB may replace the product or faulty parts with new. Work under guarantee/ warranty must be carried out by Tele Radio AB or by an authorized service center specified by Tele Radio AB. Contact your Tele Radio AB representative if you need support or service.
  • Page 4 WARNINGS & RESTRICTIONS   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.   NOTE! We recommend that the functionality of the STOP button is being tested at a regular basis: At a minimum, when used for 200 hours.

  • Page 5: Chapter 2: System Information

    CHAPTER 2: SYSTEM INFORMATION   APPLICATION AREA FOR THE TIGER SYSTEM   The Tele Radio AB Tiger remote control systems are aimed for remote controlling of lifting or mobile equipment where a high safety level is required.      ...
  • Page 6 SAFETY INFORMATION (IN ENGLISH)   System requirements The product holds a safety-related stop function that complies with the requirements for SIL3 according to IEC61508: The stop function deactivates all relays on the receiver when the stop button on the transmitter is pressed.

  • Page 7: Chapter 3: Product Pages

    Chapter 3: PRODUCT PAGES CHAPTER 3: PRODUCT PAGES   ANTENNA   NOTE! For optimum performance: Place well away from metal objects, such as metal girders, high- voltage cables and other antennas.   NOTE! For optimum performance, place the antennas as far away from each other as possible. The recommended distance is more than 1 meter.

  • Page 8: Tg-Rx-Mnl7, Tg-Rx-Mnr7, Tg-Rx-Mnp7 Base Board Receiver

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 9 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver  ...
  • Page 10 FUNCTION LEDS INDICATION IN OPERATING MODE   Function LED Off On Indicates... X   No transmitter is registered 1 (red)   X One or more transmitters are registered X   No transmitter is logged in 2 (yellow)   X One transmitter is logged in 3 (green)  ...
  • Page 11 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 7 (potential free*, 10A, 250VAC) Input power 12-24V AC/DC, 48-230V AC Digital inputs Transistor output Duplex communication Possible Max. number of registered transmitters 15 (only one transmitter at a time) IP class Size 176 x 126 x 75 mm./ 6.9 x 5 x 2.9 in.

  • Page 12: Tg-Rx-Mdl12, Tg-Rx-Mdr12, Tg-Rx-Mdp12 Base Board Receiver With A Relay Expansion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 13     Expansion board:   15. Relay LEDs 10-15 (LED 16-19 not used) 19. Function button (Cancel) 16. LEDs representing stop relays 1-2 and func- 20. Programming connector tion relays 1-7 on the base board 17. Function relays 10-15 21. Power LED (yellow) 18.
  • Page 14 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver  ...
  • Page 15 BASE BOARD RELAY LEDS   These LEDs light when the corresponding stop and function relays on the base board are activated. See list for corresponding base board relay.   LED 1 = function relay 1   LED 2 = function relay 2  ...
  • Page 16 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 12 (potential free*, 10A, 250VAC) Input power 12-24V AC/DC, 48-230V AC Duplex communication Possible Max. number of registered transmitters 15 (only one transmitter at a time) IP class Size 176 x 126 x 75 mm./ 6.9 x 5 x 2.9 in.

  • Page 17: Tg-Rx-Mdl17, Tg-Rx-Mdr17, Tg-Rx-Mdp17 Base Board Receiver With A Relay Expansion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 18     Expansion board:   15. Terminal block for digital inputs 19. Select button (OK) 16. Relay LEDs 10-19 20. Function button (Cancel) 17. Function relays 10-19 21. Programming connector 18. Relay LEDs 1-9 22. Power LED (yellow)      ...
  • Page 19 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver  ...
  • Page 20 TERMINAL BLOCK FOR MIXED I/O     32. +12V DC 38. Digital input 2 33. +5V DC 39. GND 34. GND 40. +3.3V DC 35. GND 41. RS485A- 36. Digital input 1 42. RS485B+ 37. Transistor output 43. GND    ...
  • Page 21 FUNCTION LEDS INDICATION IN OPERATING MODE   Function LED Off On Indicates... X   No transmitter is registered 1 (red)   X One or more transmitters are registered X   No transmitter is logged in 2 (yellow)   X One transmitter is logged in 3 (green)  ...
  • Page 22 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 17 (potential free*, 10A, 250VAC) Input power 12-24V AC/DC, 48-230V AC Digital input Transistor output Duplex communication Possible Max. number of registered transmitters 15 (only one transmitter at a time) IP class Size 176 x 126 x 75 mm./ 6.9 x 5 x 2.9 in.

  • Page 23: Tg-Rx-Mnlana, Tg-Rx-Mnrana, Tg-Rx-Mnpana Base Board Receiver With An Expansion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 24   LED8 21 22 86 87 88 89 90 91 92 93 94 95 96 97 98 99 32 33 34 35 36 37 38 39 40 41 42 43 32 33 34 35 36 37 38 39 40 41 42 43 33 34 35 36 37 38 39 40 41 42 43 LED1 LED2...
  • Page 25 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver  ...
  • Page 26 AND ISOLATED ANALOGUE SUPPLY   How to connect to the terminal block depends on the configurations made to the receiver. Please, contact your Tele Radio representative for further assistance.     0 to +10V analogue output, internal DC/DC converter on:  ...
  • Page 27 25-75% or 10-90% output****:   50. Negative supply 51. Unconnected 52. Positive supply   * Analogue output reference will follow this voltage. If unconnected, the analogue output reference will be in the middle of the external supply voltage. ** External supply voltage of 22-35V DC is required to achieve full -10 to +10V output. *** External supply voltage shall not be connected.
  • Page 28 TERMINAL BLOCK FOR DIGITAL INPUTS AND GROUND CONNECTIONS     77. Digital input 3 80. GND 78. Digital input 4 81. GND 79. Digital input 5 82. GND       TERMINAL BLOCK FOR ANALOGUE OUTPUTS     86. Analogue GND 93.
  • Page 29 BASE BOARD RELAY LEDS   These LEDs light when the corresponding stop and function relays on the base board are activated. See list for corresponding base board relay.   LED 1 = function relay 1   LED 2 = function relay 2  ...
  • Page 30 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 7 (potential free*, 10A, 250VAC) Digital inputs Input power 48-230V AC, 12-24V AC/DC Transistor output Duplex communication Possible Max. number of registered 15 (only one transmitter at a time) transmitters IP class Size...

  • Page 31: Tg-Rx-Mnlcan, Tg-Rx-Mnrcan, Tg-Rx-Mnpcan, Tg-Rx-Mnlj1939, Tg-Rx- Mnrj1939, Tg-Rx-Mnpj1939 Base Board Receiver With Can Expansion Board

    WARNING! The receiver must NOT be opened by any other than a qualified installer. Make sure to turn the electricity off before opening the receiver.   WARNING! Tele Radio remote controls are often built into wider applications. We recommend that the system is provided with a wired emergency stop where necessary.  ...
  • Page 32       Expansion board:   15. Terminal block for internal power supply 18. CAN run LED 16. Programming connector 19. CAN error LED 17. Power LED 20. Terminal block for CAN signals - 32 -...
  • Page 33 TERMINAL BLOCK FOR INPUT POWER       1. 48-230 V AC 2. 48-230 V AC 3. (not used) 4. ~12-24 V AC/DC 5. negative terminal DC voltage* 6. ~+12-24 V AC/DC * use when digital inputs are connected to receiver  ...
  • Page 34 TERMINAL BLOCK FOR INTERNAL POWER SUPPLY     58. GND 57. +5V DC 56. GND       TERMINAL BLOCK FOR CAN SIGNALS     50. Supply voltage 5-24VDC 51. GND 52. CAN Low 53. CAN Low 54. CAN High 55.
  • Page 35 TECHNICAL DATA   Number of stop relays 2 (potential free*, 16A, 250VAC) Number of function relays 7 (potential free*, 10A, 250VAC) Digital inputs Input power 48-230V AC, 12-24V AC/DC Transistor output Duplex communication Possible Max. number of registered 15 (only one transmitter at a time) transmitters IP class Size...
  • Page 36 CURRENT CONSUMPTION   Input power Min.* Max.** 12V AC 0.06A 0.4A 24V AC 0.03A 0.2A 48V AC 0.02A 0.09A 115V AC 0.008A 0.04A 230V AC 0.006A 0.03A 12V DC 0.06A 0.3A 24V DC 0.03A 0.2A * Minimum current consumption= Receiver powered, no radio session established, nothing else activated on the receiver ** Maximum current consumption= All relays activated on the receiver - 36 -...
  • Page 37 RECEIVER MEASUREMENTS   TG-RX-MNL7, TG-RX-MNR7, TG-RX-MNP7, TG-RX-MDL12, TG-RX-MDR12, TG-RX-MDP12, TG-RX-MDL17, TG-RX-MDR17, TG-RX-MDP17, TG-RX-MNLANA, TG-RX- MNRANA, TG-RX-MNPANA   176 mm (6.9 in) Ø5.5 mm 154 mm (6 in) (0.2 in)   Ø15 mm (0.6 in) Ø5.5 mm (0.2 in)      ...
  • Page 38 TG-RX-MNLCAN, TG-RX-MNRCAN, TG-RX-MNPCAN, TG-RX-MNLJ1939, TG-RX-MNRJ1939, TG-RX-MNPJ1939   176 mm (6.9 in) Ø5.5 mm 154 mm (6 in) (0.2 in)   Ø9 mm (0.4 in) Ø5.5 mm (0.2 in) - 38 -...

  • Page 39: Tg-Tx-Mnl6, Tg-Tx-Mnr6, Tg-Tx-Mnp6, Tg-Tx-Mdl10, Tg-Tx-Mdr10, Tg-Tx- Mdp10 Transmitters

    TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6, TG-TX-MDL10, TG- TX-MDR10, TG-TX-MDP10 TRANSMITTERS     1. Rubber cover 9. Right start button 2. Display 10. Button LEDs 3. Button 1 11. Stop button 4. Button 3 12. Button 5 5. Left start button 13. Button 6 6.
  • Page 40 TRANSMITTER BACKSIDE   TG-TX-MNL6 TG-TX-MDL10 TG-TX-MNR6 TG-TX-MDR10 TG-TX-MNP6 TG-TX-MDP10       1. Rubber cover 4. CE and product label 2. Stop button 5. Battery charger socket 3. Clip 6. On/off switch* * only on TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 - 40 -...
  • Page 41 TECHNICAL DATA   NO. OF BUTTONS TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 6 x 2-step buttons TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10 10 x 2-step buttons   BATTERY TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 Internal, rechargeable lithium-ion TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10 External, rechargeable lithium-ion   ON/OFF SWITCH TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10 No  ...
  • Page 42   OPERATING TIME (WITH CONTINUOUS USAGE) TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6, 16 h. TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10   IP CLASS TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6, TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10   SENSITIVITY TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6, Better than -110 dBm TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10   OPERATING TEMPERATURE TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6, -20 - +55°C/ -4 - +130°F TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10  ...
  • Page 43 TRANSMITTER MEASUREMENTS   TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6   76 mm (3 in) 46 mm (1.8 in)   TG-TX-MDL10,TG-TX-MDR10, TG-TX-MDP10   79 mm (3.1 in) 51 mm (2 in) 41 mm (1.6 in)   - 43 -...

  • Page 44: Chapter 4: Installers Guide

    [Any PIN] Any PIN code will be accepted [Any keyring] Any Tele Radio keyring tag will be accepted [Any walltag] Any Tele Radio wall tag will be accepted Only stored RFID keyring tags or wall tags will be...

  • Page 45: Create Pin Codes

    REGISTER AN RFID TAG   NOTE! You can register up to 8 Tele Radio RFID tags in the transmitter.   NOTE! If you register an RFID tag that has already been registered, the RFID tag will be erased from the previous position and stored in a new position.

  • Page 46: Erase Pin Codes

      5. Release the right start button. The top LED flashes (green when the battery capacity is good, red when the battery capacity is poor) when in menu mode.   6. Go to [Learn RFID].   7. Select the position in the list where you want the new RFID tag to be stored by pressing the left start button.

  • Page 47: Show Registered Pin Codes

      5. Release the right start button. The top LED flashes (green when the battery capacity is good, red when the battery capacity is poor) when in menu mode.   6. Go to [Erase RFID].   7. Scroll the list to select the RFID tag that you want to erase. Press button 1 to move down.

  • Page 48: Show Rfid Tags

    SHOW RFID TAGS   1. Make sure that the stop button is pressed.   2. Twist and pull out the stop button. The top LED lights (green when the battery capacity is good, red when the battery capacity is poor).  ...
  • Page 49 The top LED lights (green when the battery capacity is good, red when the battery capacity is poor).   3. WITHIN 3 MINUTES : Enter the PIN code (4 digits) by pressing the buttons according to the table.   FOR DIGIT: TG-TX-MNL6, PRESS BUTTON: 1 TG-TX-MDL10, PRESS BUTTON: 1  ...

  • Page 50: Start The Transmitter In Operating Mode Using Rfid

    START THE TRANSMITTER IN OPERATING MODE USING RFID   NOTE! The transmitters will only accept RFID tags from Tele Radio AB.   1. Make sure that the stop button is pressed.   2. Twist and pull out the stop button.
  • Page 51 NOTE! To be able to control a receiver, the transmitter must be registered in the receiver, and logged in to the receiver. If another transmitter is already logged in to the receiver, it has to be logged out before any other transmitter can be logged in. If no transmitter is logged in to a receiver, a registered transmitter will automatically log in when sending radio signals to the receiver.

  • Page 52: Register

    REGISTER   WARNING! Do not perform this when the receiver is in a session with another transmitter. The radio communication may become disturbed or broken.   NOTE! Before starting to perform these settings, make sure that the stop relays are deactivated!  ...

  • Page 53: Erase

    ERASE   WARNING! If a transmitter is lost or becomes seriously damaged, it is possible to erase it from the receiver. We do not recommend this way. Contact your representative for assistance.   NOTE! If the transmitter already have receivers registered, we recommend that you erase all receivers from the transmitter before starting the replacement.

  • Page 54: Automatic Shutdown

      2. Twist and pull out the stop button. The top LED lights (green when the battery capacity is good, red when the battery capacity is poor).   3. Press the right start button. Keep pressed.   4. Press the stop button.  ...

  • Page 55: Frequencies & Channels

    7. Select by pressing the left start button.   8. Select the time that you want for automatic shutdown: 0-255 minutes. If you want to turn off automatic shutdown, select 0.   9. Press the left start button.      ...
  • Page 56 FREQUENCY BAND 433 MHZ   Channel Frequency Channel Frequency 433.075 433.950 433.100 433.975 433.125 434.000 433.150 434.025 433.175 434.050 433.200 434.075 433.225 434.100 433.250 434.125 433.275 434.150 433.300 434.175 433.325 434.200 433.350 434.225 433.375 434.250 433.400 434.275 433.425 434.300 433.450 434.325 433.475 434.350...
  • Page 57 FREQUENCY BAND 915 MHZ   Frequency-hopping spread spectrum (FHSS) is a method of transmitting radio signals by rapidly switching a carrier among many frequency channels, using a pseudorandom sequence known to both transmitter and receiver. For further information about the frequencies used in this frequency band and about frequency-hopping, please contact your representative.

  • Page 58: Relay Functionality

    RELAY FUNCTIONALITY   NOTE! If Operating mode 0 is selected, you can not make these settings. Contact your representative for assistance.   NOTE! Momentary relay functionality is default. That means that the relay will only be activated when you press a button on the transmitter. When the button is released, the relay deactivates. Setting a relay to latching means that the relay gets activated every time that you press a button, but in this case the relay remains active until the button is pressed again.

  • Page 59: Digital Inputs

    DIGITAL INPUTS   The digital inputs on the receiver are connected to the transmitter LEDs. If you need to make other settings for the digital inputs indications on the transmitter, please contact your representative for assistance.   - 59 -...

  • Page 60: Chapter 5: Operating Modes

    Chapter 5: OPERATING MODES CHAPTER 5: OPERATING MODES   SELECT OPERATING MODE   NOTE! These Operating modes are made for base board receivers or receivers with expansion boards that only contain function relays.   NOTE! Before starting to perform these settings, make sure that the stop relays are deactivated!  ...
  • Page 61 OPERATING MODE 1       Button functions   Direction functions   Recommended Load selection= 0 Buzzer output activates together with relay 7 Latching programmable relays: 7, 19 - 61 -...
  • Page 62 OPERATING MODE 2       Button functions   Direction functions   Recommended Load selection= 0 Buzzer output activates together with relay 7 Latching programmable relays: 7, 19 - 62 -...
  • Page 63 OPERATING MODE 3   Button functions   Direction functions   Depending on Load Selection   Load select A (relay 16), B (relay 17), C (relay 18), D (relay 19) Load select A + direction functions Load select B + direction functions  ...
  • Page 64 OPERATING MODE 4       Button functions Recommended Load selection= 0   Latching programmable relays: 1-19 - 64 -...
  • Page 65 OPERATING MODE 5       Button functions Load select A/ relay bank 1 (relay 17 for indication) Button functions Load select B/ relay bank 2 (relay 18 for indication) Recommended Load selection= 2 Latching programmable relays: 1-19 Switch relay bank by pressing the right start button:  ...
  • Page 66 OPERATING MODE 6       Depending on transmitter Load selection Button functions   Direction functions   Load select A (relay 16), B (relay 17) Buzzer output activates together with relay 7 Latching programmable relays: 6, 7, 18, 19 - 66 -...
  • Page 67 OPERATING MODE 7       Depending on transmitter Load selection Button functions   Direction functions   Load select A (relay 5), B (relay 6) Buzzer output activates together with relay 7 Latching programmable relays: 7, 18 Relay 19 not in use - 67 -...

  • Page 68: Chapter 6: Load Select Modes

    Chapter 6: LOAD SELECT MODES CHAPTER 6: LOAD SELECT MODES   LOAD SELECT MODE   NOTE! Before starting to perform these settings, make sure that the stop relays are deactivated!   1. Make sure that the stop button is pressed.  ...
  • Page 69 LOAD SELECT MODE 0         LOAD SELECT MODE 1   - 69 -...
  • Page 70 LOAD SELECT MODE 2         LOAD SELECT MODE 3   - 70 -...
  • Page 71 LOAD SELECT MODE 4         LOAD SELECT MODE 5   - 71 -...
  • Page 72 LOAD SELECT MODE 6         LOAD SELECT MODE 7   The loads are selected in the PC program Settings manager. When you start the transmitter, you cannot switch loads. The LEDs on the transmitter do not indicate what load that is activated. - 72 -...

  • Page 73: Chapter 7: Battery Guide

    TG-TX-MNL6, TG-TX-MNR6 , TG-TX-MNP6 Charger plug in the back of the transmitter Charger plug in the back of the transmitter or in TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10 the Tele Radio 5 V DC charger unit   CHARGING TEMPERATURE TG-TX-MNL6, TG-TX-MNR6 , TG-TX-MNP6 0- 45°C/ 32-113 °F...
  • Page 74 CHARGE THE BATTERY   1. When approx. 10% of the battery capacity remains, the top LED lights red and the internal buzzer beeps 3 times.   2. Put the charger plug into the socket in the back of the transmitter. While charging, the top LED flashes red.
  • Page 75 BATTERY PRECAUTIONS   Observe the following general battery warnings:   As batteries contains flammable substances such as lithium or other organic solvents, they may cause heating, rupture or ignition.   Risk of explosion if battery is replaced with a battery of an incorrect type.  ...
  • Page 76 The Tele Radio AB products are covered by a guarantee/warranty against material, construction and manufacturing faults. During the guarantee/warranty period, Tele Radio AB may replace the product or faulty parts. Work under guarantee/warranty must be carried out by Tele Radio AB or by an authorized service centre specified by Tele Radio AB.

  • Page 77: Chapter 8: Certifications Chapter

    Chapter 8: CERTIFICATIONS CHAPTER CHAPTER 8: CERTIFICATIONS CHAPTER   FCC/IC   FCC STATEMENT   Statement for warning:   To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended.
  • Page 78 Chapter 8: CERTIFICATIONS CHAPTER The radio module in this product is labelled with its own FCC ID and IC number. The FCC ID and IC is not visible when the radio module is installed inside another device. Therefore, the outside of the device into which the module is installed must also display a label referring to the radio module.
  • Page 79 THE RADIO MODULE   Each radio module is specifically designed to match a Tele Radio product in terms of physical dimensions, connection points, voltage levels, signal interface etc. To use the radio modules in non Tele Radio products is not permitted. The radio modules are designed to interface directly to the main board of the receiver/transmitter unit.

  • Page 80: Receiver Labels

    RECEIVER LABELS   PRODUCT LABEL ON THE RECEIVER   You will find the product label on the outside of the enclosure of the receiver.       FCC / IC LABEL IN THE RECEIVER   The FCC/ IC label is placed on the radio module. The radio module is mounted inside the receiver.  ...

  • Page 81: Transmitter Labels

    TRANSMITTER LABELS   PRODUCT LABEL IN THE TRANSMITTER   You will find the product label in the back of the transmitter.       TG-TX-MNR6, TG-TX-MNP6         TG-TX-MDR10, TG-TX-MDP10   - 81 -...
  • Page 82 FCC/IC LABEL IN THE TRANSMITTER   The FCC/IC label is placed on the radio module. The radio module is mounted inside the transmitter.       D00005-06: TG-TX-MNR6, TG-TX-MDR10   D00005-09: TG-TX-MNP6, TG-TX-MDP10     - 82 -...

  • Page 83: Ec/Eea Declaration Of Conformity
