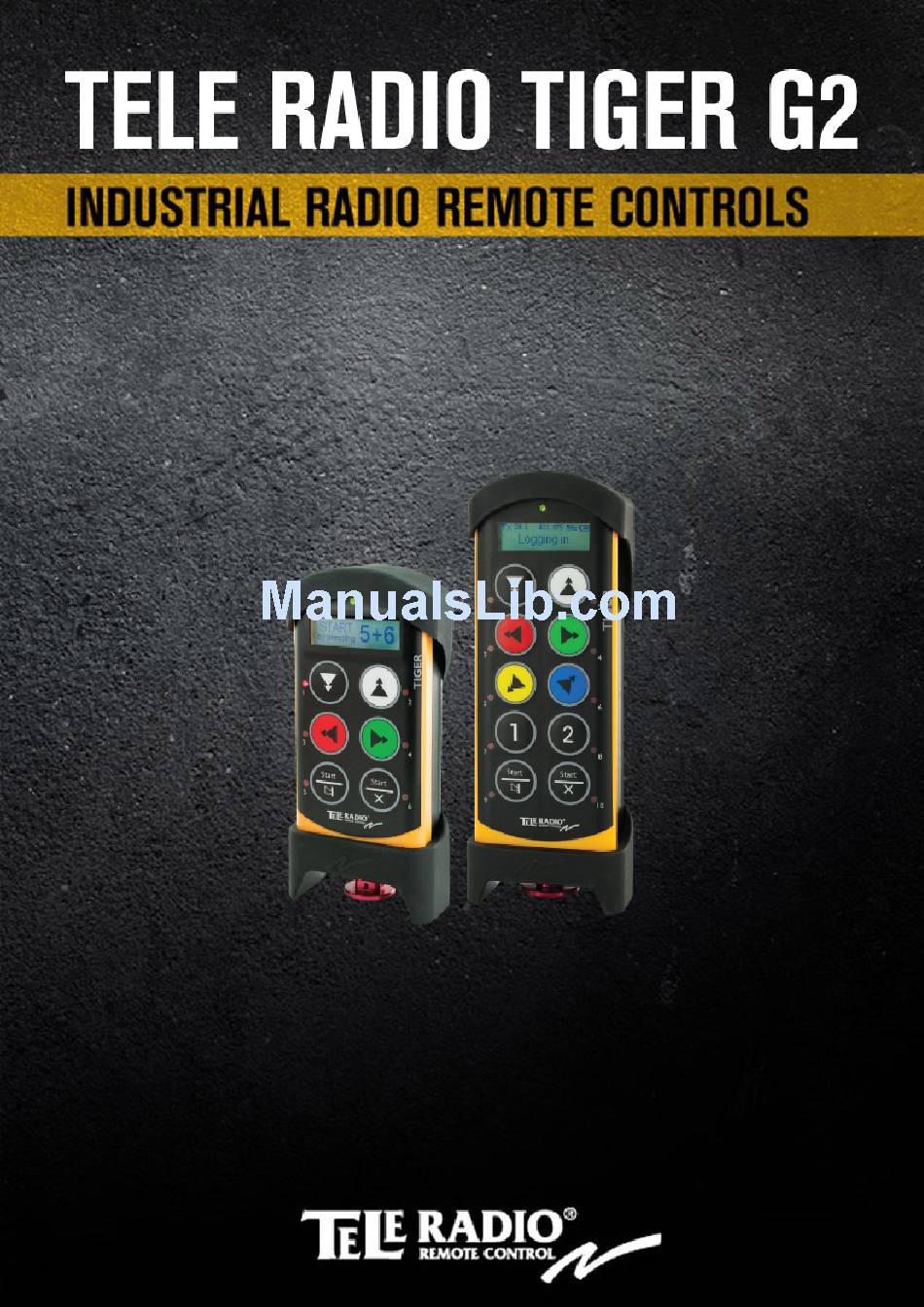

Tiger g2 industrial radio remote controls
Hide thumbs Also See for TG-TX-MNL6:

Advertisement


End user instructions
TG-TX-MNL6 (TG-T9-2), TG-TX-MNR6 (TG-T9-12), TG-TX-MNP6 (TG-T9-22), TG-TX-MDL10 (TG-T11-4),
TG-TX-MDR10 (TG-T11-14), TG-TX-MDP10 (TG-T11-24), TG-R4-1 (TG-RX-MNL7), TG-R4-3 (TG-RX-MNR7),
TG-R4-5 (TG-RX-MNP7), TG-R4-46 (TG-RX-MDL12), TG-R4-48 (TG-RX-MDR12), TG-R4-50 (TG-RX-MDP12),
TG-R4-6 (TG-RX-MDL17), TG-R4-8 (TG-RX-MDR17), TG-R4-10 (TG-RX-MDP17), TG-R4-26 (TG-RX-MNLCAN),
TG-R4-28 (TG-RX-MNRCAN), TG-R4-30 (TG-RX-MNPCAN), TG-R4-41 (TG-RX-MNLJ1939), TG-R4-43 (TG-RX-MNRJ1939),
TG-R4-45 (TG-RX-MNPJ1939, TG-R4-36 (TG-RX-MNLANA), TG-R4-38 (TG-RX-MNRANA), TG-R4-40 (TG-RX-MNPANA)
LANGUAGE: English (original)
IM-TG2-ED002-A11-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG-TX-MNL6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tele Radio TG-TX-MNL6

  • Page 1   End user instructions TG-TX-MNL6 (TG-T9-2), TG-TX-MNR6 (TG-T9-12), TG-TX-MNP6 (TG-T9-22), TG-TX-MDL10 (TG-T11-4), TG-TX-MDR10 (TG-T11-14), TG-TX-MDP10 (TG-T11-24), TG-R4-1 (TG-RX-MNL7), TG-R4-3 (TG-RX-MNR7), TG-R4-5 (TG-RX-MNP7), TG-R4-46 (TG-RX-MDL12), TG-R4-48 (TG-RX-MDR12), TG-R4-50 (TG-RX-MDP12), TG-R4-6 (TG-RX-MDL17), TG-R4-8 (TG-RX-MDR17), TG-R4-10 (TG-RX-MDP17), TG-R4-26 (TG-RX-MNLCAN), TG-R4-28 (TG-RX-MNRCAN), TG-R4-30 (TG-RX-MNPCAN), TG-R4-41 (TG-RX-MNLJ1939), TG-R4-43 (TG-RX-MNRJ1939),...
  • Page 2: Table Of Contents

    CONTENTS Chapter 1: CUSTOMER INFORMATION  3 Chapter 2: END USER INSTRUCTIONS  5 Start the transmitter in operating mode  9 Start the transmitter in operating mode with PIN codes  10 Start the transmitter in operating mode using RFID  10 Turn the transmitter off  11 Login/logout  11 Replace  12 Automatic shutdown  13 Frequencies & channels  13 RoHS and WEEE  18 Guarantee, service, repairs and maintenance  19 Chapter 3: EC/EEA DECLARATION OF CONFORMITY  20 - 2 -...
  • Page 3: Chapter 1: Customer Information

    Chapter 1: CUSTOMER INFORMATION CHAPTER 1: CUSTOMER INFORMATION   THANK YOU FOR PURCHASING A TELE RADIO AB PRODUCT   READ ALL INSTRUCTIONS AND WARNINGS CAREFULLY BEFORE USING  THE PRODUCTS.    These instructions are published by Tele Radio AB without any guarantee. The instructions may  be removed or revised by Tele Radio AB at any time and without further notice. Corrections and  additions will be added to the latest version of the instruction.    IMPORTANT! These instructions are directed towards end users. They can be printed and  handed to end users. The installation instructions that contain information on the installation and  configuration of the radio remote control unit on the machine are not intended to be passed on to  the end user. Only such information may be passed on to the end user that is needed to operate  the machine correctly by radio remote control.    Tele Radio AB products are covered by a guarantee/ warranty against material, construction or  manufacturing faults. During the guarantee/ warranty period, Tele Radio AB may replace the  product or faulty parts with new. Work under guarantee/ warranty must be carried out by Tele  Radio AB or by an authorized service center specified by Tele Radio AB. Contact your Tele  Radio AB representative if you need support or service.    ©Tele Radio AB, 2013 Datavägen 21 SE-436 36 ASKIM...
  • Page 4 Chapter 1: CUSTOMER INFORMATION       APPLICATION AREA FOR THE TIGER SYSTEM   The Tele Radio AB Tiger remote control systems are aimed for remote controlling of lifting or  mobile equipment where a high safety level is required.        AUTHORIZATION BY PIN CODE   To prevent from unauthorized users being able to start the transmitter and control the receiver,  you can enable PIN codes for start-up protection. 1-10 PIN codes can be stored in the TG-TX- MNL6, TG-TX-MNR6, TG-TX-MNP6 and TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10  transmitters.       STOP FUNCTION   The transmitters have a stop button that controls the 2 stop relays in the receiver. 2 safety  microcontrollers are supervising and controlling the stop relays. A valid signal must be provided  from both microcontrollers to activate the stop relays.  - 4 -...
  • Page 5: Chapter 2: End User Instructions

    Chapter 2: END USER INSTRUCTIONS CHAPTER 2: END USER INSTRUCTIONS       1. Rubber cover 9. Button 6** 2. Display 10. Button LEDs 3. Button 1 11. Stop button 4. Button 3 12. Button 7*** 5. Button 5* 13. Button 8*** 6. Top LED 14. Button 9**** 7. Button 2 15. Button 10***** 8. Button 4     * on TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6: left start button ** on TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6: right start button *** only on TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10 **** on TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10: left start button ***** on TG-TX-MDL10, TG-TX-MDR10, TG-TX-MDP10: right start button - 5 -...
  • Page 6 TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 6 x 2-step buttons TG-TX-MDL10, TG-TX-MDR10, TG-TX- 10 x 2-step buttons MDP10   BATTERY TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 Internal, rechargeable lithium-ion TG-TX-MDL10, TG-TX-MDR10, TG-TX- External, rechargeable lithium-ion MDP10   ON/OFF SWITCH TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 TG-TX-MDL10, TG-TX-MDR10, TG-TX- MDP10   DUPLEX COMMUNICATION TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6,       TG-TX-MDL10, TG-TX-MDR10, TG-TX- Possible MDP10,    MAX. NO OF REGISTERED RECEIVERS TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 TG-TX-MDL10, TG-TX-MDR10, TG-TX- MDP10   SIZE TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 160 x 76 x 37 mm./ 6.3 x 3 x 1.4 in. TG-TX-MDL10, TG-TX-MDR10, TG-TX- 210 x 76 x 37 mm./ 8.2 x 3 x 1.4 in. MDP10   WEIGHT TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6 295 g./ 0.6 lbs.
  • Page 7 TG-TX-MNR6, TG-TX-MDR10 25 kHz TG-TX-MNP6,   T G-TX-MDP10 5 MHz   OPERATING TIME (WITH CONTINUOUS USAGE TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6,  TG-TX-MDL10, TG-TX-MDR10, TG-TX- 16 h.  MDP10   IP CLASS TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6,     TG-TX-MDL10, TG-TX-MDR10, TG-TX- MDP10   SENSITIVITY TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6,       TG-TX-MDL10, TG-TX-MDR10, TG-TX- Better than -110 dBm MDP10   OPERATING TEMPERATURE TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6,     TG-TX-MDL10, TG-TX-MDR10, TG-TX- -20 - +55°C/ -4 - +130°F MDP10   NO. OF PIN CODES POSSIBLE TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6,  TG-TX-MDL10, TG-TX-MDR10, TG-TX- 10  MDP10  ...
  • Page 8   Product measurements   TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6   76 mm (3 in) 46 mm (1.8 in)     TG-TX-MDL10,TG-TX-MDR10, TG-TX-MDP10   79 mm (3.1 in) 51 mm (2 in) 41 mm (1.6 in)       - 8 -...
  • Page 9: Start The Transmitter In Operating Mode

    ON/OFF SWITCH   The TG-TX-MNL6, TG-TX-MNR6, TG-TX- MNP6 transmitter has an on/off switch on the  backside.The switch breaks the power supply  from the battery. When in position 0/off, the  transmitter cannot be started unless you  connect the charger plug. When the  transmitter is transported by airplane, the  on/off switch must be in 0/off position. The  switch should not be used as an on/off button  for the transmitter. To turn the transmitter off,  use the stop button.         START THE TRANSMITTER IN OPERATING MODE   1. Make sure that the stop button is pressed   2. Pull out the stop button. The top LED lights (green when the battery capacity is good, red when the battery capacity is  poor).   3. If PIN codes   a re used for authorization: Go to the next section.    4. WITHIN 3 MINUTES   F ROM PULLING OUT THE STOP BUTTON:  Press a button to select the receiver(s) that you want to operate. The receiver(s) that was selected in the last session will be automatically selected, which is ...
  • Page 10: Start The Transmitter In Operating Mode With Pin Codes

    START THE TRANSMITTER IN OPERATING MODE WITH PIN CODES   1. Make sure that the stop button is pressed.   2. Pull out the stop button. The top LED lights (green when the battery capacity is good, red when the battery capacity is  poor).   3. WITHIN 3 MINUTES : Enter the PIN code (4 digits) by pressing the buttons according to the  table.    FOR DIGIT: TG-TX-MNL6, PRESS BUTTON: 1 TG-TX-MDL10, PRESS BUTTON: 1   4. WITHIN 3 MINUTES   F ROM PULLING OUT THE STOP BUTTON:  Press a button to select the receiver(s) that you want to operate. The receiver(s) that was selected in the last session will be automatically selected, which is  indicated by the corresponding LED(s) that light red. If no receiver(s) has been selected, the  LEDs for all available receivers will flash red. If a receiver is selected, the LEDs next to the left  and the right start buttons flash red. If no receiver(s) are selected, only the LED next to the right  start button flashes red.    5. Press both start buttons at the same time. The buzzer beeps.   6. Release the start buttons. The buzzer stops beeping. The top LED flashes (green when the battery capacity is good, red ...
  • Page 11: Turn The Transmitter Off

    3. WITHIN 10 SECONDS: Press the RFID tag against the RFID antenna above the stop button  on the front of the transmitter. The buzzer beeps 2 times to confirm that an RFID tag has been  shown. The top LED lights (green when the battery capacity is good, red when the battery  capacity is poor).   4. WITHIN 3 MINUTES   F ROM PULLING OUT THE STOP BUTTON:  Press a button to select the receiver(s) that you want to operate. The receiver(s) that was selected in the last session will be automatically selected, which is  indicated by the corresponding LED(s) that light red. If no receiver(s) has been selected, the  LEDs for all available receivers will flash red. If a receiver is selected, the LEDs next to the left  and the right start buttons flash red. If no receiver(s) are selected, only the LED next to the right  start button flashes red.    5. Press both start buttons at the same time. The buzzer beeps.   6. Release the start buttons. The buzzer stops beeping. The top LED flashes (green when the battery capacity is good, red  when the battery capacity is poor).   7. When radio communication has been established and the RFID tag has been accepted, LED 1   lights (green when the battery capacity is good, red when the battery capacity is poor).  If   r adio communication is not established within 25 seconds, the transmitter turns off. If the RFID  tag is not accepted, the display shows an error message.       TURN THE TRANSMITTER OFF   1. Press the stop button. The transmitter turns off. All relays deactivate.       ...
  • Page 12: Replace

    NOTE! The transmitter must have established a radio session with one or more receivers.    2. Press the left start button. Keep pressed.   3. Press the stop button.   4. Release the left start button. The top LED lights red. The display shows [Logging out]. The transmitter turns off after logging out.        REPLACE   You can replace a registered transmitter with another transmitter without having access to the  receiver.    IMPORTANT! If the transmitter that needs to be replaced is registered in more than one receiver,  it will only be replaced in one receiver at a time. If you want to replace a transmitter in more than  one receiver, you need to perform a replacement for each receiver.    IMPORTANT! Do not perform this when the receiver is in a session with another transmitter. The  radio communication may become disturbed or broken.    NOTE! If the transmitter already have receivers registered, we recommend that you erase all  receivers from the transmitter before starting the replacement. The receiver will automatically be  stored in the same position as it was stored in the old transmitter. If this position is not available,  the replacement will not take place.      Replace a transmitter with a new transmitter   1. Make sure that the stop button is pressed.  ...
  • Page 13: Automatic Shutdown

    Press button count -1 count +1 go left go right   8.Press the left start button. The display shows [Replacing] while the process is ongoing. If the replacement fails, the display shows [FAILED].The transmitter turns off. If the replacement succeeds, the display shows [OK]. The transmitter turns off.       AUTOMATIC SHUTDOWN   Turning on automatic shutdown can save battery capacity by automatically turning the  transmitter off when no function has been activated for a set time.    Set the time for automatic shutdown   1. Start the transmitter.    2. Enter menu mode.    3. Go to [Auto Shutdown]. Select by pressing   t he left start button.   4. Select the time that you want for automatic shutdown: 0-255 minutes. If you want to turn off  automatic shutdown, select 0. Confirm by pressing   t he left start button.      ...
  • Page 14   6. Go to [Channel/Bank].    7. Go to the frequency table and select a channel. Confirm by pressing   t he left start button.       Frequency band 433MHz   CHANNEL FREQUENCY CHANNEL FREQUENCY 433.075 433.950 433.100 433.975 433.125 434.000 433.150 434.025 433.175 434.050 433.200 434.075 433.225 434.100 433.250 434.125 433.275 434.150 433.300 434.175 433.325 434.200 433.350 434.225 433.375 434.250...
  • Page 15 Frequency band 915 MHz   Frequency-hopping spread spectrum (FHSS) is a method of transmitting radio signals by rapidly  switching a carrier among many frequency channels, using a pseudorandom sequence known to  both transmitter and receiver. For further information about the frequencies used in this frequency  band and about frequency-hopping, please contact your representative.          Frequency band 2.4 GHz   CHANNEL FREQUENCY 2405 2410 2415 2420 2425 2430 2435 2440 2445 2450 2455 2460 2465 2470 2475 2480   - 15 -...
  • Page 16 Transmitter backside     1. Rubber cover 4. CE and product label 2. Stop button 5. Battery charger socket 3. Clip 6. On/off switch*   * only on TG-TX-MNL6, TG-TX-MNR6, TG-TX-MNP6               BATTERY INFORMATION   IMPORTANT! Electronics and batteries must be physically separated before disposal. Make  sure that electronics or batteries are not thrown in the household waste.    IMPORTANT! For transmitters with an on/off switch, the switch must be in on position when  charging.   TG-TX-MNL6, TG-TX-MNR6 , TG- TG-TX-MDL10, TG-TX-MDR10,    TX-MNP6                                                  ...
  • Page 17 Charge the battery   1.When approx. 10% of the battery capacity  remains, the top LED lights red and the internal  buzzer beeps 3 times.    2. Put the charger plug into the socket in the  back of the transmitter. While charging, the top  LED flashes red.    3.The external battery can also be charged in a  Tele Radio AB charger unit .     4. When fully charged, the top LED  lights green.     - 17 -...
  • Page 18: Rohs And Weee

    NOTE! For lithium-ion batteries, overcharging is not a problem.   L ithium-ion batteries do not need to be fully discharged  before being recharged. Charging the battery before fully discharged will not cause premature loss of function. Lithium- ion batteries are designed for operating environments from 0ºC to 60ºC/ 32ºF to 140ºF. Note that the environmental  temperature and the operating temperature are not necessarily the same. The higher the temperatures, the faster the  discharge. When you do not intend to use the transmitter for a longer period of time, we recommend that you remove the  battery from the transmitter. The transmitter uses current even when being turned off. Leaving the battery in the  transmitter may affect the battery life span. Improper long term storage of lithium-ion batteries can reduce their effective  life. New lithium-ion batteries should be stored in a location with ambient temperatures between 20ºC to 38ºC/ 70º to  100ºF   a t a 40% state of charge or lower. After use, batteries can be stored at higher charge levels. After a longer period  of storage, we recommend recharging of batteries   p rior to being placed back into service or use. Batteries stored in cold  environments may need to be stabilized within normal temperature ranges prior to recharging and use. Batteries can be  replaced when they are no longer capable of holding 80% of their original capacity. Users should consider how frequently  an old battery is recharged compared to when it was new. We recommend that you check with your representative if you  need further details.   BATTERY PRECAUTIONS   Observe the following general battery warnings:   As batteries contains flammable substances such as lithium or other organic solvents,  they may cause heating, rupture or ignition.   Risk of explosion if battery is replaced with a battery of an incorrect type.   Do not short circuit, disassemble, deform or heat batteries.   Never try to charge a visibly damaged or frozen battery.   Keep batteries out of reach of small children. Should a child swallow a battery, consult a  physician immediately.   Avoid direct soldering to batteries.   When discarding batteries, insulate the + and -  ...
  • Page 19: Guarantee, Service, Repairs And Maintenance

    REMOVAL OF INTERNAL BATTERY                     I MPORTANT! Electronics and batteries must be physically separated before disposal. Make  sure that electronics or batteries are not thrown in the household waste.    1. Remove the clip. Remove the rubber cover by hand. Use a screwdriver to unscrew the 2  screws.  2. Use a screwdriver to unscrew the 4 screws. Remove the front encapsulation by hand. Turn the transmitter around, so that the buttons face up.  3. Use a screwdriver to unscrew the screw in the middle of the transmitter. Lift the circuit board  up by hand.  4. The battery pack is placed behind the circuit board. Remove the battery by hand.        GUARANTEE, SERVICE, REPAIRS AND MAINTENANCE   The Tele Radio AB products are covered by a guarantee/warranty against material, construction  and manufacturing faults. During the guarantee/warranty period, Tele Radio AB may replace the  product or faulty parts. Work under guarantee/warranty must be carried out by Tele Radio AB or  by an authorized service centre specified by Tele Radio AB.      This is not covered by the guarantee/ warranty:   ...
  • Page 20: Chapter 3: Ec/Eea Declaration Of Conformity

    Chapter 3: EC/EEA DECLARATION OF CONFORMITY CHAPTER 3: EC/EEA DECLARATION OF CONFORMITY - 20 -...
  • Page 21 Chapter 3: EC/EEA DECLARATION OF CONFORMITY   - 21 -...
  • Page 22  ...
