eBOX671A Series user's Manual
3.3.6

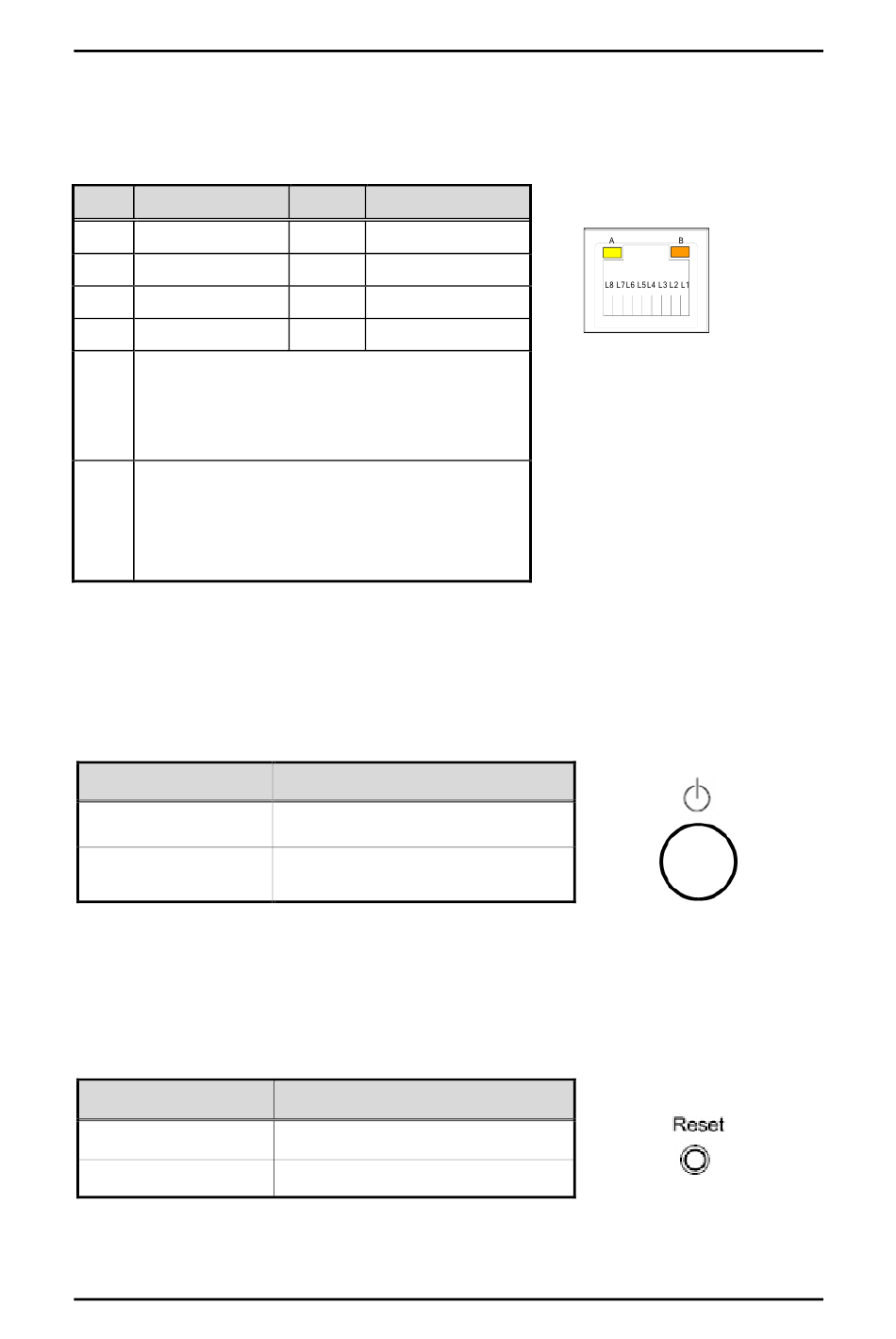

Ethernet Connector (LAN1~LAN4)

The board has four RJ-45 Gbe ports connectors, LAN1 is designed by Intel i219LM and LAN2
to LAN4 are Intel i210-IT.
Pins LAN Signal
L1 MDI0+
L2 MDI0-
L3 MDI1+
L4 MDI1-
Activity link LED(Yellow)
OFF: No link
A
Blinking: Link established; data activity
detected
Speed LED
OFF: 10Mbps data rate
B
Green: 100Mbps data rate
Orange: 1GMbps data rate
3.3.7

ATX Power On/Off (SW1)

The ATX power button is on the I/O side. It can allow users to control eBOX671A power on/off.
Functions
On
Off
3.3.8

ATX Power on/off (SW2)

The Reset button can allow users to reset eBOX671A system.
Functions
On
Off
26
Pins LAN Signal
L5 MDI2+
L6 MDI2-
L7 MDI3+
L8 MDI3-
Descriptions
Turn on/off system
Keep system status
Descriptions
Reset system
Keep system status
Jumper & Connector Settings
