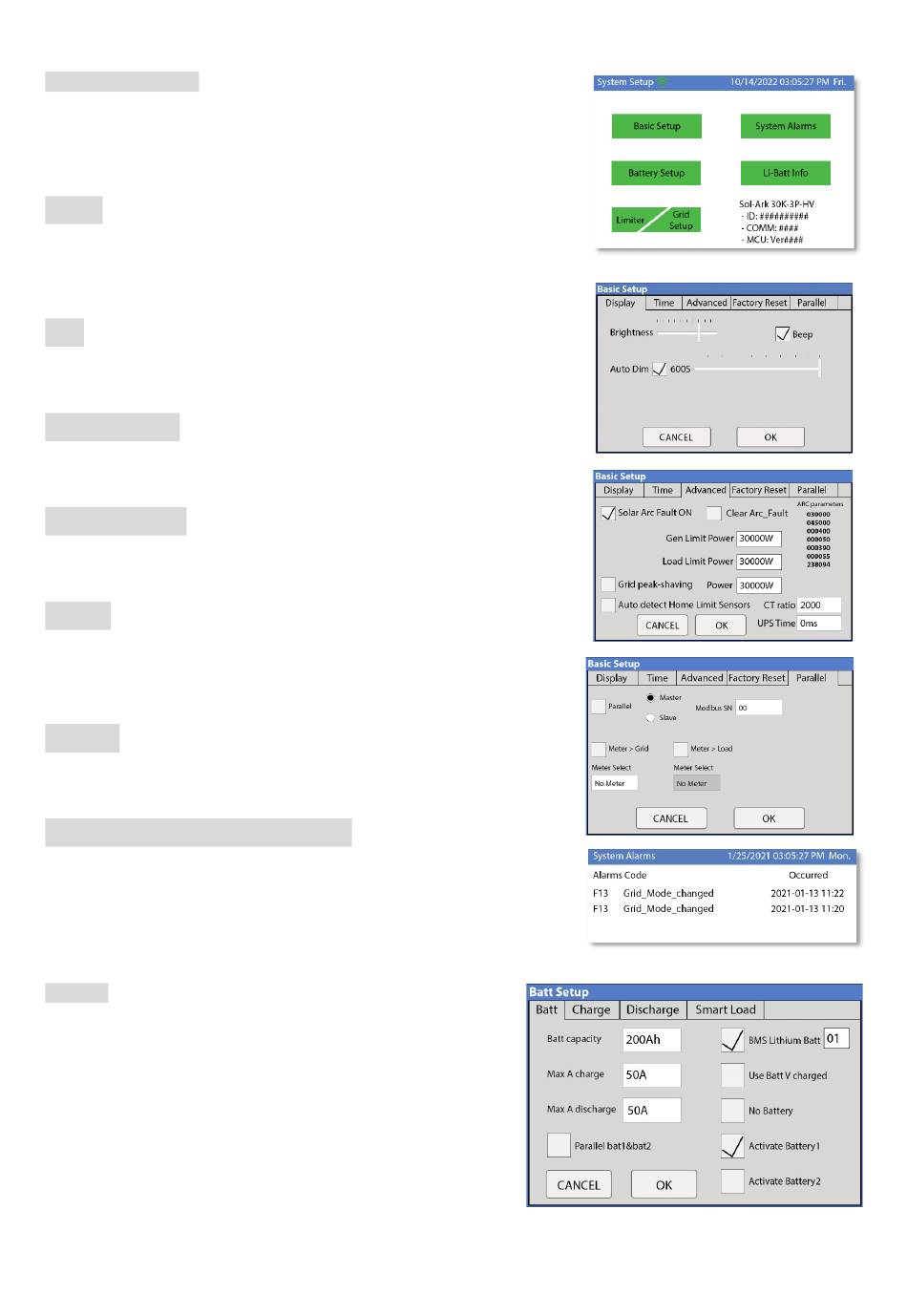

System Setup Menu
A. ID = LCD serial #. Sol-Ark Technical Support uses the Wi-Fi serial #.
B. COMM = LCD software version
C. MCU = Inverter software version
3. Basic Setup
Display
A. Brightness adjustment
B. Auto dim (must be enabled for the warranty to cover the LCD screen)
C. Enable/disable BEEP
Time
A. Set the date and time for the system
B. Set up to three (3) seasons for Time of Use to follow
Load Limit Power
Set the total AC Output of the Sol-Ark; curtails excess power. The default
value is always the Maximum output of the Inverter.
Grid Peak Shaving
Set the Sol-Ark's threshold to begin contributing power to keep the power
drawn from the grid below the threshold.
CT Ratio
Set the CT ratio; the Default value is 6000. Please DO NOT change this
value unless you speak with support; 3rd party CT sensors require our
permission not to void the warranty.
UPS Time
Set the UPS transfer time to the chosen value; any value below 5ms will
default to a 5ms transfer time.
Parallel (connecting multiple systems) *
Please contact Sol-Ark technical support for parallel operation details.
3. System Alarms
A.
Lists all recorded System alarms in chronological order.
B.
Use this for Solar Engineering to help with troubleshooting.
4. Battery Setup
Battery
Batt Capacity: Enter the battery bank's size connected to the
system.
NOTE,
Seris = add Voltage | Parallel = add Amp-Hours
Max A Charge: set the max charge rate for the batteries (This
also sets the PV → Battery charge rate).
Max A Discharge: set the max discharge for the battery bank (In
off- grid mode, the battery bank will discharge 120% of this value
for 10 seconds before the Inverter shuts down to prevent battery
damage).
Parallel bat1&bat2: Select this to parallel the two battery terminals of the Sol-Ark 30K-3P-208V.
BMS Lithium Batt: Closed-Loop Communications and ensure correct Serial Number (01,02, etc.) for the battery.
