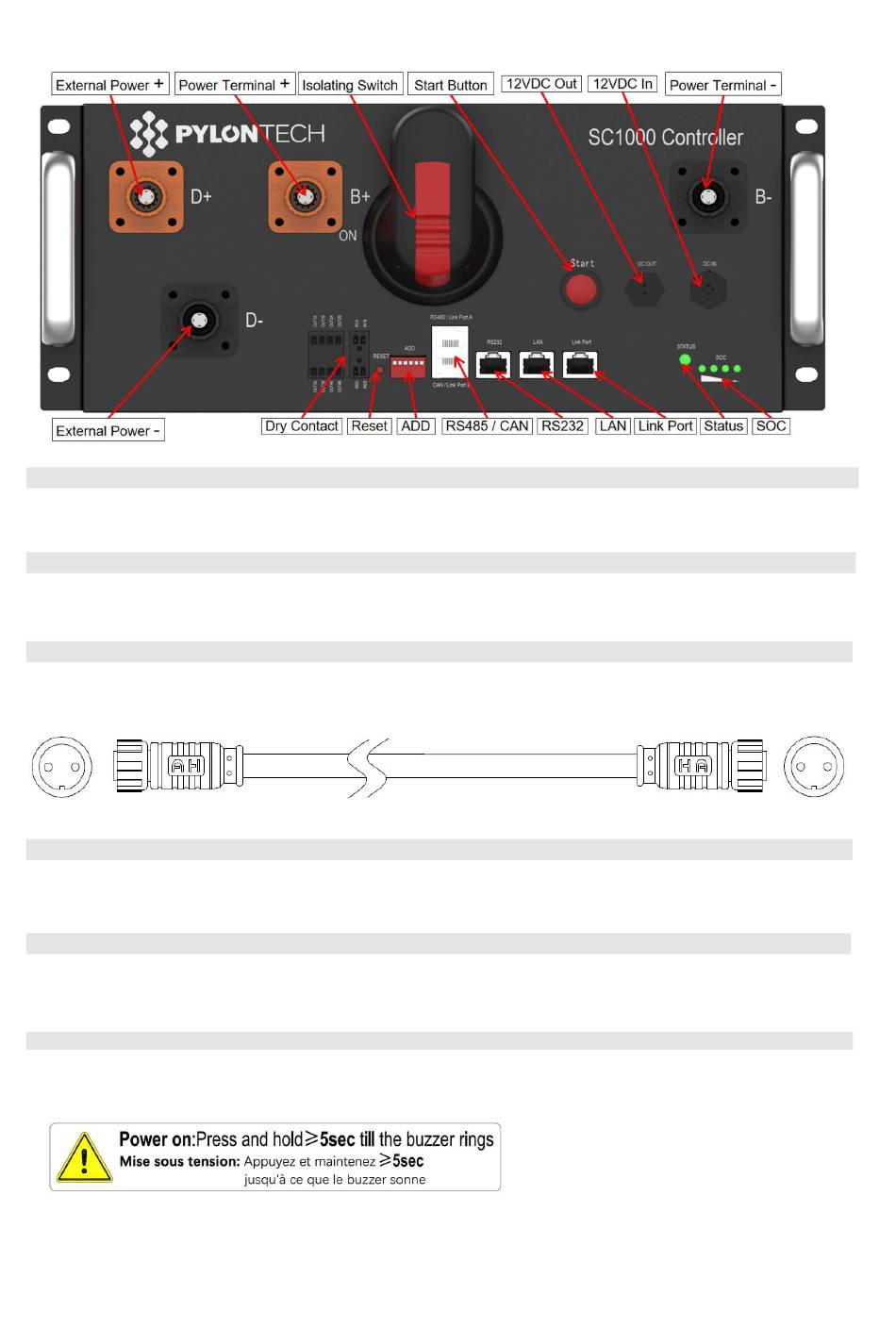

2.4.5.2 Control Module (SC1000-200J-C) Front Interface

External Pow er Term in als D+/D -

Connect battery system with Inverter.

Power Terminals B+/B-

Connect battery power cables in series.

12VDC Out

Power supply for MBMS, connects with MBMS' 12VDC IN.

12VDC In

In: Back-up 12VDC power supply port.

Isolating Sw itch

Controls the BMS power supply and high voltage DC power output.

Start B utton

Start function: Keep pressing more than 5 seconds until the buzzer rings, to turn on the control

module.

Black start function: If long press (>10 seconds) the start button 30 seconds AFTER the control

module powers on. The "STATUS" LED will turn green which means black start function is

enabled, and relay will close and output for 10 minutes.
