3. System Installation and Operation

3.1 Outdoor battery cabinet layout

3.1.1

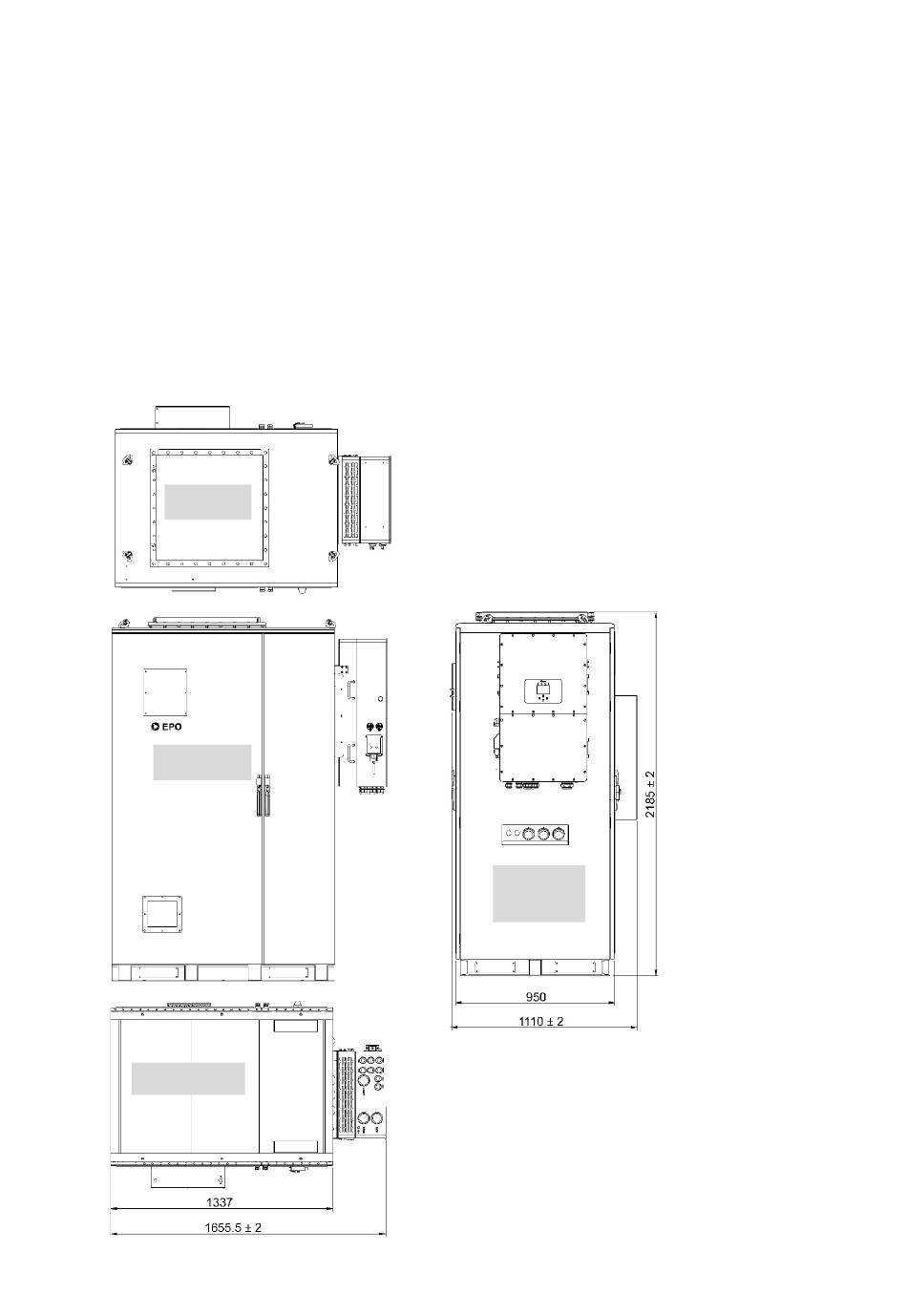

External Dimensions

External dimensions are the same for both the 30 kW and 60 kW systems:
- Optim US-Am-M1C-A-30kW/xx-US-yy (10 batteries per one string, 1~4 strings parallel; where m =
1, 2, 3 or 4, xx=47, 94, 142,189, yy = 01, 02, 03, 04, or 05)
- Optim US-Am-M1C-A-30kW/xx-US-yy (11~14 batteries per one string, 1~2 strings parallel; where
m = 1, or 2; xx = 52, 56, 61, 66, 104, 113, 123 or 132; yy = 01, 02, 03, 04, or 05)
-
Optim US-Am-M1C-A-60kW/xx-US-yy (11~14 batteries per one string, 1~2 strings parallel; where
m=1 or 2, xx= 66, 71, 75, 80, 85, 90, 94, 99, 132, 142, 151, 161, 170, 180, 189, or 198; yy = 01, 02,
03, 04, or 05)
Top View
Front View
Bottom View
Right Side
View
(Unit: mm)
35
