Installation Environment
The following requirements must be met for installation:
•
The IP rating of the outdoor cabinet is IP55, which meets the normal outdoor placement
environment. And the standard anti-corrosion grade is C3H, so it is necessary to pay attention to
stay away from high salt spray, high corrosion environment, away from heat sources and
flammable and explosive materials.
•
The installation ground must be able to bear the total weight of the cabinet.
•
The foundation must ensure the stability and reliability of the installation position of the outdoor
battery cabinet.
•
The installation environment should be as far away from the living area as possible. If there is a
large flow of people in the installation site, it is recommended to install a fence.
•
The ambient temperature should be guaranteed between -20-60°C to ensure that the outdoor
integrated cabinet can operate normally.
3.1.5
Installation Clearance
1. The external dimension of the system is 1337 x 2195 x 1125mm (width× height × depth), referring to
section 3.1.1 for details. And the installation site must have enough space to place the equipment.

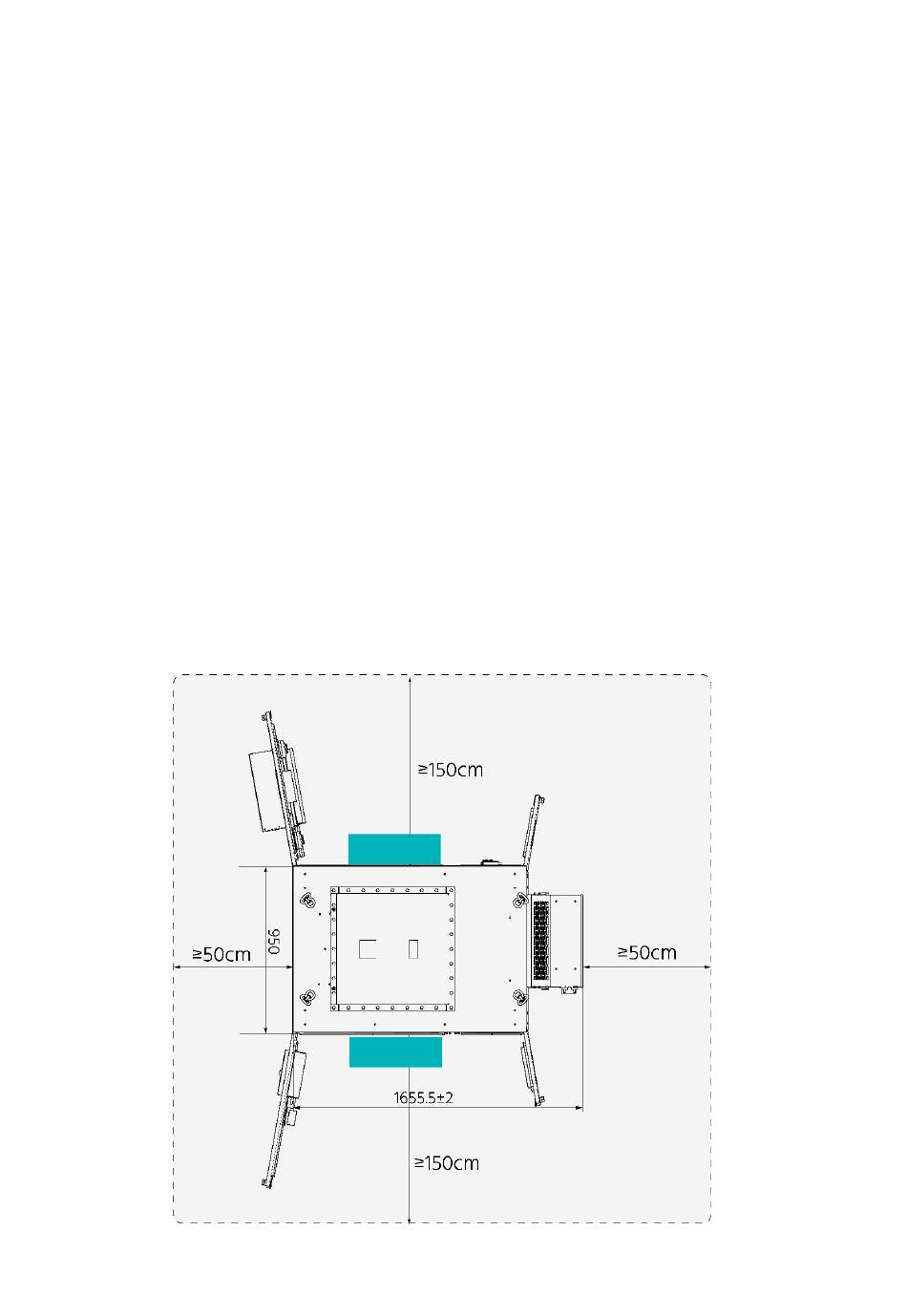

2. The installation space of one system with one cabinet is shown in the figure below. It is
recommended to reserve the space more than 150 cm between the cabinet front/back door and
the wall or the peripheral equipment for maintenance. For the space between the left/right side of
the cabinet and wall or the peripheral equipment, it is recommended to reserve more than 50 cm.
Back Door
Front Door
(Unit: mm)
