2.3.5

Wiring Diagrams

NOTE, Please see the Annex 1: Diagrams of 30K-3P-208V Inverter and Annex 2: Diagrams of 60K-3P-480V
Inverter for detailed wiring diagrams. Those Wiring Diagrams are examples of common-use cases for Sol-Ark
inverters.
Sol-Ark does not provide custom diagrams; however, you may contact support@sol-ark.com for any questions
about existing Wiring Diagrams.

2.4 Introduction of the Battery System

2.4.1

Product Introduction

PowerCube-M1-C, a high voltage battery storage system based on lithium iron phosphate battery, is one of
the new energy storage products developed and produced by Pylontech. It can be used to provide reliable
power for various types of equipment and systems. PowerCube-M1-C is especially suitable for application
scene of high-power output, limited installation space, restricted load-bearing and long cycle life.
2.4.2

Accessories Package list of the Battery System

2.4.2.1 Accessories Package list for 10 pcs of M1C battery modules [complied with1pc of 30K-3P-208V

Inverter (30KW)]) (For one string)

NOTE: If for two strings parallel, the quantity shall x(multiply) 2
A. Internal Cable Kits
Item Description
(1) M1C Power Cable + (Battery Module and Main Controller Serial
Connection) (0.19m)
(2) M1C Power Cable - (Battery Module and Main Controller Serial
Connection) (0.32m)
(3) M1C Power Cable (Battery Module Upper and Lower Serial
Connection) (0.24m)
(4) M1C Power Cable (Battery Module Left and Right rack Serial) (0.35m)
(5) Battery Cascade Communication Cable (0.18m)
(6) Battery Cascade Communication Cable (0.5m)
(7) M6 Screw
(8) M6L16 nail
B. External Cable Kits
(1) AC Power Cable (Australia Standard)
(2) M1C- External Power Cable+(5m)
(3) M1C- External Power Cable-(5m)
(4) External Battery CAN Communication Cable (3.5m)
NOTE

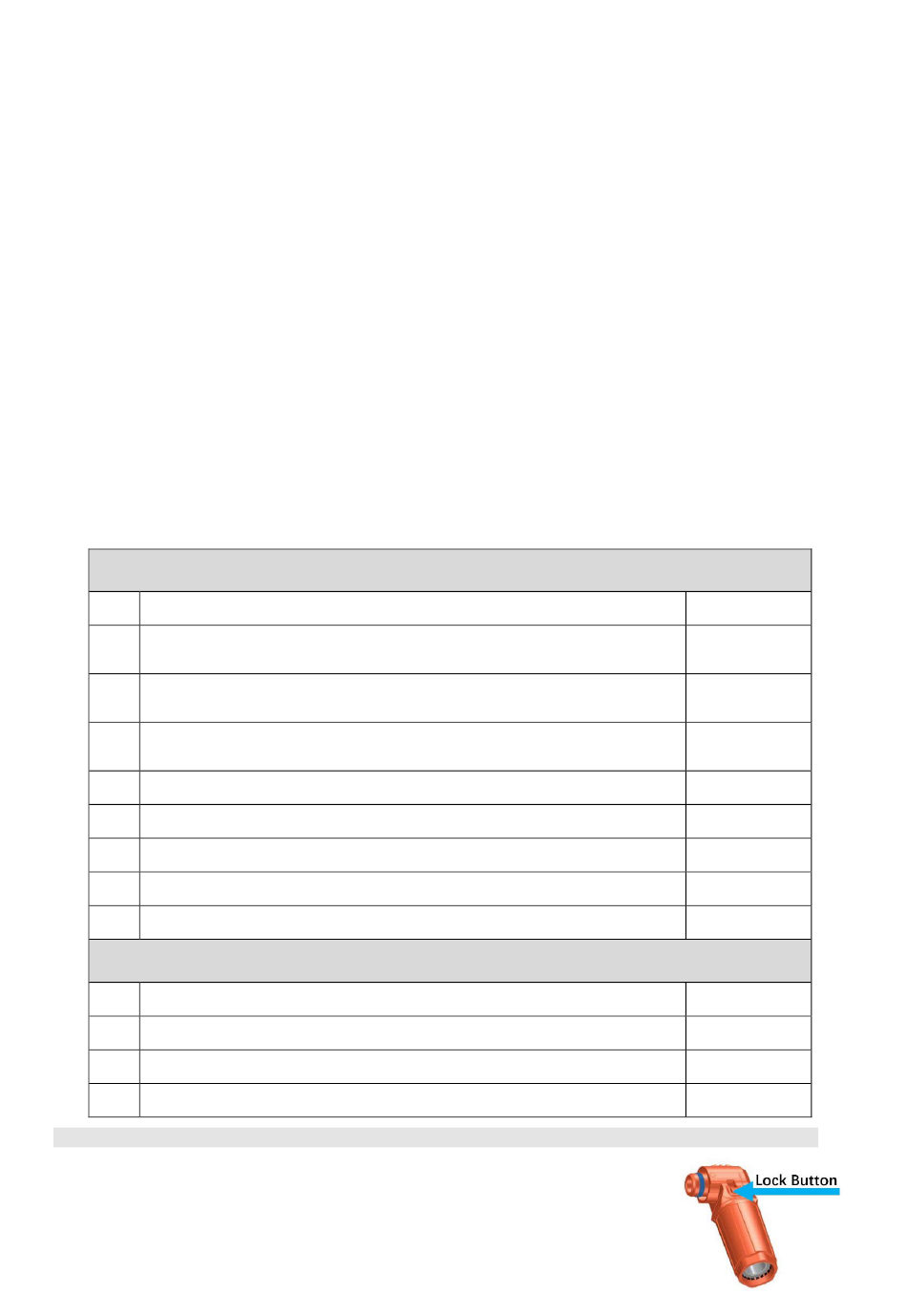

Power cable uses water-proof connectors. Keep pressing this Lock
Button during pulling out the power plug.
21
QTY.
1
1
9
1
10
1
48
48
1
1
1
1
