emergency stop pins that cut off the RSD power supply when triggered, thus stopping the inverter AC
output.
Pins 7 and 8 in the sensor pinboard 2 provide the 12V / 100mA signal power lost when the Sol-Ark shuts
down using the front button.
Rapid Shutdown: TIGO TS4-A-O | TIGO TS4-A-F | TIGO TS4-O | TIGO TS4-O-DUO | APsmart RSD S-PLC / RSD-D
PARALLEL SYSTEMS: Emergency Stop should be connected to the Master with address 01 and will
initiate emergency stop for all paralleled systems from the one button.
•
The Built-in 12V power supply in the user area of the Sol-Ark (Pins 7 and 8) is rated for
100mA (1.2W).
L'alimentation 12 V intégrée dans la zone utilisateur du Sol-Ark (broches 7 et 8) est
évaluée à 100 mA (1,2 W).
•
Transmitter fits inside the user area of the Sol-Ark 30K-3P-208V but can cause
interference (sometimes requires placing it outside of the user area).
L'émetteur s'insère dans la zone utilisateur du Sol-Ark 30K-3P-208V mais peut
provoquer des interférences (il faut parfois le placer en dehors de la zone
utilisateur).
•
TIGO Optimizers are compatible with the Sol-Ark 30K-3P-208V
12V Power supply in the Sol-Ark user area to Power the Tigo Optimizer TX transmitter).
Les optimiseurs TIGO sont compatibles avec le Sol-Ark 30K-3P-208V (n'utilisez pas
l'alimentation 12 V intégrée dans la zone utilisateur Sol-Ark pour alimenter l'émetteur
NOTE: If you are unsure whether the transmitter power supply is compatible with pins 7 & 8 of the inverter,
contact the RSD manufacturer.
3.2.6 Powering-Up & Testing the Sol-Ark 30K-3P-208V.
Warning: Verify Grid, Battery, PV voltage BEFORE turning on the unit
Avertissement: Vérifiez la tension du réseau, de la batterie et du PV AVANT d'allumer l'unité
(PENDANT QUE L'UNITÉ EST ÉTEINTE).
Turn ON with one of three sources of power:
1) PV 2) Grid
1. Check the voltage on each PV input circuit
A. It should be no higher than 500Voc Temp. corrected.
B. DO NOT connect PV+ OR PV- to GND
C. Verify polarity (backward polarity shows 0V)
2. Check Grid Input Voltage
A. Measure L1, L2, & L3 to Neutral. Ensure 120VAC.
)
3) ON/OFF Battery

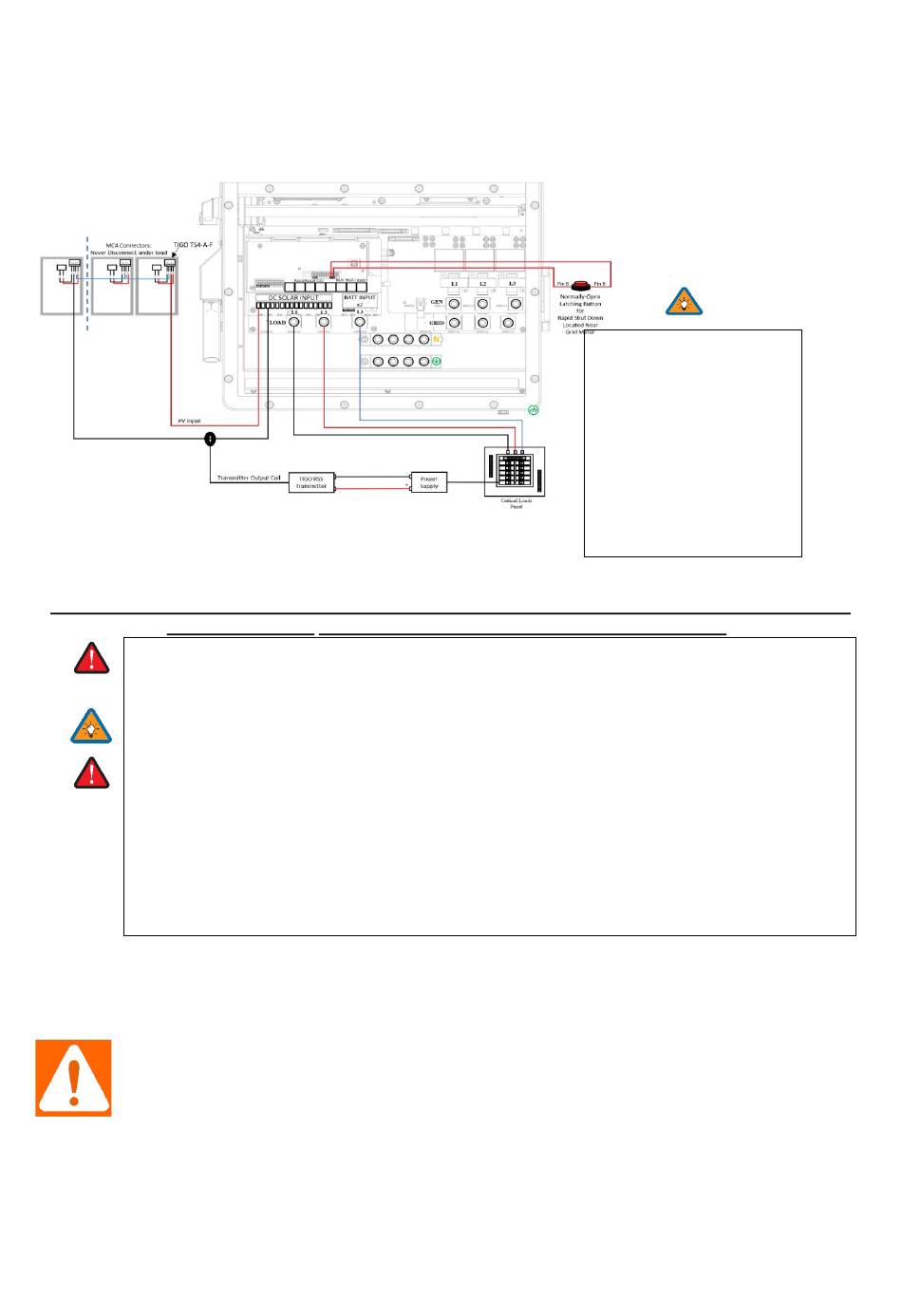

This diagram illustrates how
to integrate the Tigo TS4-A-
F and the corresponding
Tigo RSS Transmitter with
the Sol-Ark 30K-3P-N.
Please refer to your RSD
manufacturer's website for
appropriate hardware needs
and compatibility.
47
(Do not use the built in
(WHILE THE UNIT IS OFF).
