EVERY 6 MONTHS MAINTENANCE

Clamping filter inspection/replacement

The clamping filter must be inspected once a month, and replaced every 6 months. The clamping filter is located on the left
side.
Part required:
• Filter element : 1001884R00.
• Damp cotton cloth.
Caution: wear PPE (disposable rubber gloves, anti-static coverall, FFP3 respiratory protection, anti-static
safety shoes) .
Procedure:
1. Deactivate the clamping system.

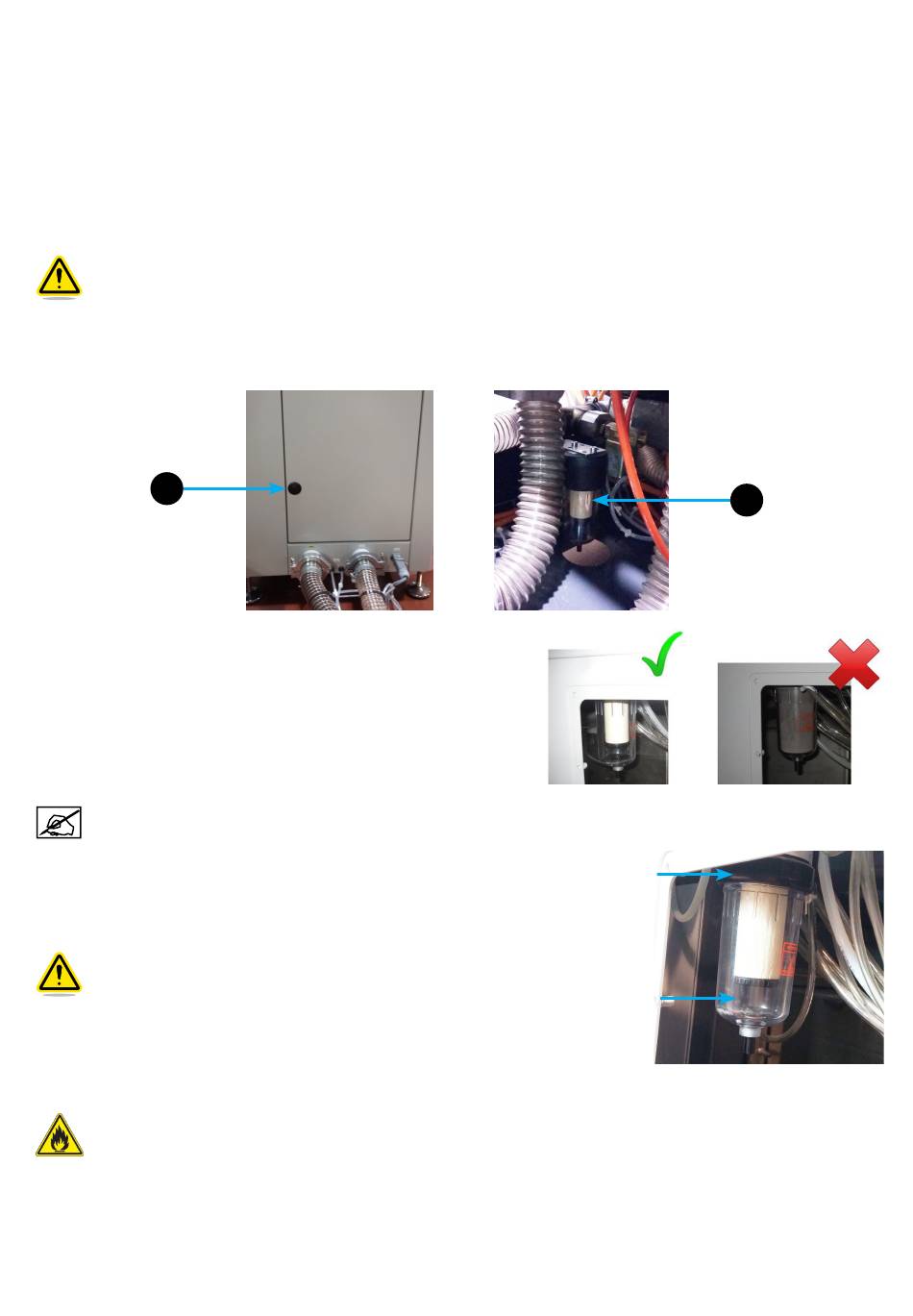

2. Open the left side door of the control cabinet (1) and inspect the clamping filter (2).
1
3. During inspecting:
• If metal powder is covering large surface of the filter element or is
found at the bottom of the filter guard, then proceed to the next
step.
• If the inspection does not reveal any presence of powder, then fit
back the cover plate removed previously.
The following steps must be performed if the filter element contains excessive metal powder (see step 2)
or according to the recommended maintenance interval .
4. Remove the filter guard from the filter cap by unscrewing it.
Caution : Wear disposable rubber gloves and leather
gloves during the filter guard removal.
5. Remove the filter element. Dispose of it in accordance with all local/regional/national, state and federal regulations.
WARNING : FLAMMABLE POWDERS .
PLACE THE USED FILTER ELEMENT IN A CLOSED METALLIC CONTAINER IN A ROOM WITH FIRE DETECTION .
6. Clean the filter guard with the use of a damp cotton cloth.
7. Install the new filter element.
8. Install the filter guard.
9. Fit back the cover plate previously removed.
