Non-mobile stand
Levelling the stand
a
The unit is positioned on the stand and is standing at its intended installa-
tion surface.
1. Place 2 spirit levels on the unit: 1 spirit level along the right edge of the unit
and 1 spirit level along the front edge.
2. Make the unit level on the right by turning the front right and back right feet
of the stand.
3. Make the unit level on the left by turning the front left and back left feet of
the stand.
Securing the stand

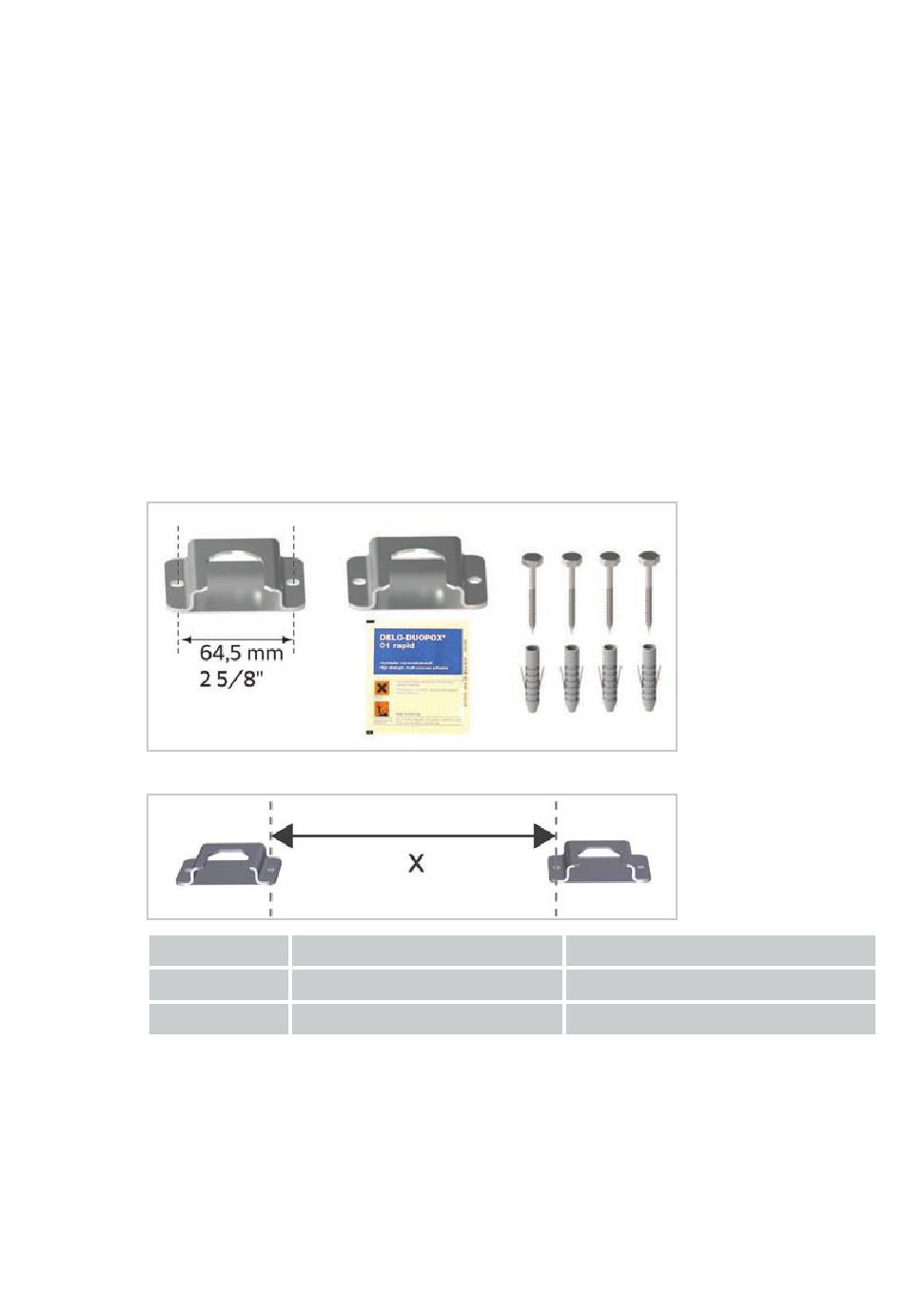

Secure the stand against slipping with the mounting kit.
The mounting kit including the special label, screws and dowels is not included
in the delivery of the unit and can be ordered separately from the manufacturer
under article number 8700.0317.
Adhere to the clearances of the foot locks for the relevant unit sizes:
x [mm]
x [inch]
a
The foot locking mechanisms and the mounting kit are ready for use.
1. Fix the foot locks to the floor for the front feet with the special adhesive or
screws and anchors. Make sure that both foot locks with the openings show
towards the front.
